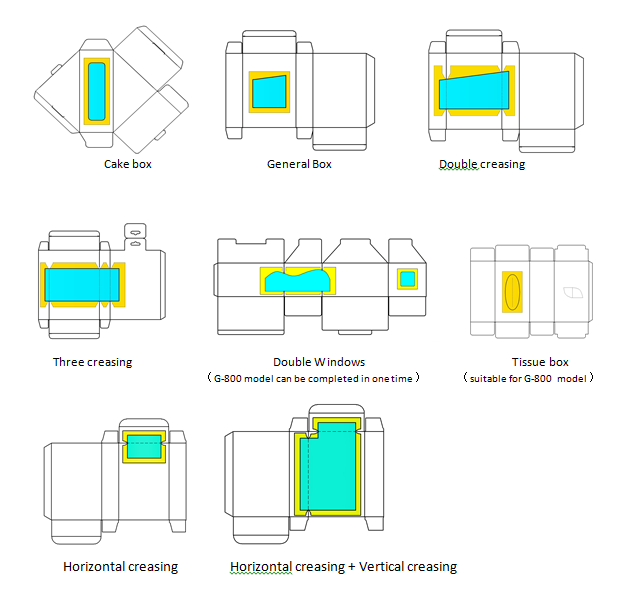

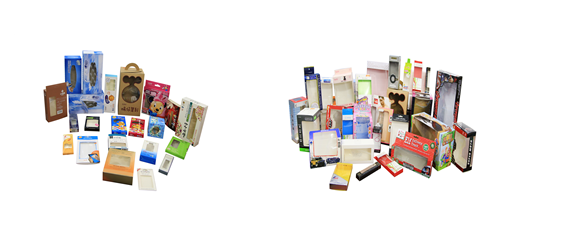

Producible Box Sample
Major Function
Horizontal knife +Hob cutting film + double film feeding+Double group film applicator
10 servo motors + Full digital-control
100 groups of order saving and reading
One key automatic adjustment of V-punching mould
Paper receiving stepper with batch counting
Paper vacuum adsorption transport
Double sheet / empty sheet gluing rising automatically
Film with creasing and cutting angle function
Follow lable of film printing surface
Film with punching holes
Film with transverse creasing (optional)
Film constant temperature leveling system (optional)
Tissue box film middle cut (optional)
Specifications

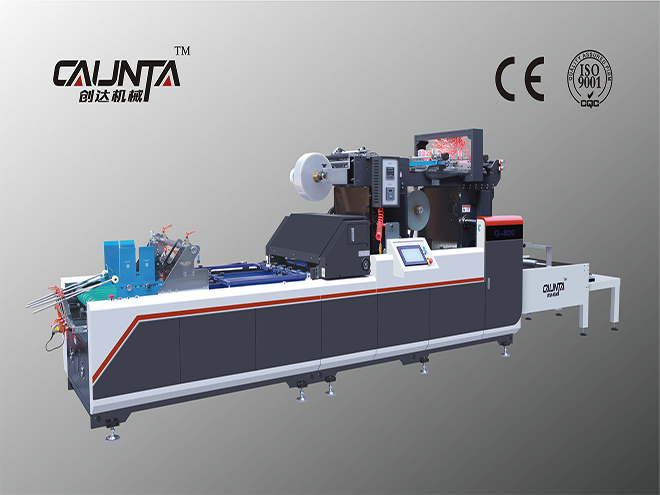

Model parameter | G-800 |
Max. Paper Size | 800X800mm |
Min. Paper Size | 110X110mm |
Paper Weight | Kraft Paper：150-1200g/㎡ White Cardboard：230-1200g/㎡ Corrugated Paper：≤3mm |
Max. Film Size | W 400XL430mm |
Min. Film Size | W30XL65mm |
Max. Film Unwinding Diameter | Hob： 400mm |
Horizontal Knife： 450mm | |
Film Thickness | Hob： CPE/PE:0.05-0.25mm PVC:0.05-0.2mm APET/PET:0.03-0.2mm |
Horizontal Knife：CPE/PE:0.1-0.3mm PVC:0.08-0.3mm APET/PET:0.06-0.3mm | |
Film Precision | Hob： Transverse：±0.5mm Longitudinal：±2mm |
Horizontal Knife： Transverse：±0.2mm Longitudinal：±0.5mm | |
Maximum Speed | Hob： Paper L≤400mm：20000pcs/h Paper L＞400mm：10000pcs/h |
Horizontal Knife： 10000pcs/h | |
Quantity of Servo Motor | 10 Sets |
Quantity of Stepping Motor | Driving Parts： Two V-shaped stamping moulds with X-direction automatic adjustment，4 sets of Y-direction automatic adjustment, Automatic paper receiving 1 set |
V Quantity of V-shaped Punching Mould | 4Kits |
Quantity of Film Creasing Wheels | 2Kits |
Power | 380/415V 50/60Hz 13KW |
Overall Dimension | L670×W152×H200cm |
Overall Weight | 3100kg |
