3. This machine can produce 1-3 layers normal mask, thickness could be width some range, and the nose belt length could be automatic set, wastage is low and easy operation.
Specification

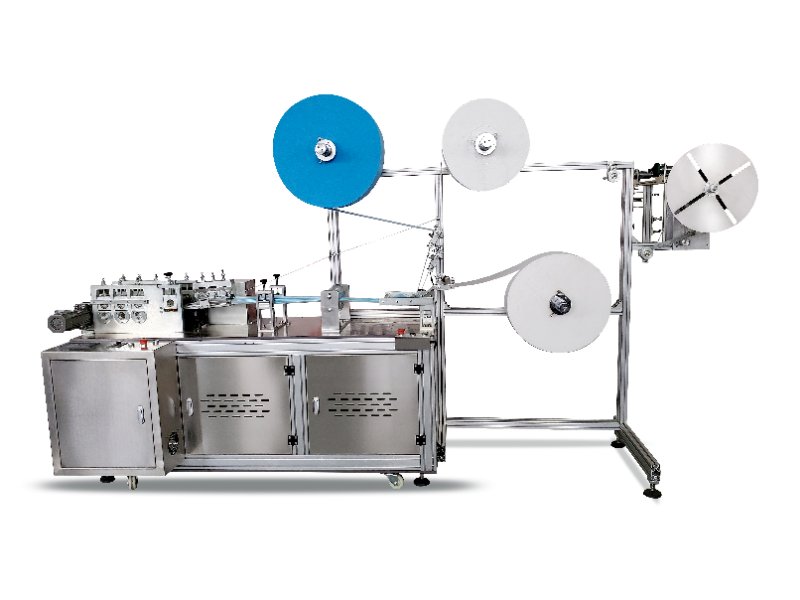

Model | HH-175 Forming machine |
Machine frame | Aluminum |
Mask specification | 175mm X 95mm |
Mask layer | 1- 3 layers |
Speed | 150-200 Piece/Min |
Voltage/Power | 220V/3kw |
Size（L×W×H） | 3.5×0.9×1.8m |
Machine Weight | 550KG |
Material Specification
Material | Roller width | Thickness | Roller OD | Roller ID | |
Outside layer | Spunbond nonwoven | 175mm | 30GSM | 600mm | 76mm |
Middle layer | PP melt-blown nonwoven | 175mm | 25GSM | 600mm | 76mm |
Inner layer | Spunbond nonwoven | 195mm | 40GSM | 600mm | 76mm |
Nose ribbon | Galvanized wire + PP or PE | 3mm | 1mm | 400mm | 76mm |
Samples

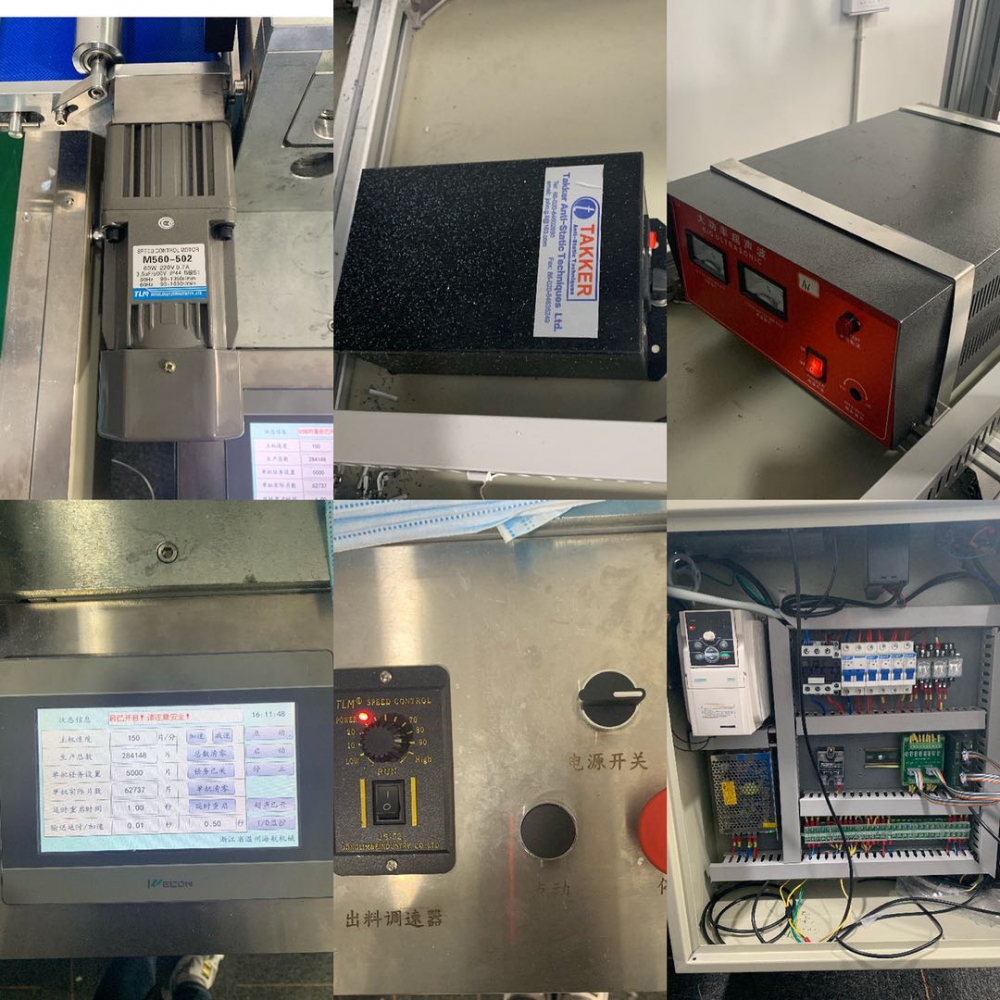

Configuration
No. | CONFIGURATION | BRAND |
1 | TOUCH SCREEN | GUMEI |
2 | SPEED CONTROL | TLM |
3 | POWER SWITCH | DELIXI |
4 | SPEED CONTROL MOTOR | TLM |
5 | ANTI-STATIC TECHNIQUES | TAKKER |
6 | ULTRASONIC | MADE IN CHINA |
7 | PHOTO ELECTRONIC DETECTION SENSOR | LEUZE |
8 | PLC | SIFANG |
9 | CHAIN | SANHU |
