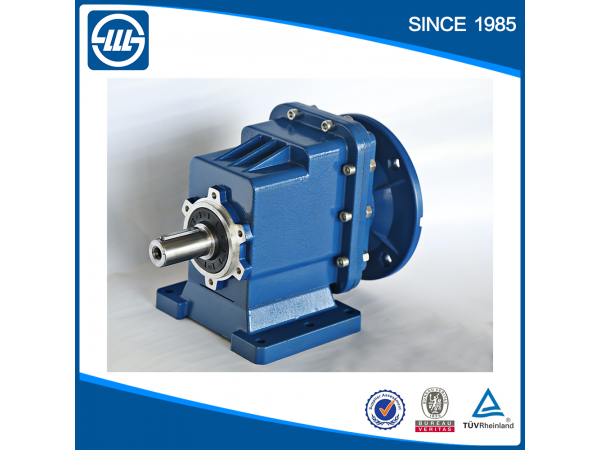

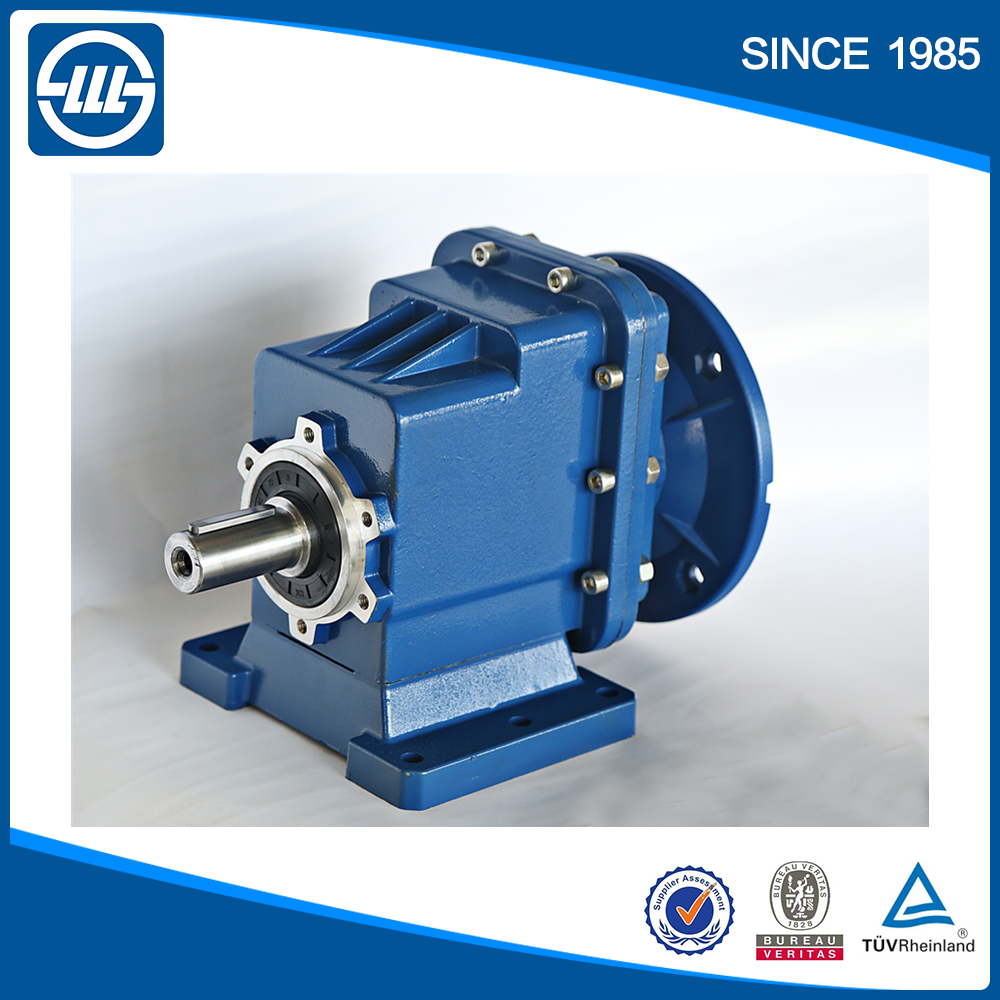

SLRC Series Helical Gear Units
SLRC Series Helical Gear Units has more than 4 types. Power 0.12-4KW,Ratio 3.66-54, Torque max 120-500Nm. It can be connected(foot or flange) discretionary and use multi-mounting positions according to custom-ers’requirements.
The high degree of modularity os a design feature of SLRC helical gearboxes range. It can be connected respectively with motors such as normal motor, brake motor. Exposion-proof motor, frequency conversion motor, servo motor, IEC motor and so on. This kind of product is widely used in drive fields such as textile, foodstuff, ceramics packing, logistics, plastics and so on. It is possible to set up the version required using flanges or feet.
Features*Ground hardened helical gears
*Modularity can be combined in many forms
*Aluminum casing, light weight
*Gears in carbonize hard durable
*Universal mounting
*Refined design space effective and low noise
Main materials01: Box: aluminum alloy (frame 07-27), cast iron 37-167).
02: Gear: 20CrMo steel, carbonitriding treatment (keep the hardness of tooth surface HRC60 after fine grinding), the thickness of hard layer > 0.5mm;
03: flat key: 45 steel, surface hardness HRC50.
