Size: SLXG30，35，40，45，50，60，70，80，100，125

Characteristics

1）Low-carbon alloyed steel cementation processing completely
2) High Precision of the gear and gear shaft
3) Small volume, large torque

Material
Housing: Spheroidal graphite / HT200
Input oil seal: SKF
Output oil seal: NAK/KSK
Input bearing: C&U   Output bearing: LYC
Oil: the Great Wall 220
output shaft：24...27 HRC (45#)

Application: Metallurgical Industry, Mining Industry, Chemical Industry, Lifting, Transportation, Textile Industry.

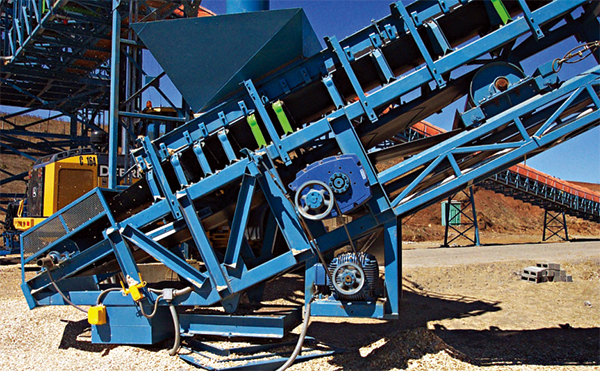

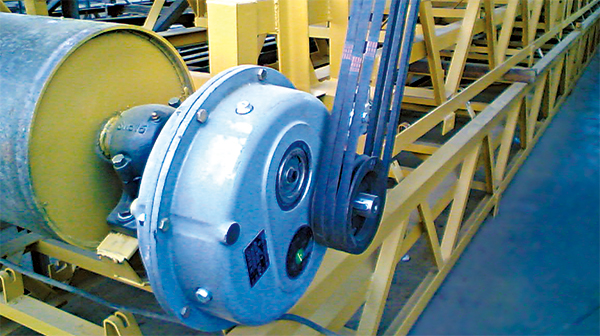

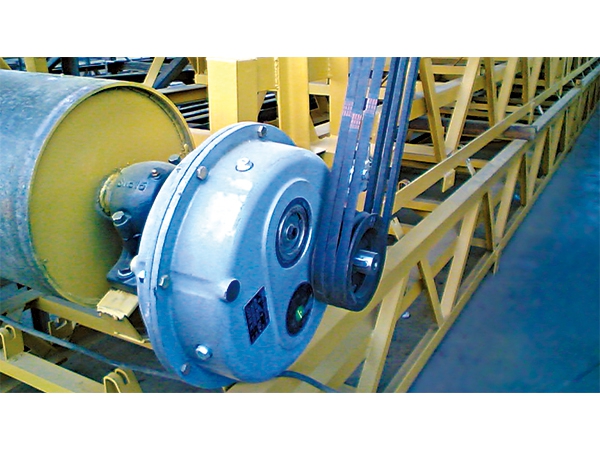

Belt pulley connection; Drive transmission

Maintenance
1) Please change the oil per 300 hours of operation and flush the gear unit with suitable detergents
2) Don’t mix the mineral oil and synthetic oil.
3) Please check the oil level in regular timeand change oil according to the following table:

Oil temperature [℃]	Oil change interval [h]
	Mineral oil	Synthetic oil
＜65	8000	25000
65-80	4000	15000
80-95	2000	12500

Storage
1) Don't be exposed to extreme weather outside
2) Don’t put it on the ground without cardboard, wood or other protective materials.

3) Please apply anti-rust oil for storage.
