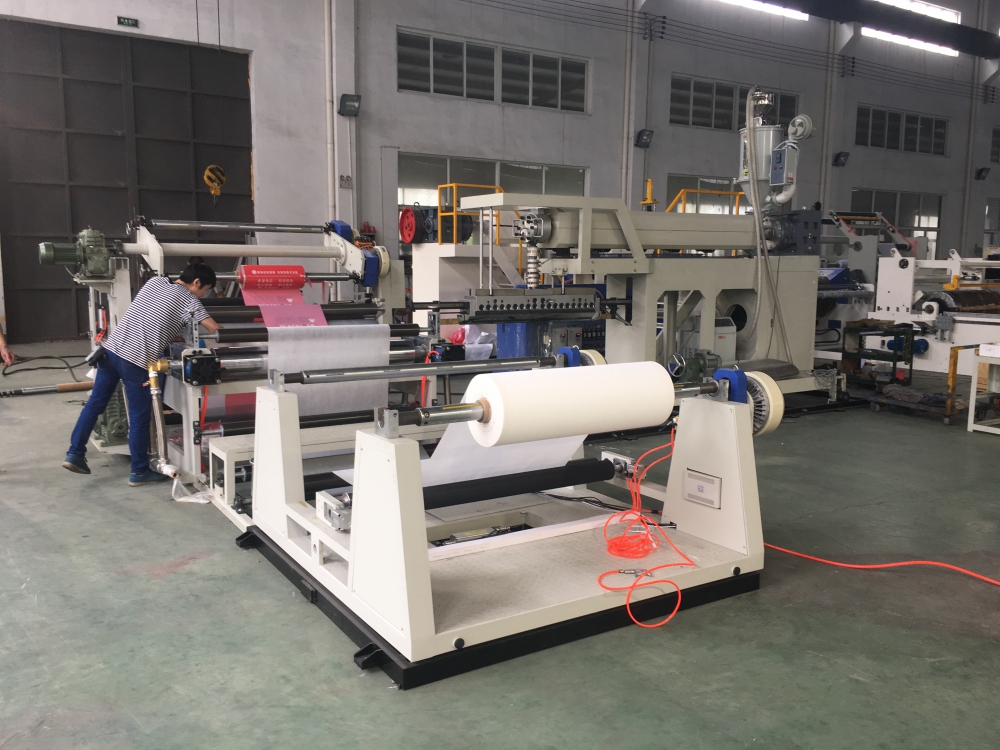

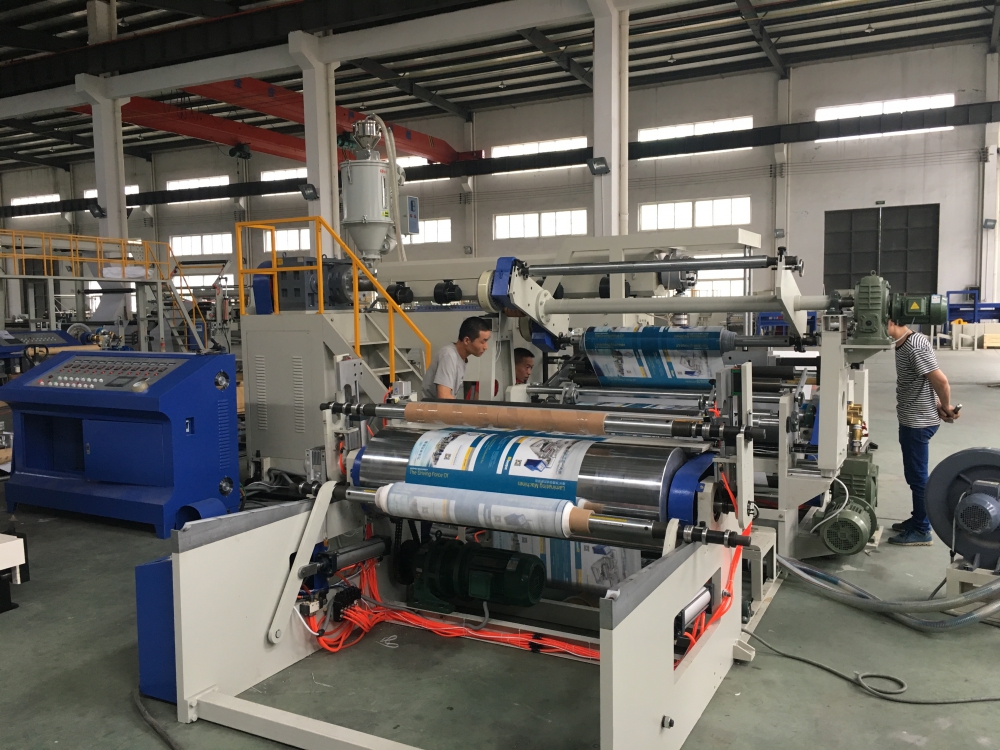

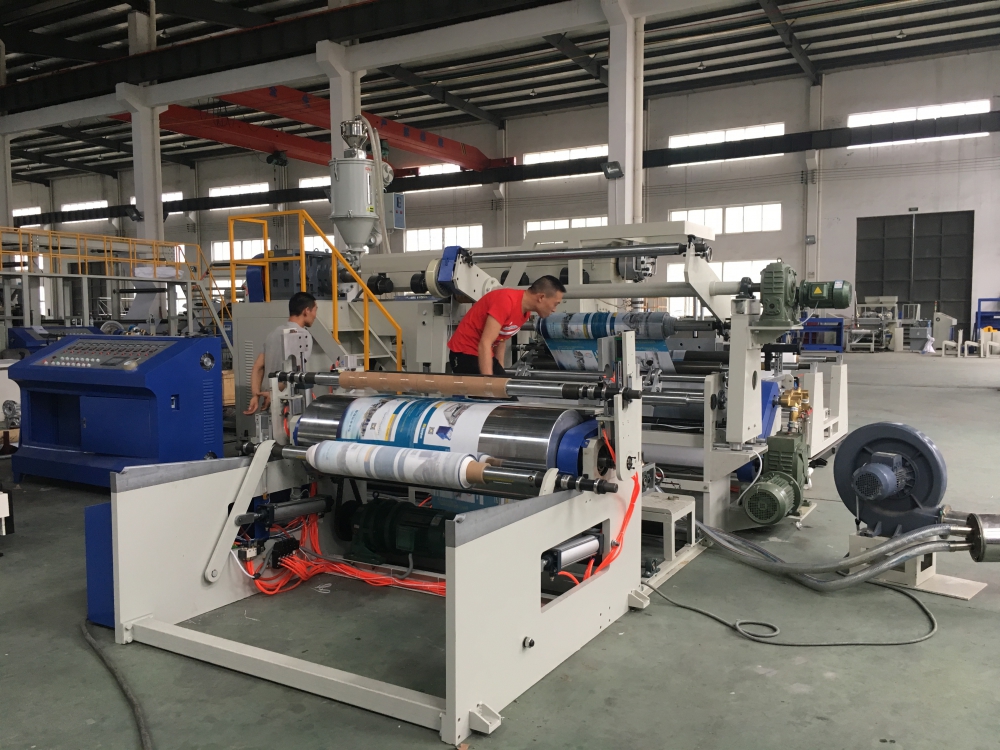

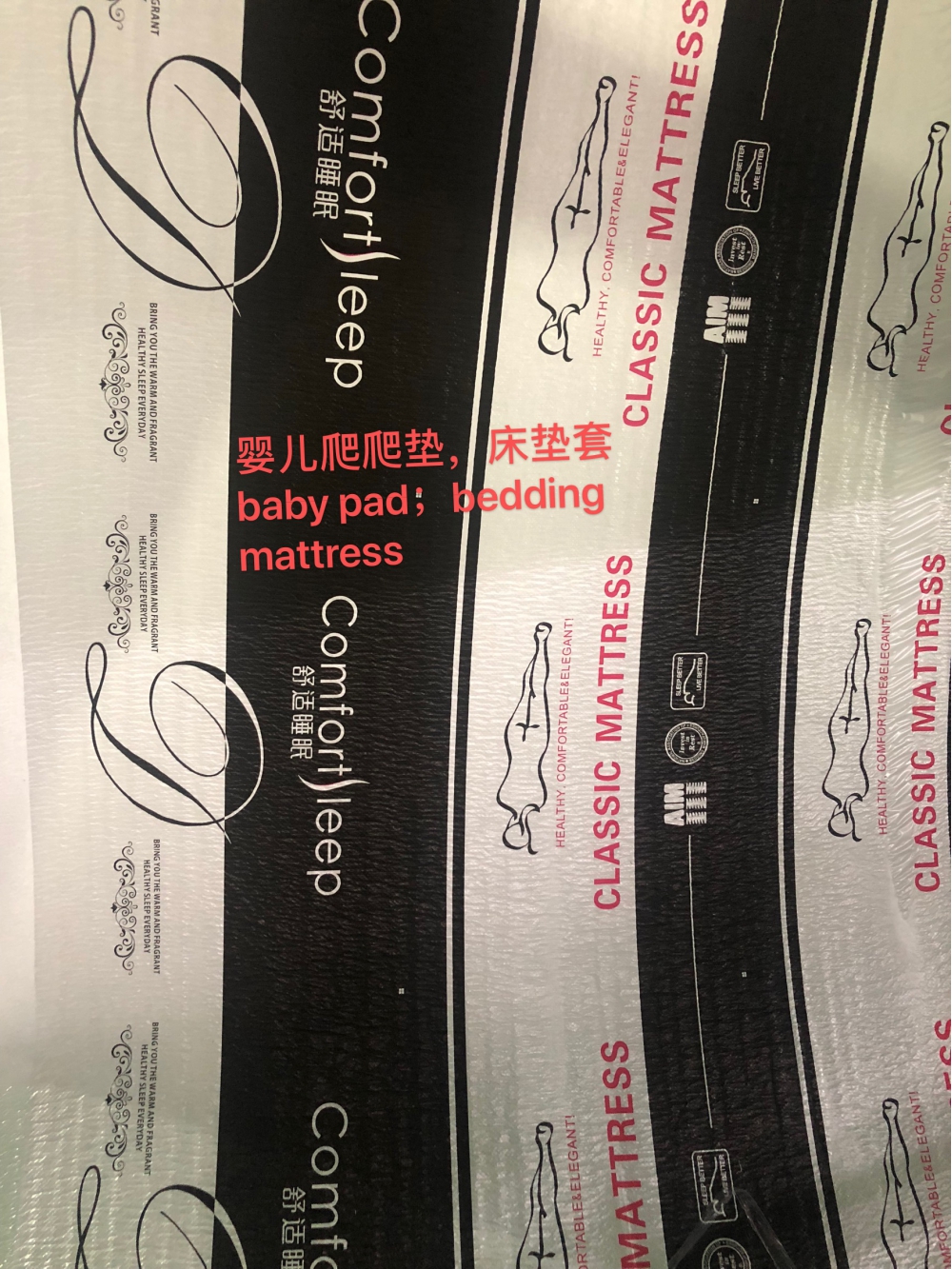

Machine brief description: The film lamination machine is designed for online single side fabric lamination such as nonwoven fabric and bags, with the use of LDPE, LLDPE, PP, EVA and EAA as the raw materials. It can also be used for nonwoven bag, pet pad sheet, surgical bed sheet etc.
Highlight
1. The running speed ranges between 80 to 120m/minute.
2. Automatic tension control ensures the equipment has a higher film coating accuracy.
3. We can add functional modules to meet customer needs, such as adding a return rack. A return rack achieves a dual side nonwoven lamination through the use of a single die head, thus ensuring an even thickness.

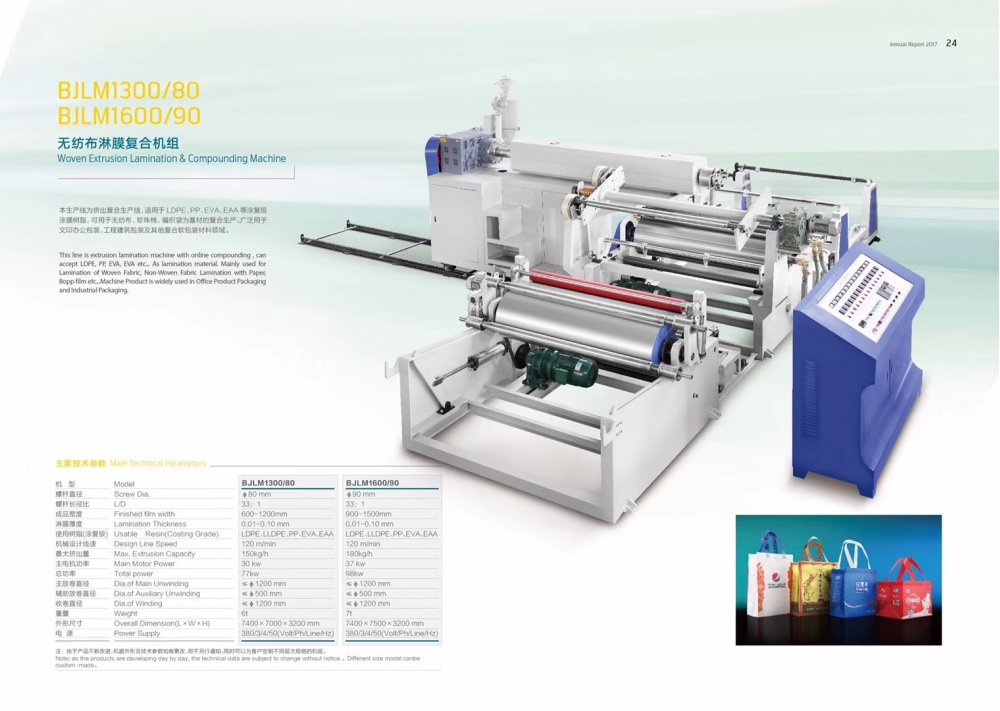

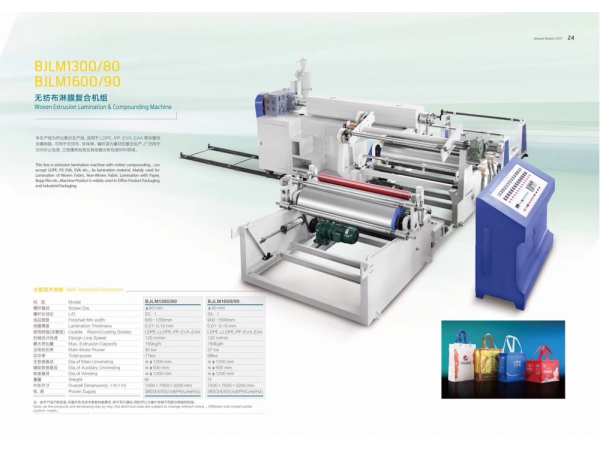

Technical Data:
| Model | JDLM1300/80 | JDLM1600/90 |
| Screw diameter | φ80 mm | φ90 mm |
| Screw length diameter ratio | 33:1 | 33:1 |
| Product width | 600-1200mm | 900-1500mm |
| The nonwoven thickness | 0.01-0.10 mm | 0.01-0.10 mm |
| Mechanical design linear speed | 120 m/min | 120 m/min |
| Maximum extrusion capacity | 150kg/h | 180kg/h |
| Main motor power | 30 kw | 37 kw |
| Total power | 77kw | 98kw |
| Main winding diameter | ≤φ1200 mm | ≤φ1200 mm |
| Auxiliary winding diameter | ≤φ500 mm | ≤φ500 mm |
| Unwinding diameter | ≤φ1200 mm | ≤φ1200 mm |
| Weight | 6000kg | 7000kg |
| Dimensions | 7400×7000×3200 mm | 7400×7500×3200 mm |
| Power supply | 380V/3P/4L/50Hz | 380V/3P/4L/50Hz |
