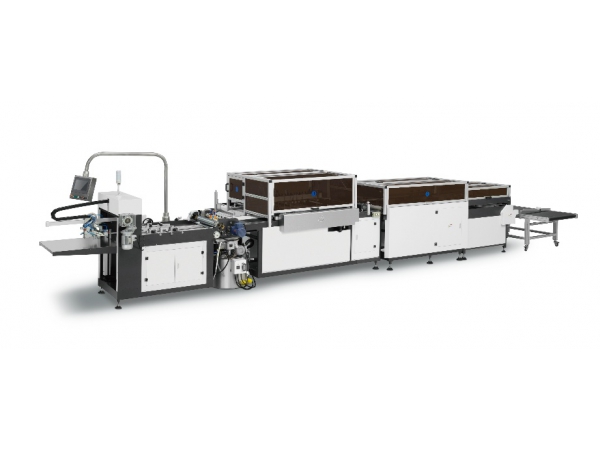

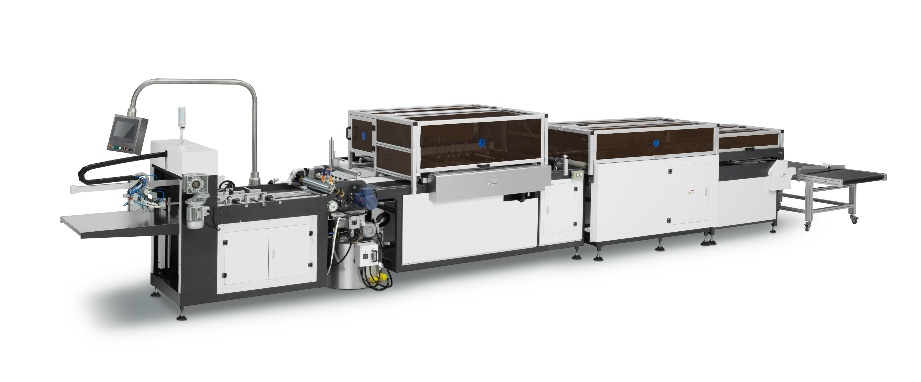

AFM Serial Automatic case maker is the patent equipment of Zhengrun which was invented in 2005. On the basis of the original semi-automatic gluing machine and folding machine, Zhengrun successfully combined and developed a fully automatic model AFM450, including the functions of paper feeding, gluing, cardboard feeding, positioning, folding left and right edges, trimming four corners, folding front and rear edges, and finally Stacking. It’s featured by accurate and quick positioning and beautiful finished products which is well accepted by customers. Currently, it is widely used to make book covers, notebook covers, calendars, hanging calendars, box files, package cases etc.

Features
1. Automatically feeding and gluing for paper
2. Automatically feeding, positioning and spotting for cardboards.
3. Hot melting glue circulation system
4. Automatically folding and forming case four-edge.
5. It adopts open-type construction in design. All motions can be seen clearly. The troubles can be easily remedied.
6. With friendly HMI, all troubles alarm will be displayed on the computer.
7. Plexiglas cover is designed according to the European CE Standards, featuring in safety and humanity.
8. Optional device: glue viscosity meter, soft spine device, Servo senor positioning device

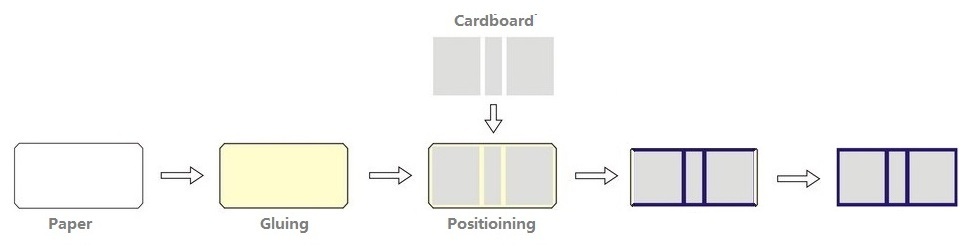

Production Flow

Main Technical Parameters

	Model	AFM540A
1	Case size(W×L)	MIN: 100×200mm, MAX: 540×1000mm
2	Paper size(A×B)	MIN: 90×190mm, MAX: 570×1030mm
3	Paper thickness	100~300g/m2
4	Cardboard thickness(T)	1~3mm
5	Min. spine size (S)	7mm
6	Folded paper size(R)	10~18mm

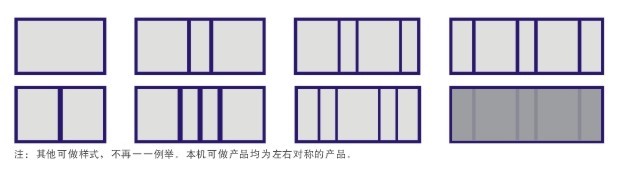

7	Max. quantity of cardboard	6pieces
8	Precision	±0.50mm
9	Production speed	≦35sheets/min
10	Motor Power	10kw/380v 3phase
11	Electric heating power
12	Air supply	30L/min 0.6MPa
13	Machine weight	3500kg
14	Machine dimension (L×W×H)	L9300×W2400×H1550mm

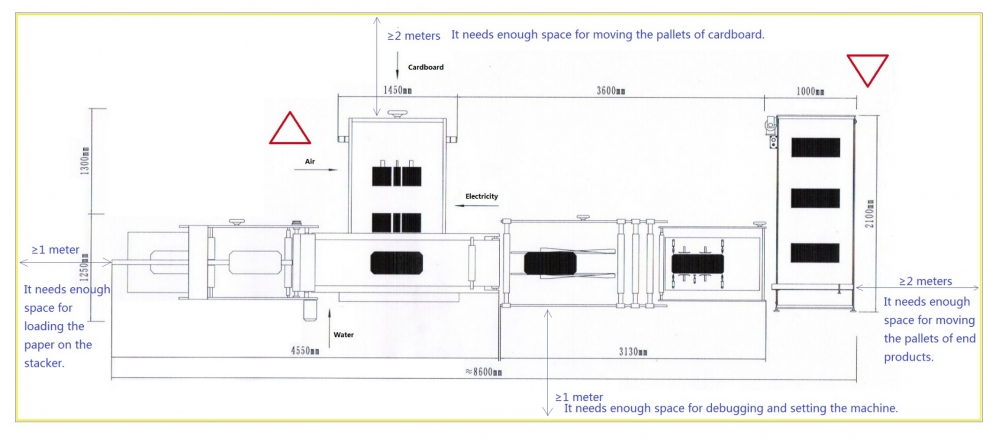

Staffing
