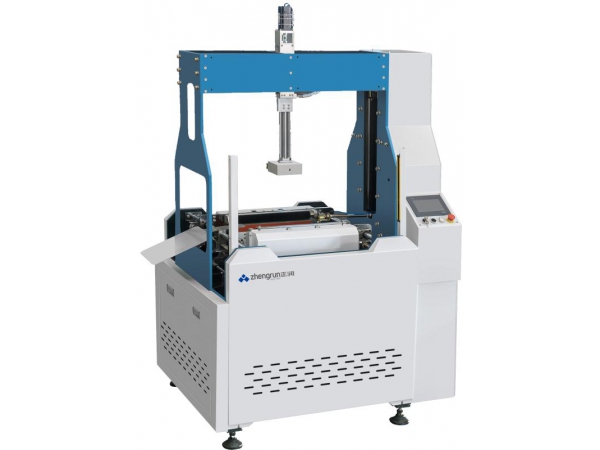

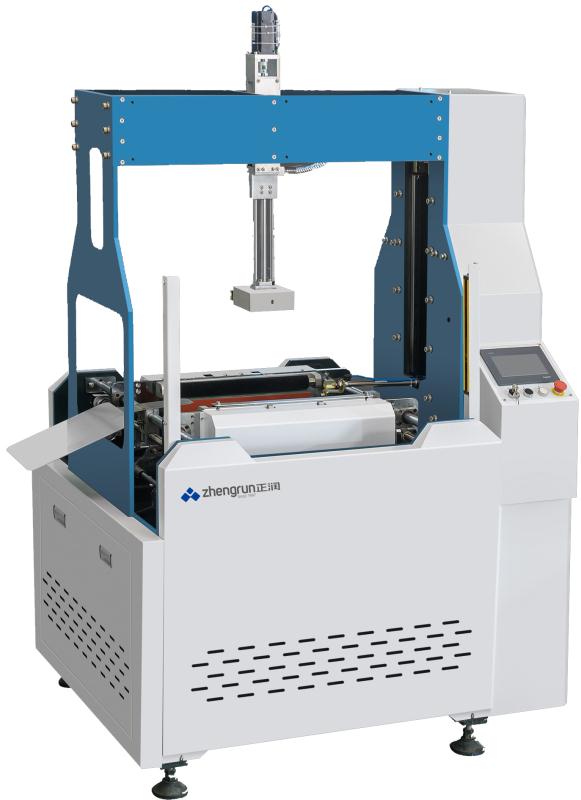

BF450 Rigid Box Wrapper

BF450 Rigid Box Wrapper is intelligent gift box wrapping machine for production of rigid boxes. It doesn’t need to change folding blade nor pressure foam board. The machine can automatically adjust the specific size of box by computer, which greatly reduces the size changing time.

Inquiry

It is applicable to make packaging rigid boxes for phone cases, shoes, cosmetics, jewelry, shirts, liquors, cigarettes, tea, sweets, candy, etc.

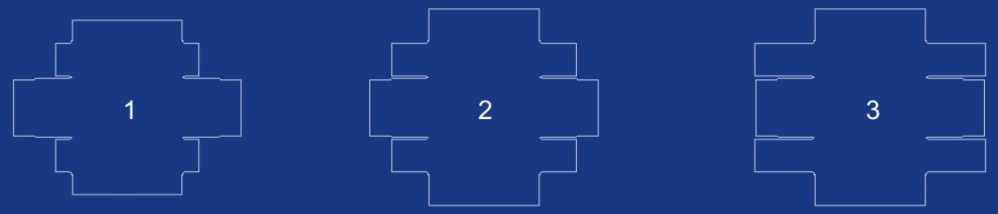

Paper wrapping type

Remark: Regarding paper wrapping type, 1 &2 can be fulfilled by the machine;
For type 3, the box width should be less than 100mm, only for small size rigid boxes.

Feature
1.Main drive
Main drive adopts double servo driver, runs smoothly, wrapping flexibly, can adjust for various size of cardboard and paper thickness. Run in high stability. Can fold paper turn in deep depth, ranges 10-90mm, flexibly adjust and no rebound.

2.Fully automatic control center
The whole machine is run by automatic control center, which ensures the accuracy and use life of the machine, advanced than our competitors.

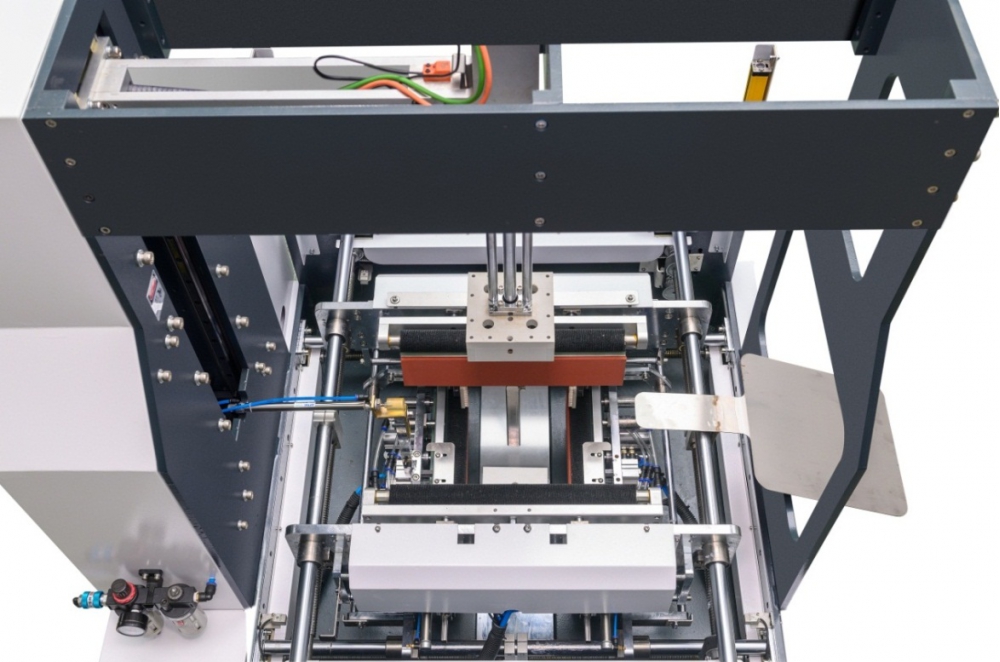

3.Bubble pressing
Four sides pressing section adopts double guide rail and screws adjustment, accurately positioning, convenient adjustment, high efficient. Four side bubble pressing section has two times bubble pressing function. Adopts misplaced pressing board installation, no need customize the pressing board for different size boxes which saves costs and mold setting time.

4.Ear folding section
Ear folding section adopts guide positioning, flexible spring, not easy to break paper and cardboard; quick and convenient adjustment, good performance. Machine can do 3 times folding.

5.Output device
Output device adopt mode of cylinder synchronous run, stable running. Take off box section adopts automatic air exchange and internal removal structure. Simple structure, convenient adjustment, it’s suitable for small size box.

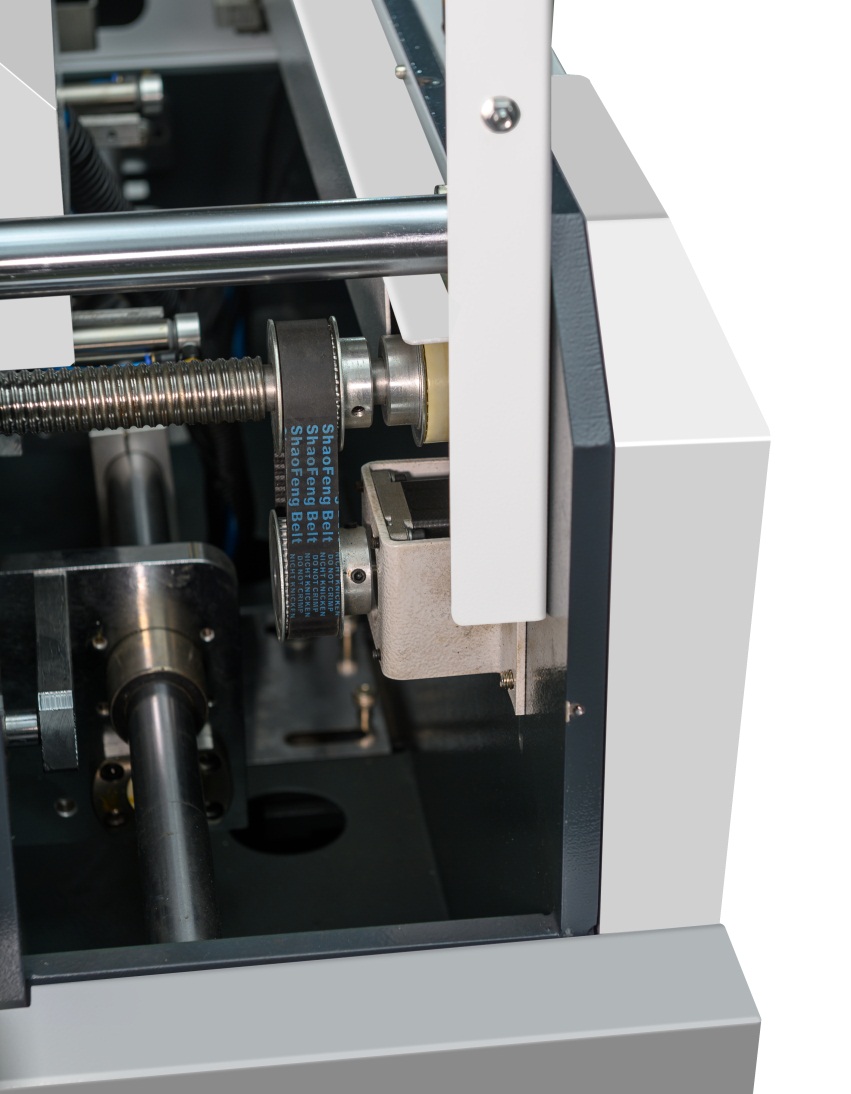

6.Helical gear transmission shaft
The helical gear drive spindle is stable, accurate, reliable, high output, long service life. The whole machine can realize the slow motion.

7.Emergency stop & Touch screen
The machine equipped with touchable emergency stop. And size adjustment can be adjusted by touch screen computer automatically, easy to adjust.

Main Technical Parameter
