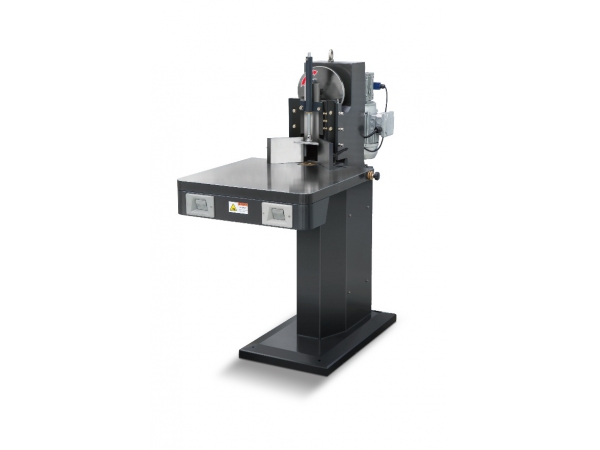

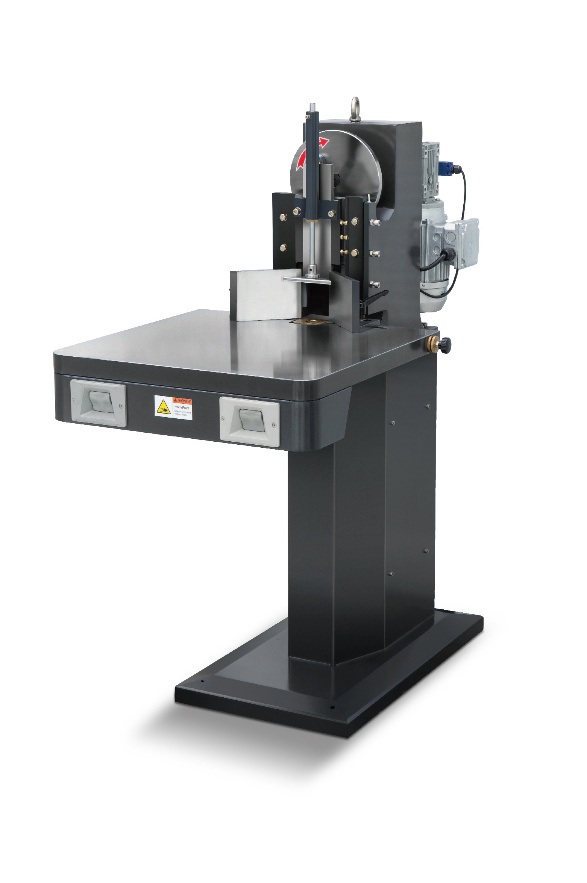

It is characterized by compact construction, easy to operation and stable performance. Its improved round angles and types of the cutter make it apply to cutting various round angles and flat angles of the notebooks, logo, business cards, books and trademarks, etc.
Main Technical Parameter
Paper Height | 80 mm |
Cutting length | ＜65mm |
Cutting Speed | 85 times/min |
Work Table | 560*580mm |
Motor Power | 0.75kw/380v 3phase |
Machine weight | 270 kg |
Machine dimension | L1350×W500×H1200mm |

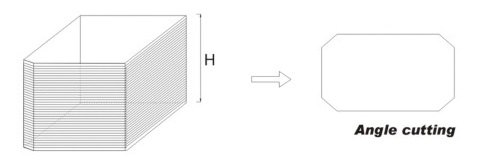

Production Flow

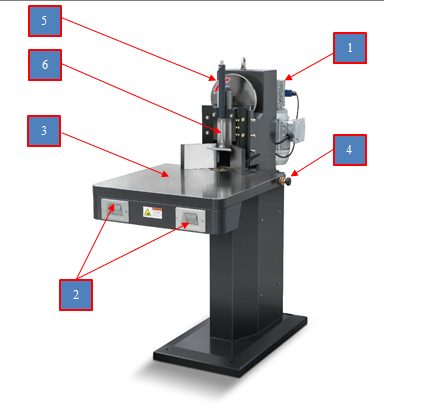

Features
1. Brake: The brake is cut off by the limit sensor. The blade is operated only once by pressing the button or holding the button in both hands. This ensures the safety of the operator.
2. Dual-button operation principle: This requires two buttons at the same time is pressed, otherwise the cutter motor will not move, which can guarantee the absolute safety of single operation, in line with European CE standards. (Widely used on the market foot switch, or single-button design, the operator has a great security risk.)
3. Big chrome-plated console: 560x580mm, can withstand large-size paper.
4. Center synchronous adjustment: to improve accuracy, saving adjustment time.
5. Pressing block: it will hold the material steadily without moving when the knife is cutting.
6. Knife: could be customized R3-R15 and special shape
7. Machine Frame: Casting Iron, stable structure.

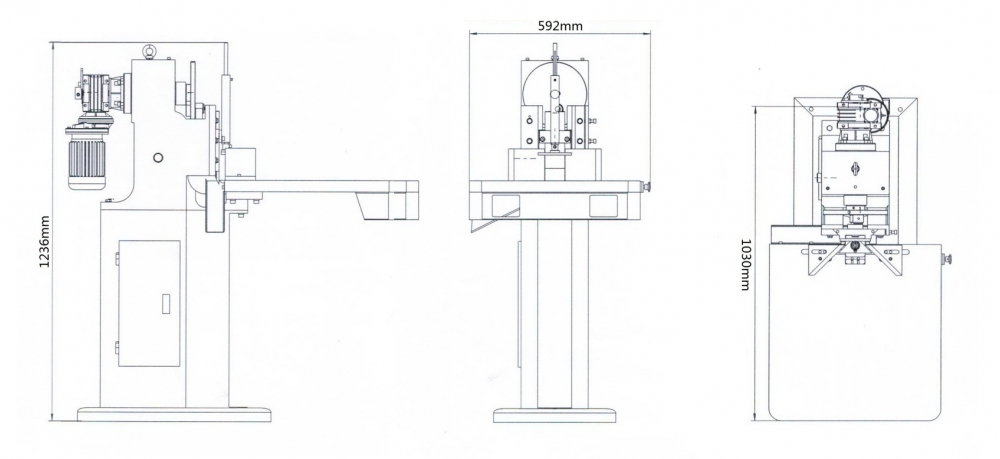

Layout
