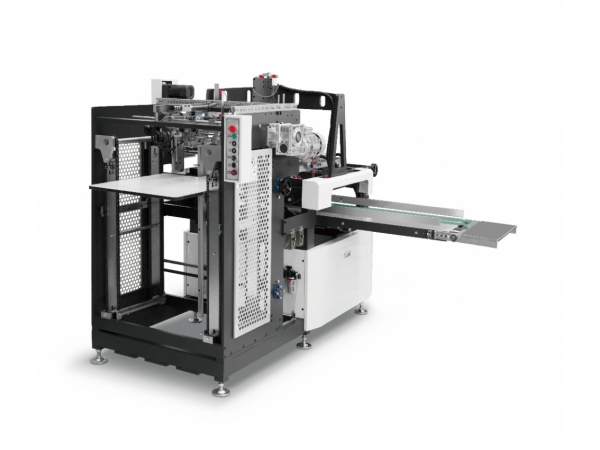

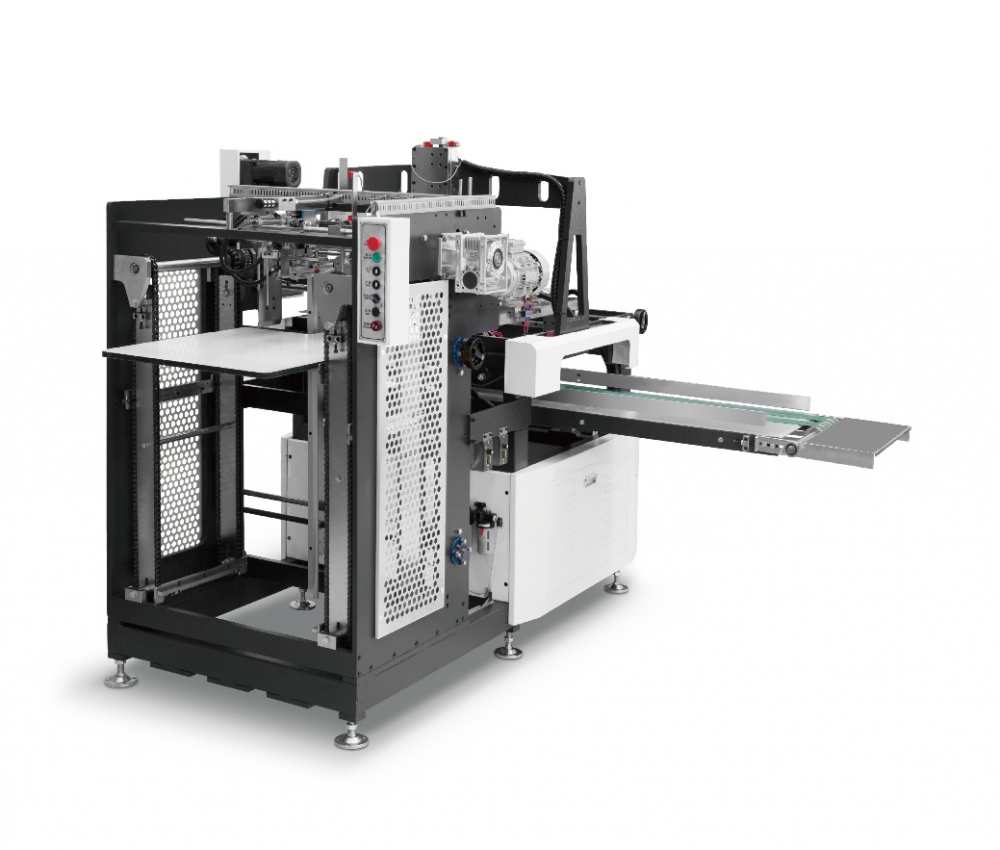

ATJ540 Automatic Box Former

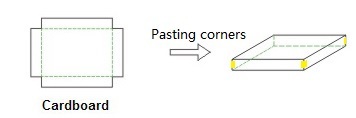

It’s a fully automatic rigid box corner pasting machine which is used to pasting the corners of cardboard box. It’s necessary equipment for making rigid boxes.
Features1.PLC control, humanized operation interface;
2.Automatic cardboard feeder, can be stacked up to 1000mm height of cardboard;
3.The cardboard fast stacked conversion device;
4.Replacement of mold is fast and simple, suitable for different specifications of products;
5.Hoe melt tape automatic feeding, cutting, corner pasting in one time;
6.Automatic alarm when hot melt tapes is running out.
Main Technical Parameter
Model | ATJ540 |

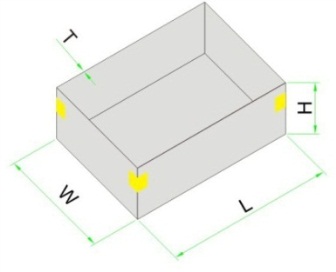

Box Size(L×W×H) | Max. 500*400*130mm |
Min. 80*80*10mm |
Speed | 30-40pcs/min |
Voltage | 380V/50HZ |
Power | 3KW |
Machinery weight | 1500kg |
Dimension (LxWxH) | L1930xW940xH1890mm |
