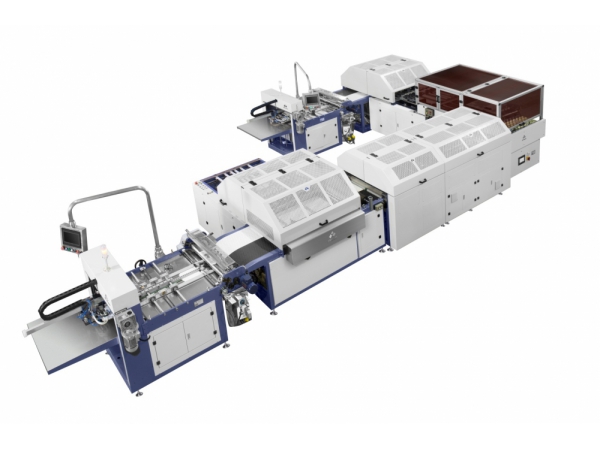

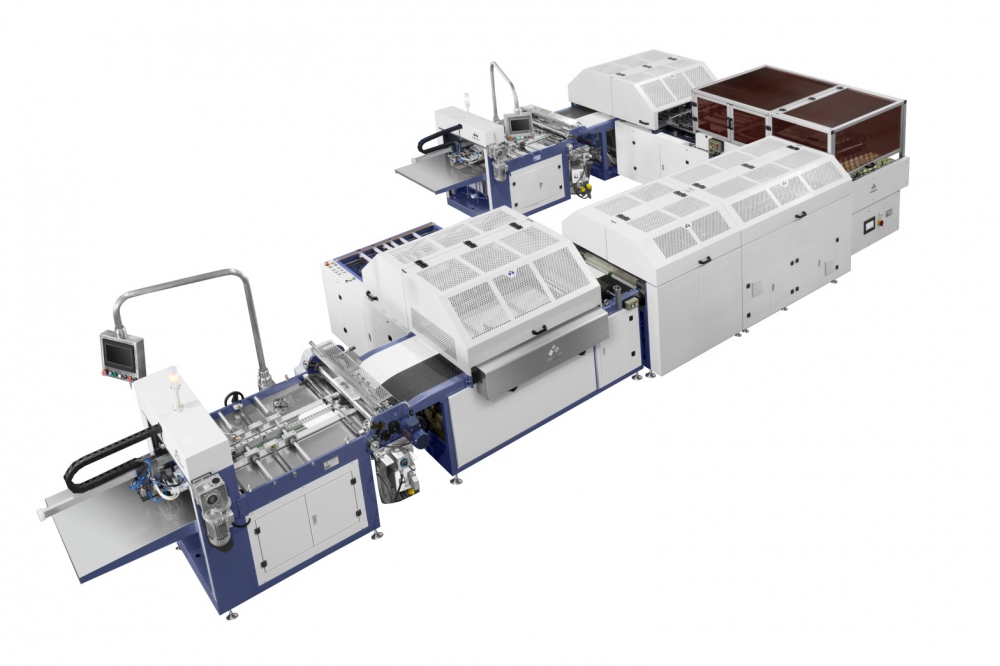

Fully automatic case maker line is including Automatic case maker, automatic turner and automatic lining machine. It adopts new control system which has the function of feeding and gluing paper, feeding the cardboard and positioning, folding four edges and turning, then conveying to the stacker of lining machine.
at same time, the lining machine feeding and gluing the inner paper, feeding the positioning semi-finished case, press and collecting; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make perfect book covers, notebook covers, calendars, hanging calendars, files and irregular cases etc.
Features
1. Automatically delivery and gluing for paper
2. Automatically delivering, positioning and spotting for cardboards.
3. Hot melting glue circulation system

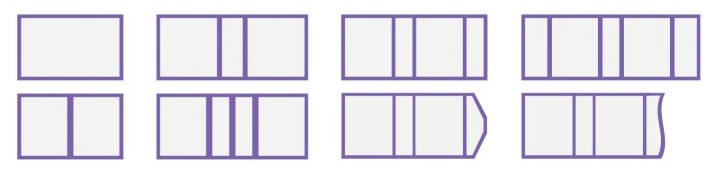

4. Automatically folding and forming case four-edge.(Available to make Irregular shape cases)
5. Automatic turner
6. Semi-finished case stacker and bottom sucking type feeder.
7. Rubber rollers are used to flatten the case, which ensures the quality.
8. Integrated cover is designed according to the European CE Standards, featuring in safety and humanity.
9. Optional device: glue viscosity meter, Servo senor positioning device

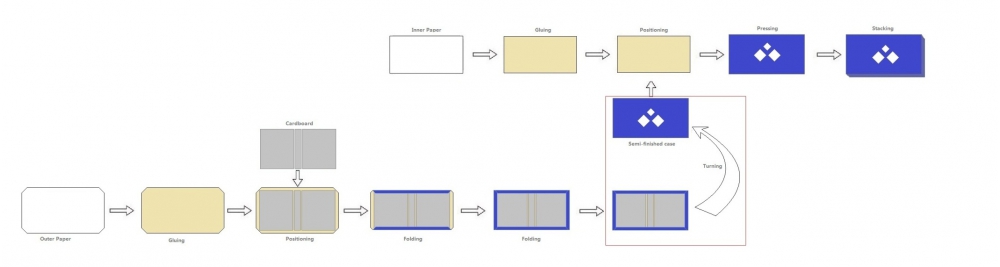

Production Flow
Product Sample
Main Technical Parameters
1 | Case size(A×B) | MIN: 100×200mm MAX: 540×1000mm |
2 | Paper size(A×B) | MIN: 90×190mm MAX: 570×1030mm |
3 | Paper thickness | 100~200g/m2 |
4 | Cardboard thickness(T) | 1~3mm |
5 | Min. spine size (S) | 10mm |
6 | Folded paper size(R) | 10~18mm |
7 | Max. quantity of cardboard | 6pieces |
8 | Precision | ±0.50mm |
9 | Production speed | ≦35sheets/min |
10 | Power | 23kw/380v 3phase |
11 | Air supply | 55L/min 0.6MPa |
12 | Machine weight | 6700kg |
13 | Machine dimension (L×W×H) | L8500×W2300×H1700mm |

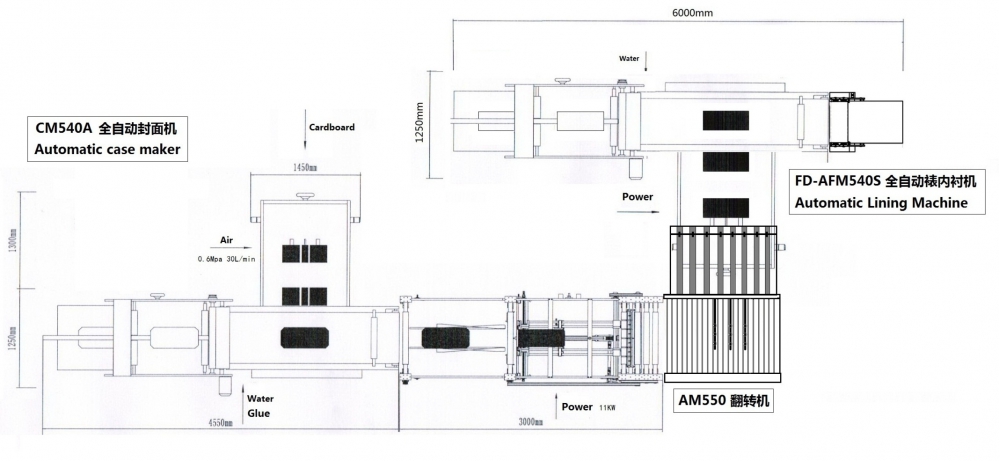

Staffing
