Features
1. Automatic feeding for cardboard. Servo controlled and setup via touch screen.
2. Pneumatic cylinders control the pressure, easy adjustment of cardboard thickness.
3. The safety cover is designed according to European CE standard.
4. Automatic concentrated lubrication system, easy to maintain.
5. The crusher could cut the waste into small size and convey them out of the machine by belt.
6. with a 2-meter conveyor belt for collecting.

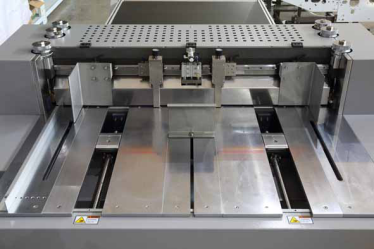

Auto feeder
It adopts bottom-drawn feeder which feed the material without stopping. It’s available to feed small size of board.

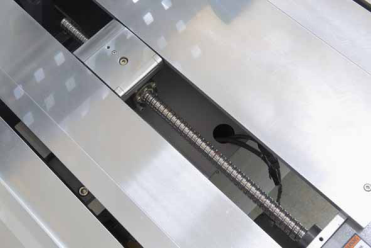

Servo and Ball Screw
The feeders are controlled by the ball screw, driven by the servo motor which efficiently improves the precision and makes adjustment easy.

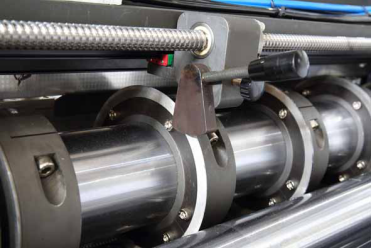

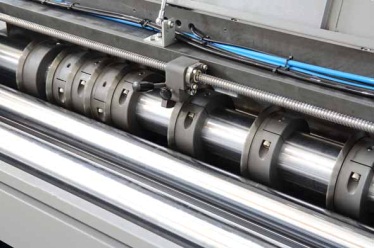

8 sets Quality knives
Adopt alloy round knives, durable which reduce the abrasion and improve the cutting efficiency

Auto knife distance Guide
The distance of cut can be set in touch screen. According to the setting, the guide can automatically move to the position without measuring.

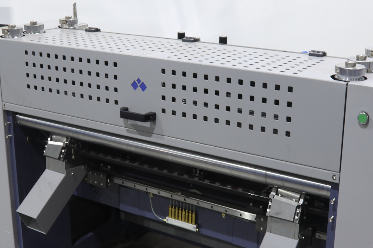

CE standard safety cover
The safety cover is designed according to the CE standard which efficiently prevents the disoperation and ensures the personal safety.

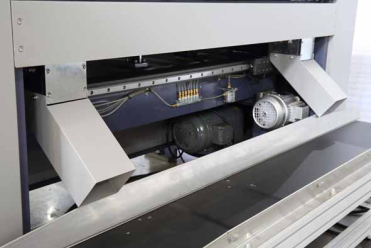

Waste crusher
The waste can be automatically crushed and collected when cutting the big sheet of cardboard.

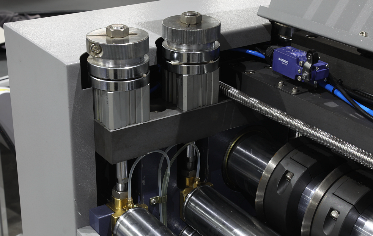

Pneumatic pressure control device
Adopt air cylinders for the pressure control which reduce the skill requirement of workers.

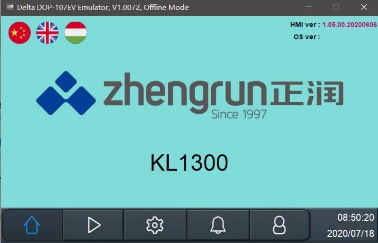

Touch screen
Friendly HMI make the adjustment easy and fast. Auto counter and alarm.

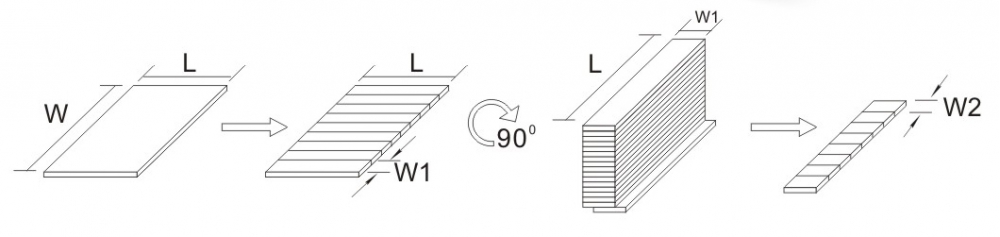

Production Flow

Main technical parameter

Model	KL1300A
Cardboard width	W≤1300mm, L≤1300mm W1=100-900mm, W2≥55mm
Cardboard thickness	1-4mm
Mechanical speed	≤60m/min
Motor power	4kw/380v 3phase
Air supply	0.1L/min 0.6Mpa
Machine weight	1300kg
Machine dimension	L3260×W1815×H1225mm

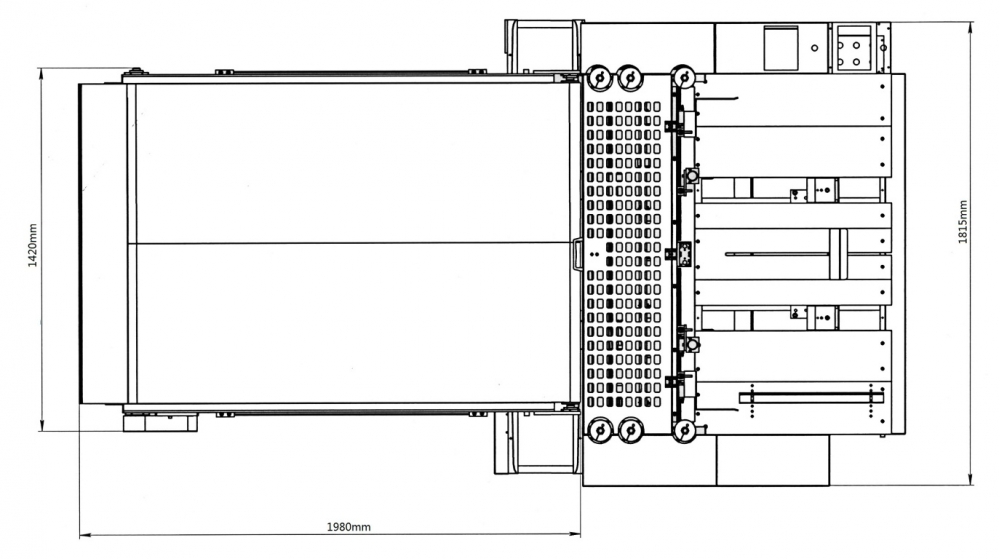

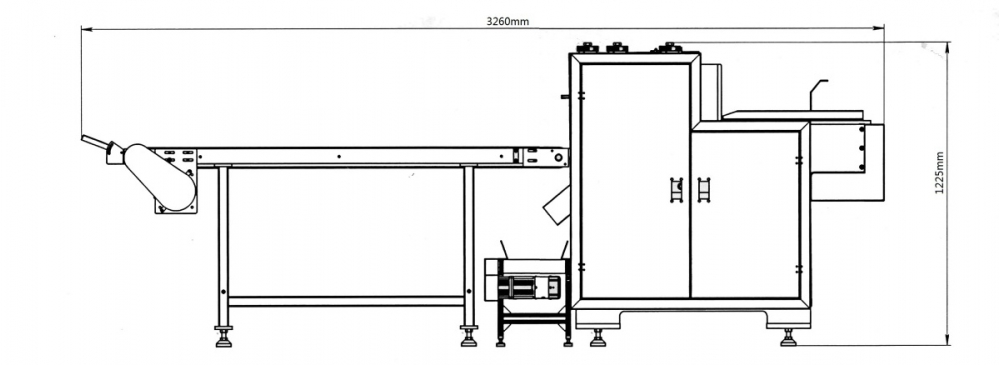

Layout
