use:

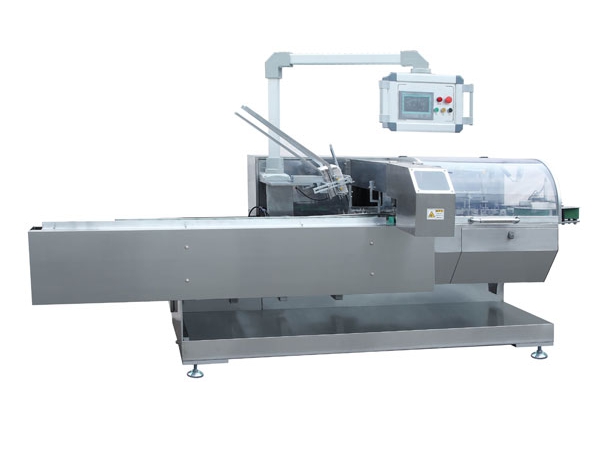

This machine is a new product developed by our company. It has a wide range of applications, high efficiency, stable operation, and can be used in one machine for packaging medicine, food and cosmetics.
Features:
1, can automatically complete the instructions of the folding, carton molding, open, plate loading, batch printing, sealing and other work. And can be equipped with hot melt adhesive system to complete the hot melt sealing.
2, the machine adopts PLC control. All parts of the photoelectric monitoring action, abnormal operation, can automatically shut down the display of reasons for the timely troubleshooting.
3, the main frame equipped with the main drive motor and clutch brake, and the board is equipped with various parts of the transmission system torque overload protector, you can overload conditions, the main drive motor and the transmission part of the separation to ensure that the whole Machine safety.
4, the machine is equipped with intelligent detection device. No material automatically no instructions, no less than carton, convenient and front equipment linked work. Found in the testing of waste (no drug version, instructions) that is removed at the exit to ensure product quality fully meet the eligibility requirements...
5, the machine can be used alone, but also with the blister packaging machine and other equipment used in conjunction with the formation of complete sets of production lines.
6, The machine can be based on the user's different requirements, can change the packaging specifications, adjustment and debugging simple, that is, suitable for a single batch of large quantities of production, but also to meet the user's small quantities and more varieties of production.
The main technical parameters:
power supply：
AC380 V three-phase five-wire power supply 50Hz
The total power of 1.5 kilowatts
Dimensions (L × W × H) MM：2900 × 1350 × 1600
Total weight (kg)：1300
Production capacity：
Host running speed of 60-100 boxes / minute
Origami machine running speed 60-100 sheets / minute
Air consumption：20 m3 / h (pressure greater than 0.6 MPa)
Packaging Materials：
Carton quality: 250-350 g / m2 (depending on the size of the tray)
Specifications: Maximum size (length × width × height) 200 × 120 × 60 mm
The smallest size (length × width × height) 55 × 35 × 15 mm
Instructions：
Paper quality: 55-65 grams / square meter
Specifications: Maximum size (length × width) 240 × 170 mm
The smallest size (length × width) 110 × 90 mm
Compressed air:0.5MPa flow greater than 0.6m3 / min
