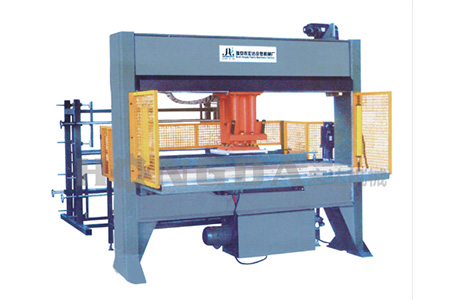

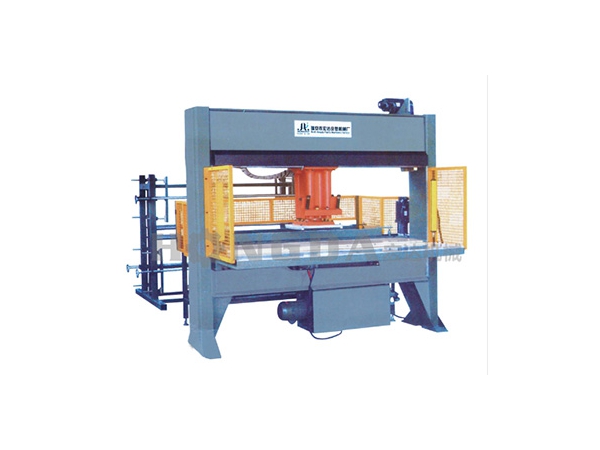

Fully automatic material feeding and cutting machine adopts servo and PLC system to accomplish microcomputer controlling, thus achieving automatic material feeding and cutting. Only finished product collecting is implemented manually. Compared to conventional feeding machine, this machine can enhance efficiency of 3-5 times, save energy consumption of 1/3 and save raw materials of nearly 10%. It is ideal high automation equipment suited for batch production of insoles and other sheet products.
| Model | HD/K250 |
| Max. cutting force | 250KN |
| Working table surface (mm) | 1800*500 |
| Punching plate size (mm) | 1800*500 |
| Punching head size (mm) | 420*350 |
| Rotation of punching head | No |
| Adjustable stroke (mm) | 5-150 |
| Main motor power (kg) | 2.2 |
| Feeding motor power (Kw) | 2.2 |
| Dimension (mm) | 2910x1210x2520 |
| Feeding rack (mm) | 2460x1600x1350 |
| Discharging rack (mm) | 2300x1490x1570 |
| Weight (kg) | 2300 |
