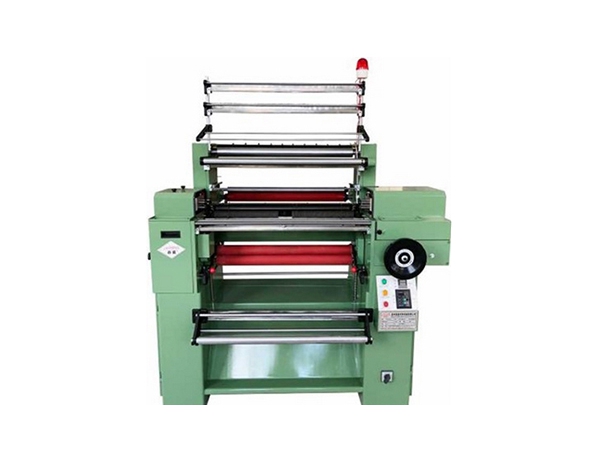

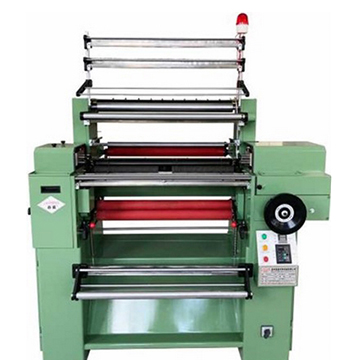

Crochet Knitting Machine, JSG762/B

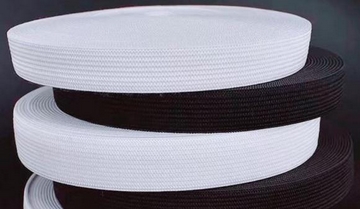

The crochet knitting machine is a high efficiency textile weaving machine used for the production of a wide array of elastic and non-elastic narrow fabrics, including ribbons, bandages and laces, and medical and technical textiles.
Features
- Fabric width up to 300 mm thanks to a widened working width
- High quality bearing, rubber roller and needle bed
- Features a durable construction, quiet operation, excellent operational stability, and easy control
- The noise level and electrical safety levels are in full compliance with international safety standards
Technical Parameters
- Working Width: 30 inch (762 mm)
- Number of needles per inch: available with 10, 12, 14, 15, 16, 18, 20
- Weft Guide Bar: 3 bars
- Max. Fabric Width: 70 mm
- Motor Power: 1.5 kw
- Speed: 1500 rpm/min

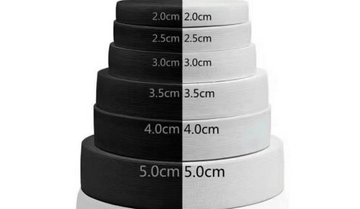

Fabric Width / Tape Numbers (Regular type crochet knitting machine)
| 4mm | 10mm | 15mm | 20mm | 25mm | 30mm | 40mm | 50mm | 60mm | 70mm |
| 108 (pcs) | 54 (pcs) | 36 (pcs) | 30 (pcs) | 24 (pcs) | 19 (pcs) | 15 (pcs) | 12 (pcs) | 10 (pcs) | 9 (pcs) |
Fabric Width / Tape Numbers (Crochet knitting machine with widened working width)
| 4mm | 10mm | 15mm | 20mm | 25mm | 30mm | 40mm | 50mm | 60mm | 70mm | 300mm |
| 108 (pcs) | 54 (pcs) | 36(pcs) | 30(pcs) | 24 (pcs) | 19 (pcs) | 15 (pcs) | 12 (pcs) | 10 (pcs) | 9(pcs) | 2(pcs) |
Machine Specifications
- Machine Weight: 800kg
- Creel Weight: 120kg
Crochet Knitting Machine (regular model)
- Packing Size (machine): 1600x1050x1600mm
- Packing Size (creel): 2600x150x150mm
Crochet Knitting Machine (with widened working width)
- Packing Size (machine): 2050x1050x1600mm
- Packing Size (creel): 2600x150x150mm
Accessories
| Control system for auto stop motion during yarn breakage | 1 set |
| Variable frequency drive for automatic speed adjustment | 1 set |
| Automatic stop motions for incorrect product winding | 1 set |
| Automatic oil circulating system | 1 set |
| Tri-roller feeding system for elastic materials | 2 sets |
| Double sided winding system for finished narrow fabrics | 1 set |
| Steel reed for warp and weft yarns | 1 set |
| Indicating light for auto stop motions | 1 pc |
| Creel with 200 bobbin numbers + 4 warp beams on a frame（other specifications available） | 1 set |
