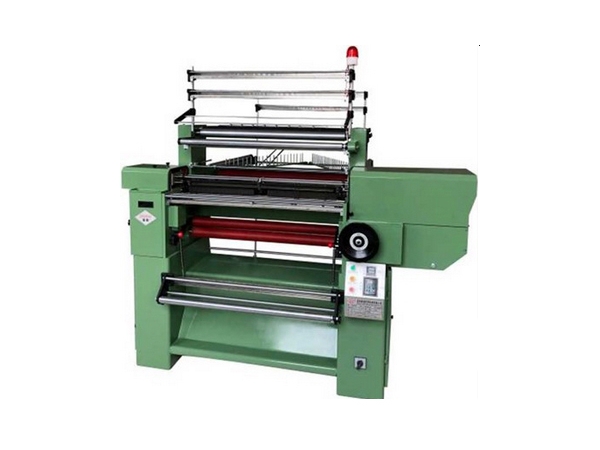

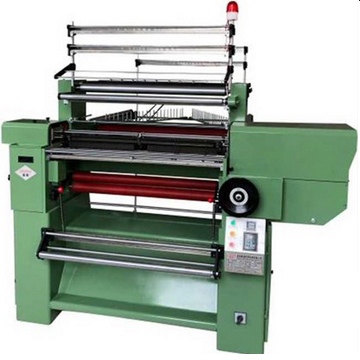

Features
  • High productivity due to widened working width
  • High quality bearing, rubber roller and needle bed
  • Features a durable construction, quiet operation, high operational stability, and easy control
  • The noise level and electrical safety levels are in full compliance with international standards.
Technical Parameters
  • Working Width: 35 inch (889mm)
  • Number of Needles per inch: available with 10, 12, 14, 15, 16, 18, 20
  • Weft Guide Bar: 3 bars
  • Max. Fabric Width: 70mm
  • Motor Power: 1.5kw
  • Speed: 1500 rpm/min
Fabric Width / Tape Numbers
4mm 10mm 15mm 20mm 25mm 30mm 40mm 50mm 60mm 70mm 300mm
126 (pcs) 62 (pcs) 42 (pcs) 36 (pcs) 28 (pcs) 23 (pcs) 18 (pcs) 15 (pcs) 12 (pcs) 10 (pcs) 2 (pcs)
