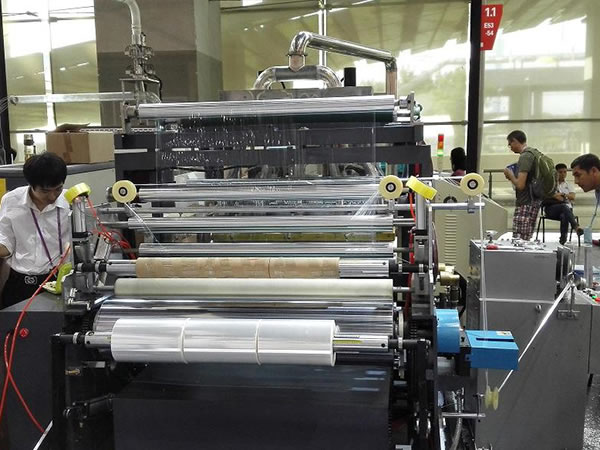

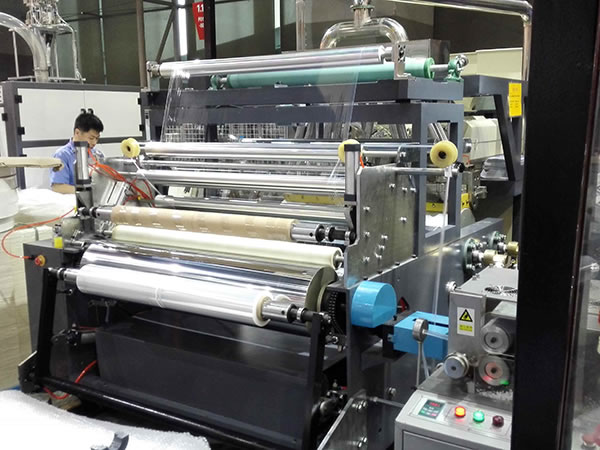

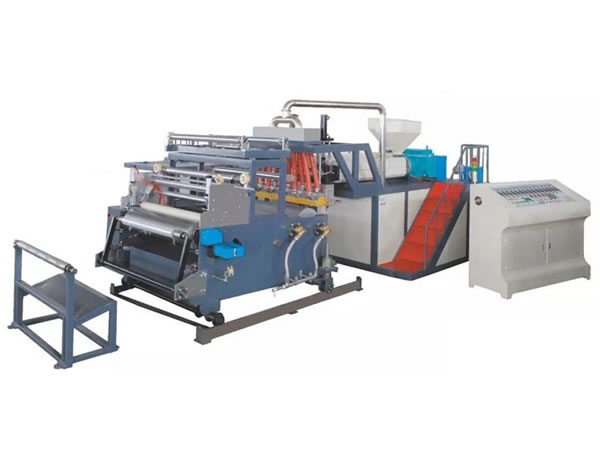

1000mm Double Layer Plastic Film Extruder is a new model which has simple design, but owns very good output (max.extrusion output is 80kg/h). It can make jumbo roll size of 1000mm width, or 500mm width*2, or 333mm width*3. This is a top selling model among our stretch film machines, because of its very low price and stable working performance.
We highly suggest the customer whose budget is not high may start with this model from the first beginning.
Features
1. Machine complete set of hardware parts are built with high quality material, which makes the whole machine into a strong/stable running condition.
2. Screw length and diameter ratio: 30:1, for perfect plasticizing advantage.
3. Casted aluminum heater in screw performs long life.

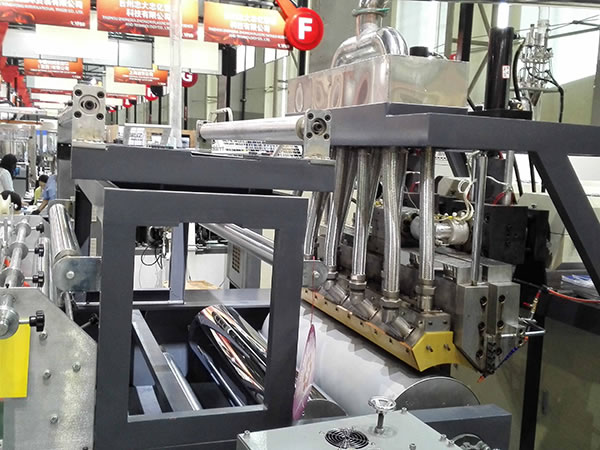

4. T-DIE is made by our own branch Company in Shaoxin, die material-P20H, makes the film thickness even and 100% longer using life than normal market model.

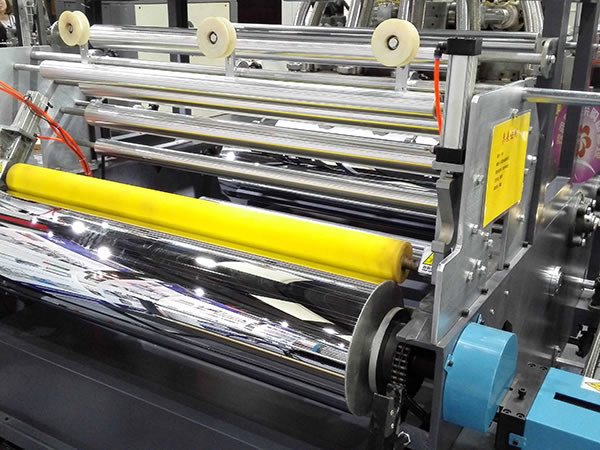

5. Automatic cutting & winding system, for saving labor cost.
6. Turn-key project of engineer’s visit to buyer’s factory for installation and technical guide, support and training
Technical Data:
| Item | Parameters |
| Screw diameter | Φ80mm & φ60mm |
| Length diameter ratio | 30: 1 |
| T-die width | 1300 mm |
| Finished film width | 1000mm |
| Finished film thickness | 0.01-0.03mm |
| Output | 90kg / h |
| Main motor power | 30kw / 18.5kw |
| Traction motor power | 2.2 kw |
| Moving motor power | 0.55 kw |
| Winding motor power | 2.2kw |
| Air pressure | 0.8mpa |
| Air consumption | 3m3 / min |
| Water consumption | 0.5 m3 / h |
| Rated heating power | 66kw |
| Total power | 110kw |
| Machine size | 9200mm×2350mm×2400mm |
| Power supply | 380 / 3 / 4 / 50 |
