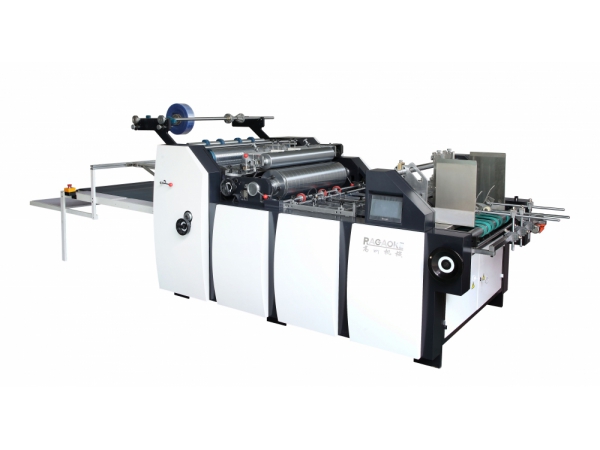

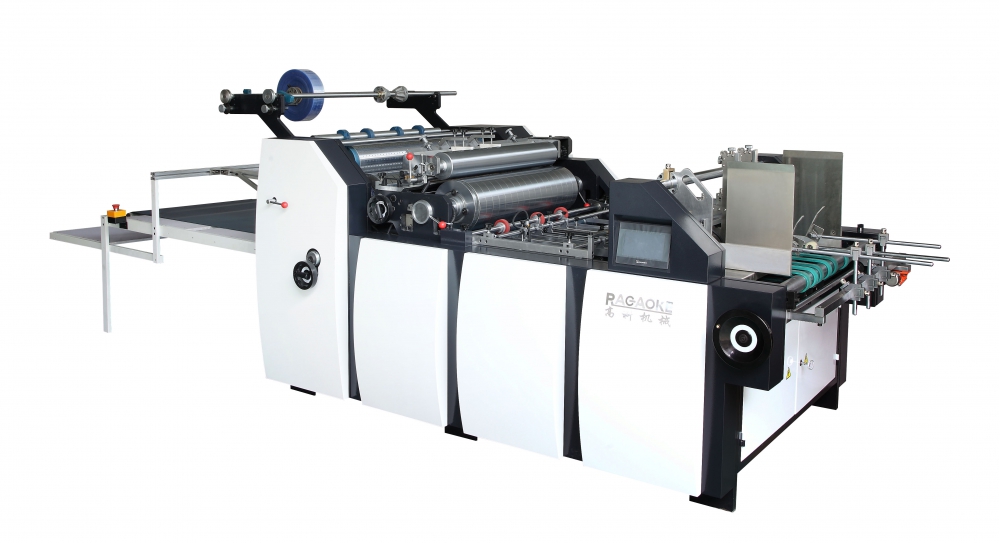

GK-1080T Window Patching Machine is widely used in the film patching to be package with or without the window of the wine box .gift box. napkin box. cosmetic box etc. It can also realize the function of the paper gluing ,film patching ,film cutting and paper collection before folding boxes. The machine has passed the ISO9001 Quality System Certificate and conform the European CE safety standard.
Specification of the machine | |
Model | GK-1080T |
Max. Paper Size(mm) | 1080*650 |
Min. Paper Size(mm) | 140*140 |
Max. Film Size(mm) | 410*300 |
Min. Film Size(mm) | 80*60 |
Film Thickness(mm) | 0.05-0.20 |
Max. Working Speed | 8000-10000s/h |
Cardboard | 200-500g/m2 |
Corrugated Paper | ≤7mm |
Total Power | 9kw |
Total Weight | 3000kg |
Overall Dimensions(mm) | 5000*1960*1750 |
（When the roller pull out） | 5000*3160*1750 |
（m）Packaging dimensions | 3.1*2.1*2.2m |
Container | 20GP |
（kg）Net weight | 4000kg |
（kg）Gross weight | 5000kg |
The paper feeder parts is controller by the servo motor, the paper pile make the intermittent movement in the process of the paper feeding, the belts operate long life ,process the paper products to the conveying parts steady and orderly.

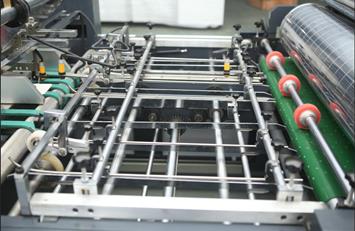

Conveying Section
Double paper servo control
The paper conveying parts installed the four conveying chains with the four pushing blocks, it can be adjusted according to the paper shape. It is equipped with the 4 photo sensor, detect the paper reaching condition, counting , paper jammed detection
Gluing Section
The gluing parts adopt the adjustable parts gluing structure , it is convenient for adjustable according to the paper requirement and the gluing position ,save the gluing quantity

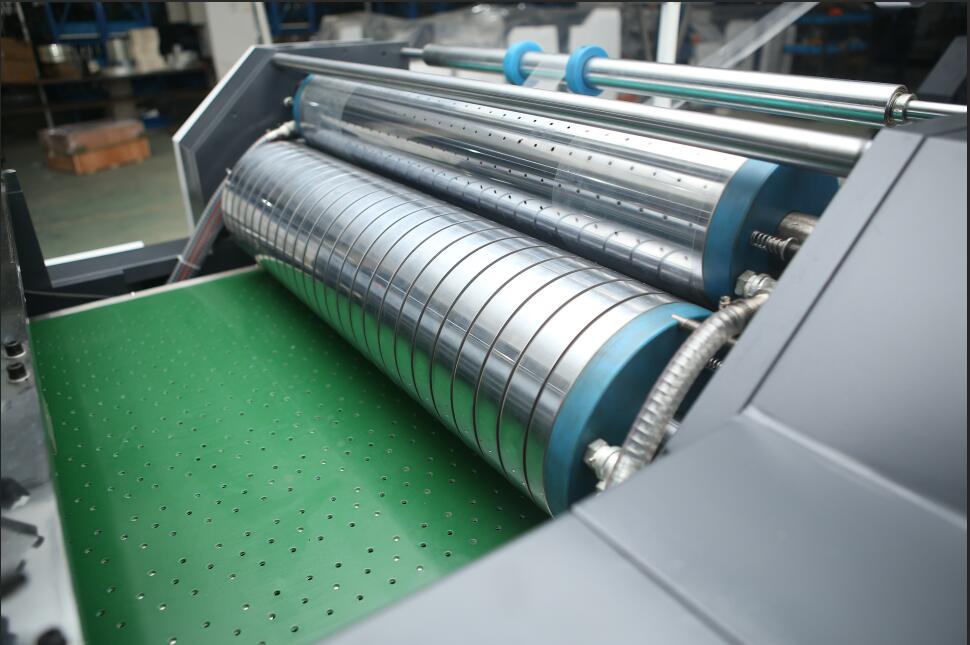

Film cutting Section
The upper roller is the film cutting roller with the two blade ,one the upper blade ,the other is the lower blade, finishing the cutting of the film
The below roller is the suction roller ,the film is patched on the suction roller

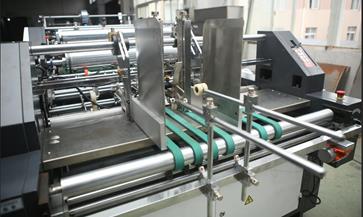

Paper collection section
The patching products conveying to the paper delivery plate, finish the paper accumulation and collection Paper delivery parts can be adjust single.
