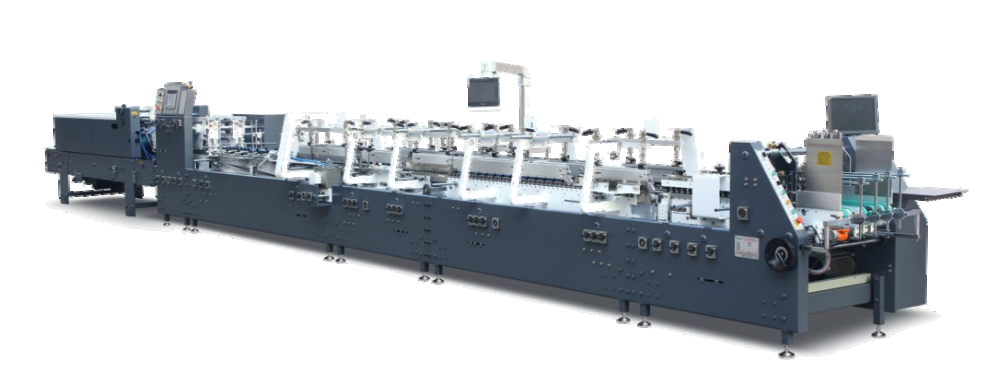

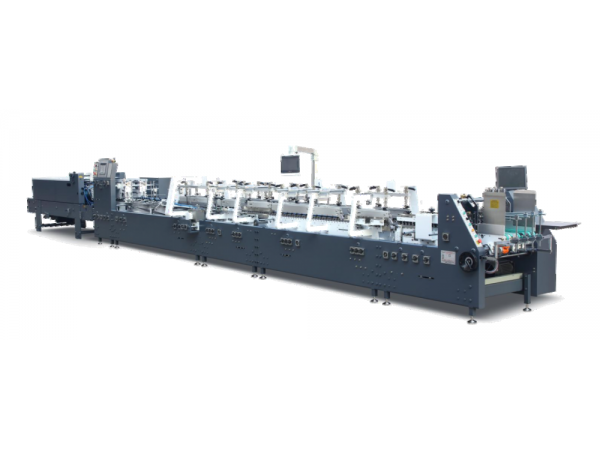

GS Automatic high speed folder gluer models are equipped with advanced state of the art technologies for fast job changeover, especially focussed on multi-type work capabili-ties with medium-long to shorter run lengths in mind.
Motorized carriers, full and sectional job/memory recall, new universal multi-function section with integrated bump & turn allows to turn cartons 90º and its alignment. Pre-breakers device by outer belts on both sides. New drives technologies, extra length crash lock bottom section. Extra folding & closing section with collapsible central carrier, able to produce complex carton structures, straigh line, lock bottom, 4 & 6 corner cartons and more. GS series machine has emerged with high automation and fully functional, which help box manufacturer to make the best use of paper material and improve efficiency of box producing.
We persist on innovative and High-performance. It help us to provide the most competitive gluing and folding equipment for all the customers!
MODEL | 650 | 800 | 1100 |
Paper material | Cardboard 210-800gsm A/B/E Flute | ||
Max.Speed | 400m/min | ||
Max.thickness of folded box | 12mm | 12mm | 12mm |
Way of folding | Fold 1 and fold 3 are 180°and 165° | ||
Power supply | 3P 380V 50HZ | ||
Blank width | 650mm | 800mm | 1100mm |

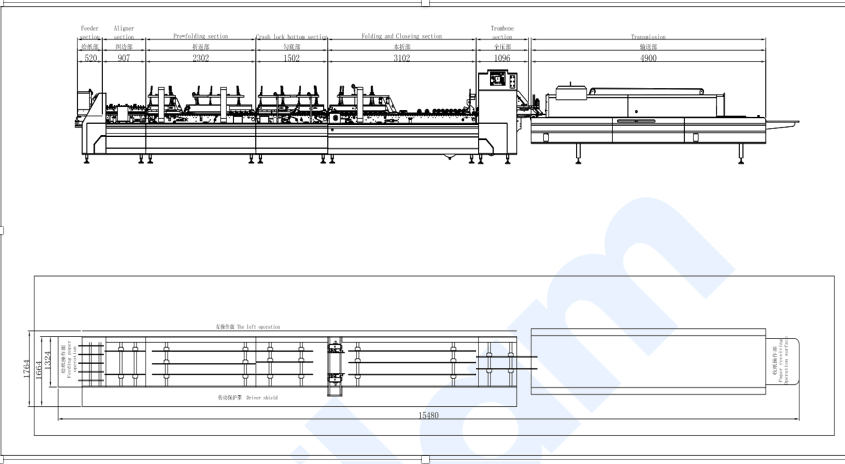

Length x Width x Height | 13x1.6x1.2m | 15x1.6x1.36m | 15x1.6x1.66m |
Net Weight | 5.5T | 6.5T | 7.5T |
Total power | 28.6kw | 31.18kw | 31.18kw |
