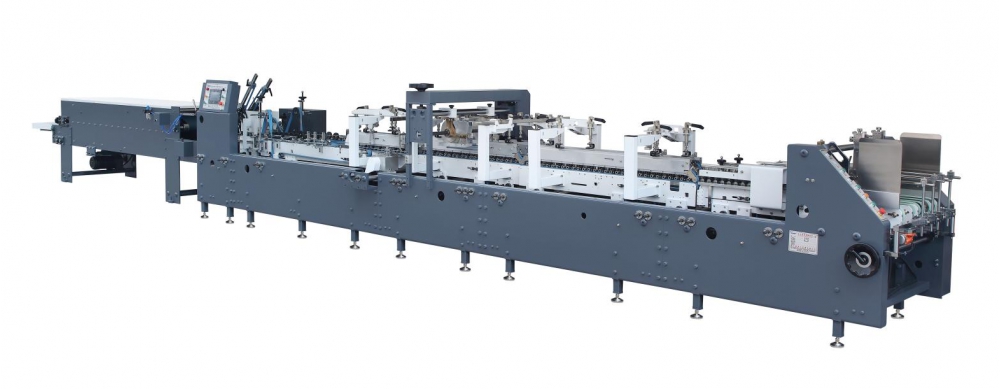

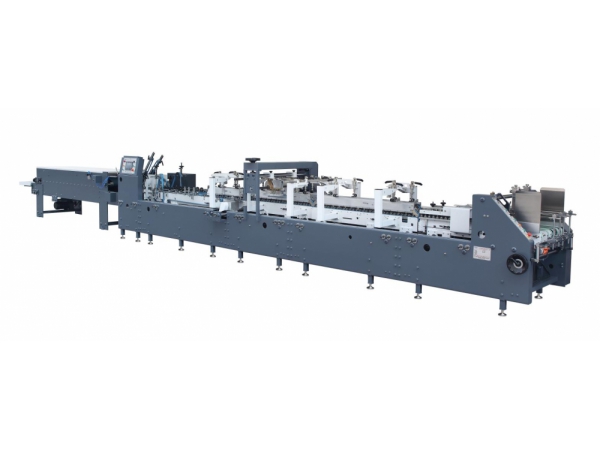

AS series box fdding gluing machine machine is an air-moving pressure bed device for edge-straightening hook, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt independent motor control, stable and easy to control and operate.
Technical Parameters
MODEL | 650 | 800 | 1100 |
Paper material | Cardboard 210-800gsm，E/N/F E/N/F Flute | ||
Max. speed | 300m/min | ||
Max .thickness of folded box | 12mm | 12mm | 12mm |
Way of folding | Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180° | ||
Power supply | 3P 380V 50HZ | ||
Blank width | 650mm | 800mm | 1100mm |
Length x Width x Height | 12x1.08x1.4m | 12x1.23x1.4m | 12x1.58x1.4m |
Net Weight | 4T | 4.5T | 5T |
Total power | 11.2kw | 12.7kw | 13.4kw |
