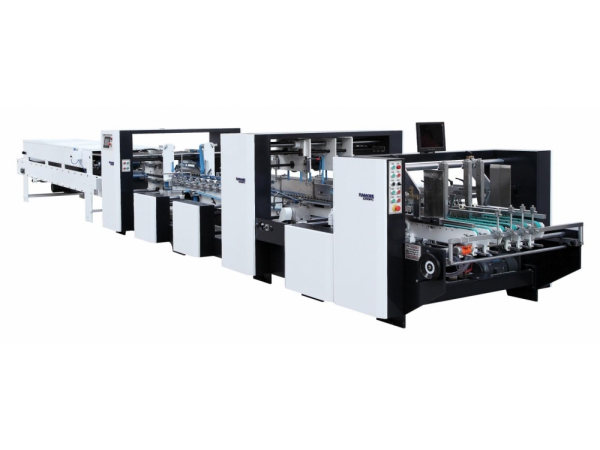

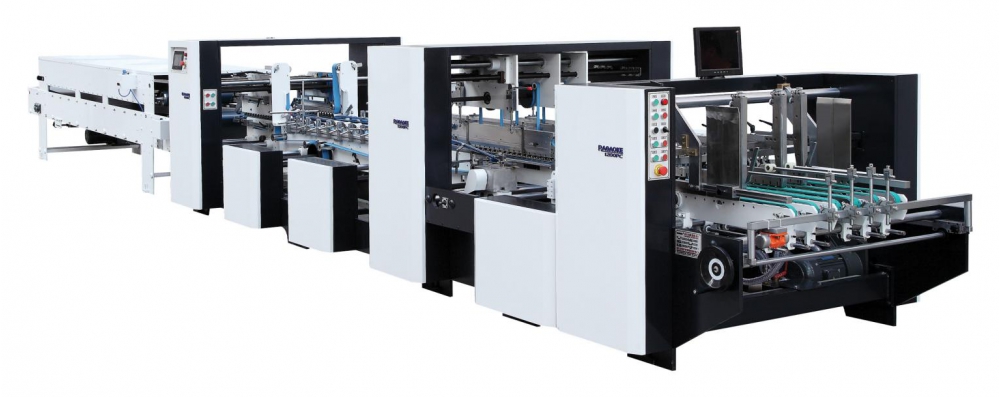

AC Automatic high speed folder gluer models focussed on multi-type work capabili-ties with medium-long to shorter run lengths in mind.
Series AC folding gluing machine , adopts advanced domestic technology, PLC and imported electronic components, feeding section adopt mechanic continuously variable, stable and easy to control and operate. The machine is especially designed for all kinds of cardboard, corrugated packaging boxes, has correction function, make corrugated boxes perfectly meet the requirements of auto packaging together. (We can customize of other size)
AC TECHNICAL PARAMETERS | |||
MODEL | 1200 | 1450 | 1600 |
Paper material | Cardboard 210-800gsm，A/B/E A/B/E Flute | ||
Max Speed | 260m/min | ||
Max.thickness of folded box | 12mm | 12mm | 12mm |
Way of folding |
fold 2 and fold 4 are 180° | ||
Power supply | 3P 380V 50HZ | ||
Blank width | 1200mm | 1450mm | 1600mm |
Length x Width x Height | 12.5x1.85x1.6m | 12.5x2.15x1.6m | 12.5x2.4x1.6m |
Net Weight | 6.5T | 7.5T | 8.5T |
Total power | 14.5kw | 19.5kw | 19.5kw |
Paper Feeding Section
1.Equipped with air suction function
2.Multi-stage rail to ensure the verticality of pressing board. To ensure that the paper feeding is not skewed, the unique structure keeps more simple and convenient adjustment of pressing board. Push structure make supporting cardboard adjustment more convenient and stable.
3.Baffle on the left and right can be adjusted upper and down to shorten adjusting and carton changing time.

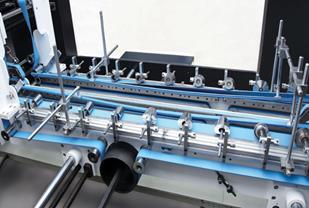

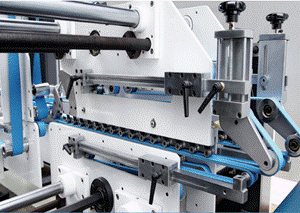

Aligner sectionion
The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

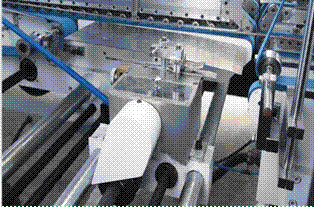

Lower gluing tank
1.3-board tracking structure, upper glue can make bottom-locked box automatic gluing and forming,
2.The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.
3.Bottom-folding speed is 50-200 pcs per min, stable and reliable.

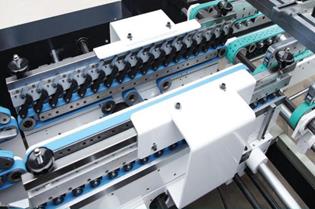

Folding and closing
2.Equipped with photo electronic counting device and kicking paper device, which can press the paper after accounting and make it easy to pack . Also equipped with feeding paper inspection device.

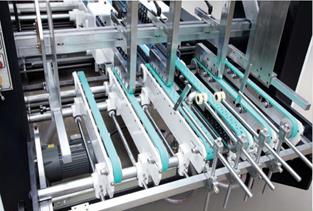

Trombone section
1.The folding is equipped with the driving belt. 2..Folding belts have corrective function.
3.Extension work, make the box forming more stable.
Transmission
1.waiting, when feeding is paused, press will auto enter into waiting state
2.Press has two functions
Travel switch, pause the machine in case of wrong collecting
Press: Equipped with one-touch pneumatic pressure adjustment, easy operation.
sample
Way of folding Three carriers
Carton type and size: |
| |||
Model | 1200Type | 1450Type | 1600Type
| |
A+B+C+D+E | 300-1200 | 350-1450 | 350-1600 | |
F | 70-900 | 70-900 | 70-900 | |
D+E | 140 | 170 | 170 | |
Straight-line type
