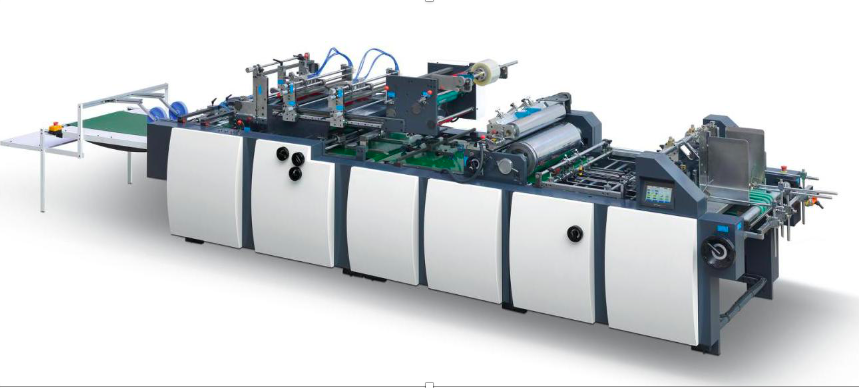

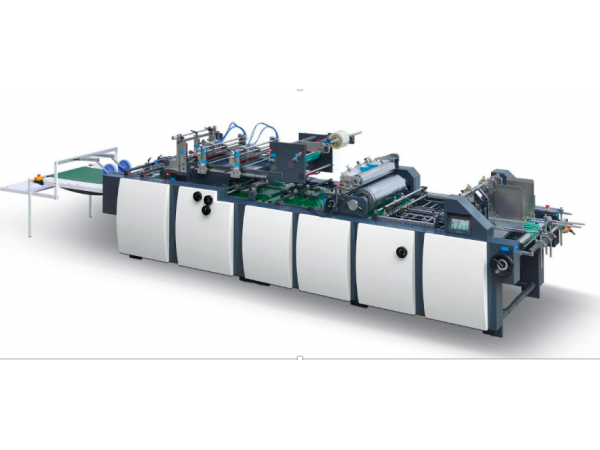

XY800 Corner cutting Window Patching Machine is widely used in the film patching to be package with or without the window of the wine box .gift box. napkin box. cosmetic box etc. It can also realize the function of the paper gluing ,film patching ,film cutting and paper collection before folding boxes. The machine has passed the ISO9001 Quality System Certificate and conform the European CE safety standard.
Technical Parameters
MODEL XY800 Cardboard G/㎡ 200-800g Corrugated paper mm ≤7mm Max.Working Speed PCS/H (Corner cutting)5000 (Normal cutting) 6000 Size of cardboard MM 140x140-800x650mm INCH 5.51x5.51-31.49x25.59 Size of window MM 65x30-350x330mm INCH 2.56x2.56-12.99x12.99 Film thickness MM 0.05-0.20mm Power Supply KW 15kw Weight KG 3200kg Overall Dimensions MM 7000x1600x1600mm
