Quick Details
Gearing Arrangement: Helical
Input Speed: ≤1500 (rpm)
Output Torque: 200-18000(N.m)
Output Speed: ≤393 (rpm)
Rated Power: 0.18-200 (kw)
Place of Origin: Zhejiang, China (Mainland)
Model Number: F series
material: cast iron housing
Brand Name: XINGHAIWANG
Color: other

certification: ISO9001:2008


By Industry

Packaging & Delivery
Packaging Details: standard export packing ,inner packing is opp bag, outside packing is wooden case, or According to the customer's requirements packaging.
Delivery Detail: 20 days after confirmation


Specifications
1.little vibration, low noise, energy-saving high;
2.short delivery term
3.flange and foot mounting
4.with all kinds of motor

Specifications
1.Parallel output, compact structure,   transmitting torque, smooth, low noise and long life.
2.mim:1set

Technical data
1.output torque:200-18000(N.m)
2.rated power:0.18-200(kw)
3.input speed:≤1500 (rpm)
4.output speed:≤393(rpm)
5.transmission ratio:≥3.81
6.series:2-3
7.install form:M1-M6

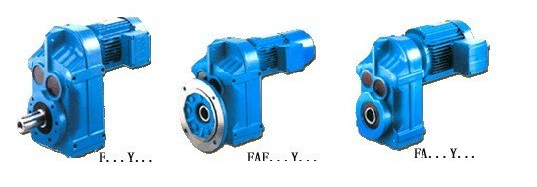

8.Model no. :F/FA/FF/FAF/FH(37/47/57/67/77/87/97/107/127/157)


Other:
1.Parallel output, compact structure, transmitting torque, smooth, low noise and long life.
2.Installation: base mounting, flange installation, torque arm  installation.
3.The basic level 2 input/output rotation direction contrary; same, tertiary,  Combination another consultation.

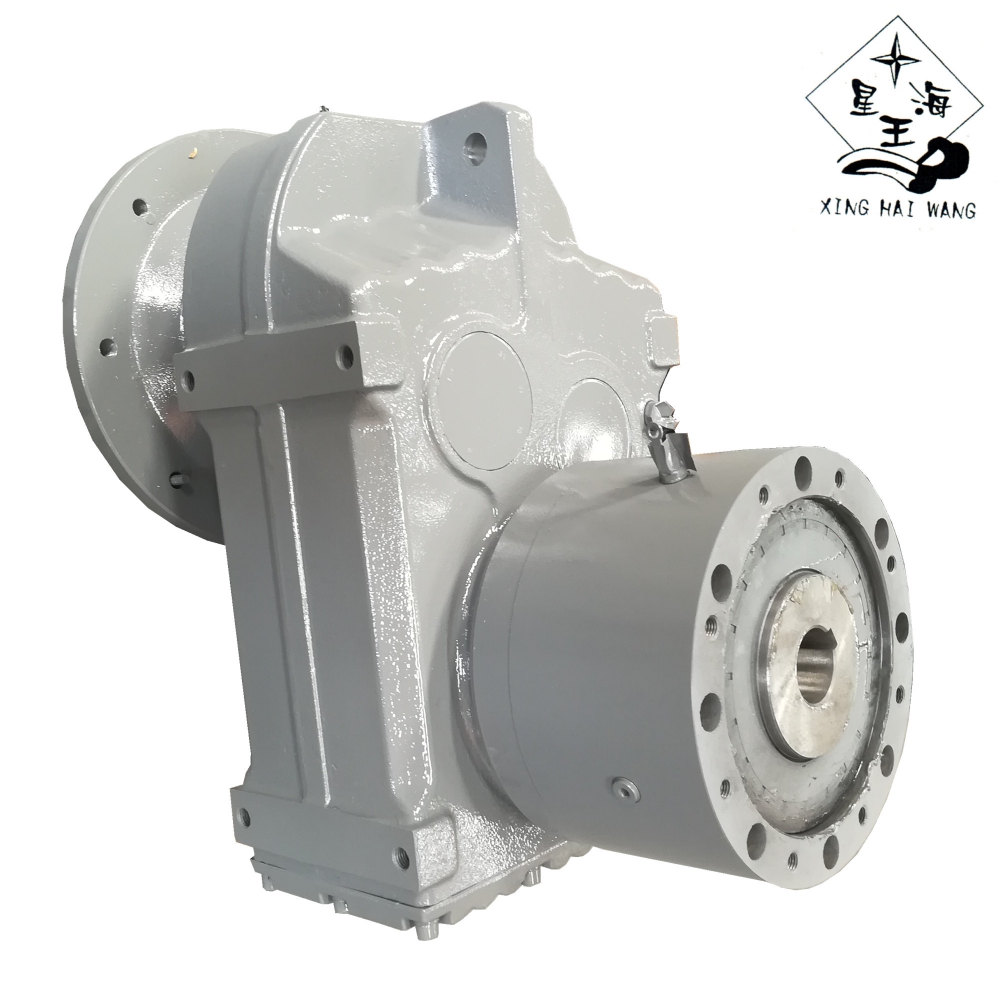

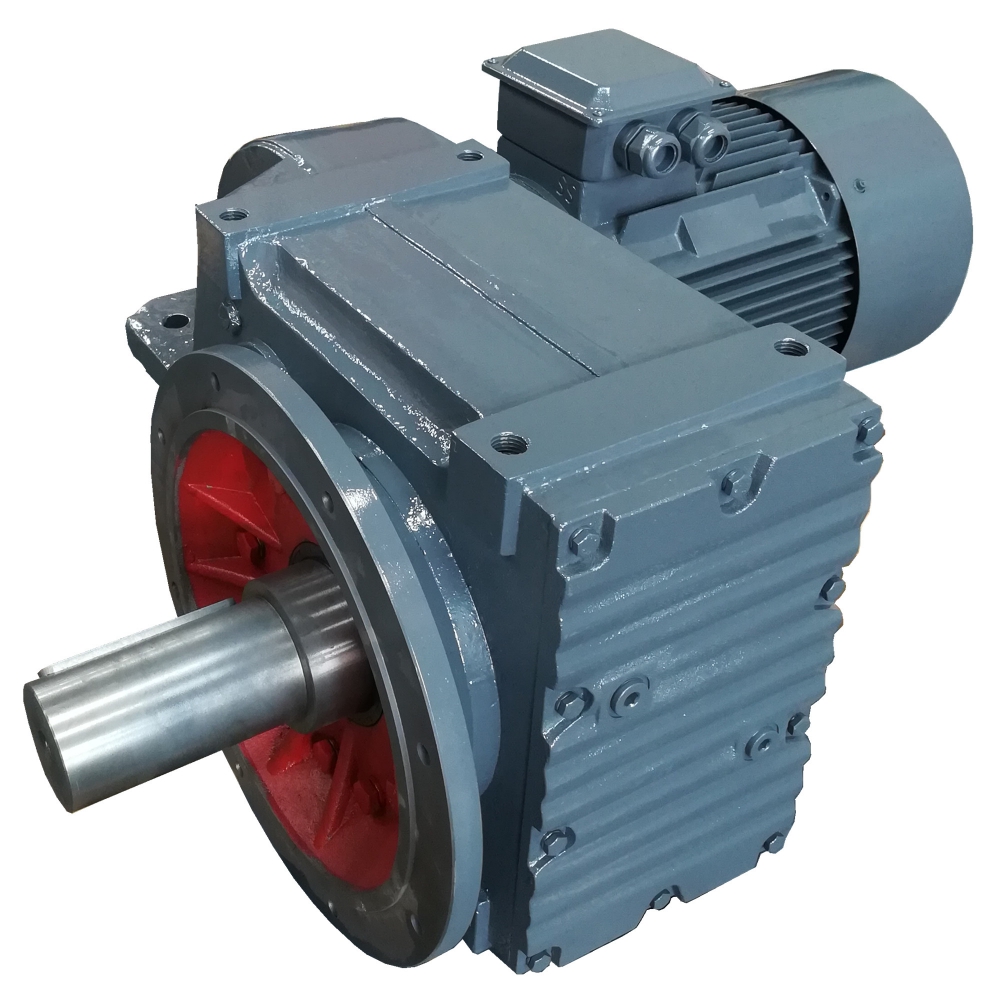

4.Output modes: the hollow shaft output or solid shaft output.


If you need any other style needs, please don't feel trouble direct  contact with me.


Parameters list

Type37475767778797107127157
Structure formF FA FF FAF FAZ
Input power(KW)0.18-30.18-30.18-5.50.18-5.50.37-110.75-221.1-302.2-457.5-9011-200
Transmission ratio3.81-128.515.06-189.395.18-199.704.21-228.994.30-281.714.12-270.684.68-280.766.20-254.404.63-172.1711.92-267.43
Allowable torque(N.m)20040060082015003000430078401200018000
gearbox Weight(kg)13183455901502604027001700
