1.with one shaft output or two shaft output ; 2.flange and foot mounting; 3.with some kinds of motor; 4.min qty: 1set;
Certification: ISO9001:2008

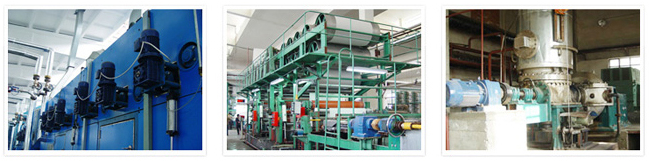

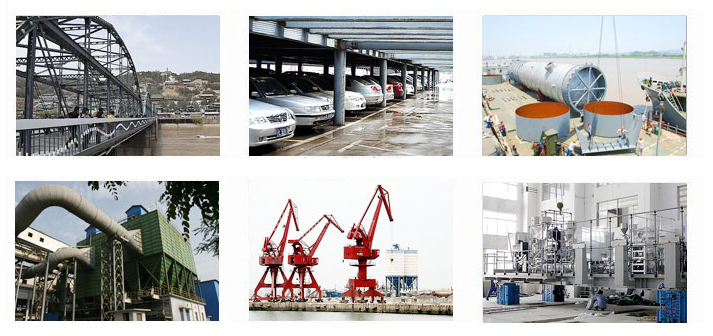

By Industry
Packaging & Delivery
Packaging Details: standard export packing ,inner packing is opp bag, outside packing is wooden case, or According to the
Delivery Detail: 20 days after confirmation
Specifications
1.little vibration, low noise, energy-saving high;
2.short delivery term
3.flange and foot mounting
4.with all kinds of motor
Specifications
1.with one shaft output or two shaft output ;
2.flange and foot mounting;
3.with some kinds of motor;
4.min qty: 1set;
Technical data
1,output torque:200-50000(N.m)
2,rated power:0.18-200(kw)
3,input speed:≤1500 (rpm)
4,output speed:≤280(rpm)
5,transmission ratio:≥5.36
6,series:3
7,install form:M1-M6
8,Model no. :K/KA/KF/KAF/KH/KHF(37/47/57/67/77/87/97/107/127/157/167/187)
Other
1.Driving in a variety of forms: motor straight league, user with motor, pulley, wheel drive, couplings straight league drive, the handwheel device etc
2.Output in a variety of forms: can hollow shaft output and solid shaft output, hollow shaft flange and solid shaft flange, hollow shaft torque arm type, solid shaft torque arm type, etc
3.Installed in a variety of forms: can base mounting, flange installation, torque arm installation, etc
If you need any other style needs, please don't feel trouble direct contact with me.
Parameters list
Type | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 | 167 | 187 |

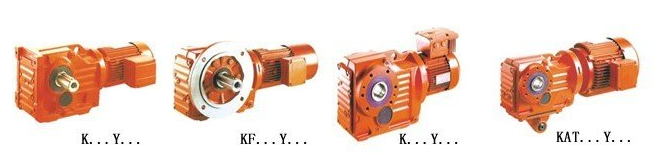

Structure form | K KA KF KAF KAZ KAT KAB | |||||||||||
Input power(KW) | 0.18-3 | 0.18-3 | 0.18-5.5 | 0.18-5.5 | 0.37-11 | 0.75-22 | 1.1-30 | 3-45 | 7.5-90 | 11-160 | 11-200 | 18.5-200 |
Transmission ratio | 5.36-106.38 | 5.81-131.87 | 6.57-145.14 | 7.14-144.79 | 7.24-192.18 | 7.19-197.37 | 8.95-176.05 | 8.74-1410.46 | 8.68-146.07 | 12.65-150.41 | 17.28-163.91 | 170.27-180.78 |
Allowable torque(N.m) | 200 | 400 | 600 | 820 | 1550 | 2700 | 4300 | 8000 | 13000 | 18000 | 32000 | 50000 |
Weight(kg) | 11 | 20 | 27 | 33 | 57 | 85 | 130 | 250 | 380 | 610 | 1015 | 1700 |
