Quick Details
Gearing Arrangement: Cycloidal
Input Speed: ≤1500 (rpm)
Output Torque: 70-12000(N.m)
Output Speed: ≤1500 (rpm)
Rated Power: 0.18-229kw)
Place of Origin: Zhejiang, China (Mainland)
Model Number: B series
material: cast iron housing
Brand Name: XINGHAIWANG
Certification: ISO9001:2008

By Industry


Packaging & Delivery
Packaging Details: standard export packing ,inner packing is opp bag, outside packing is wooden case, or According to the customer's requirements packaging.
Delivery Detail: 20 days after confirmation

Specifications
1,little vibration, low noise, energy-saving high;
2,short delivery term
3,flange and foot mounting
4,with all kinds of motor

Specifications

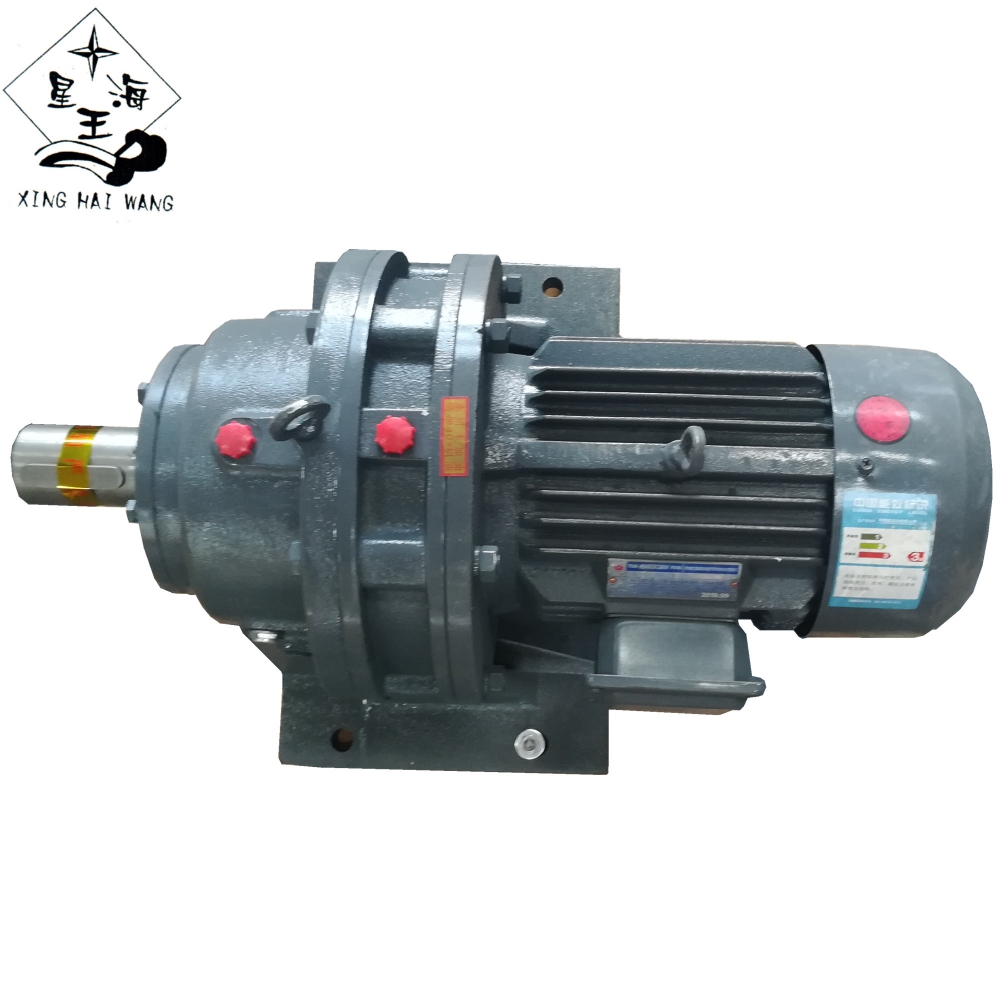

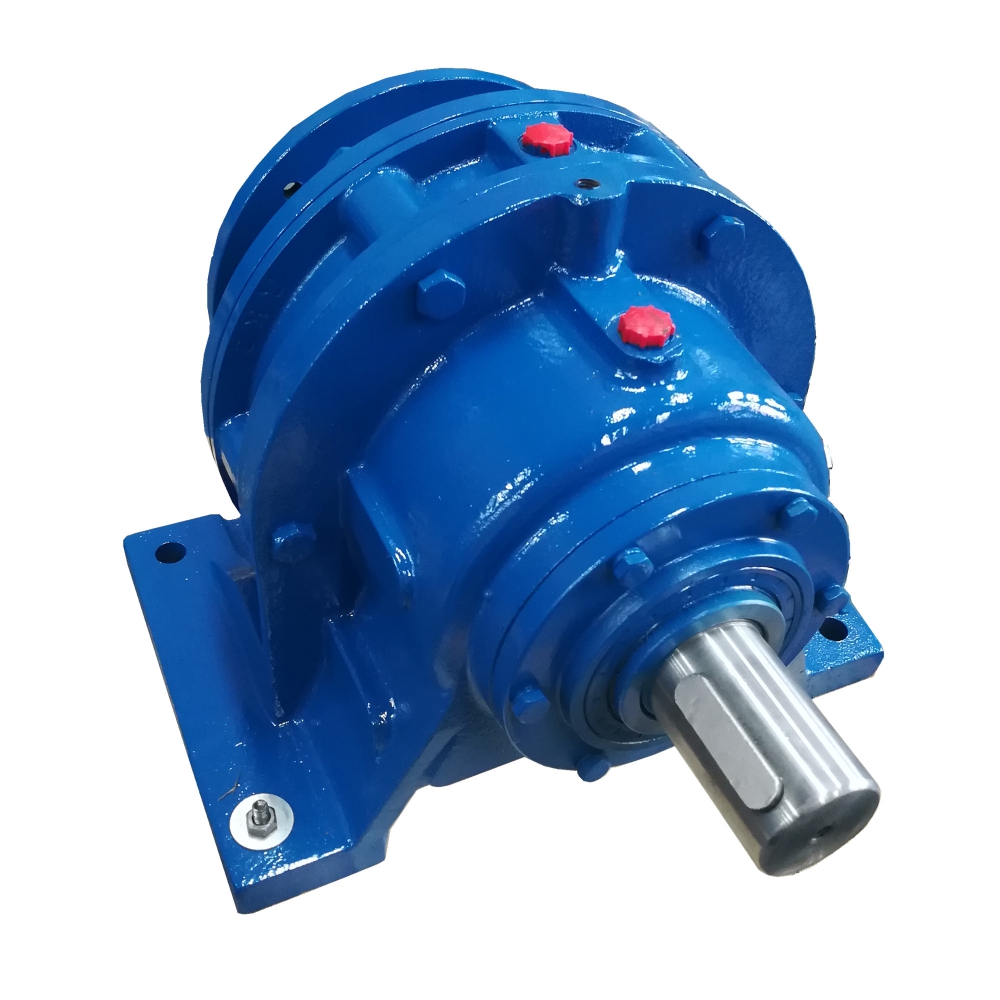

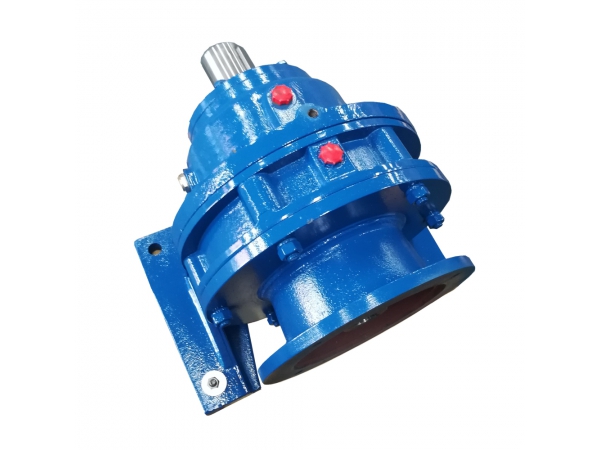

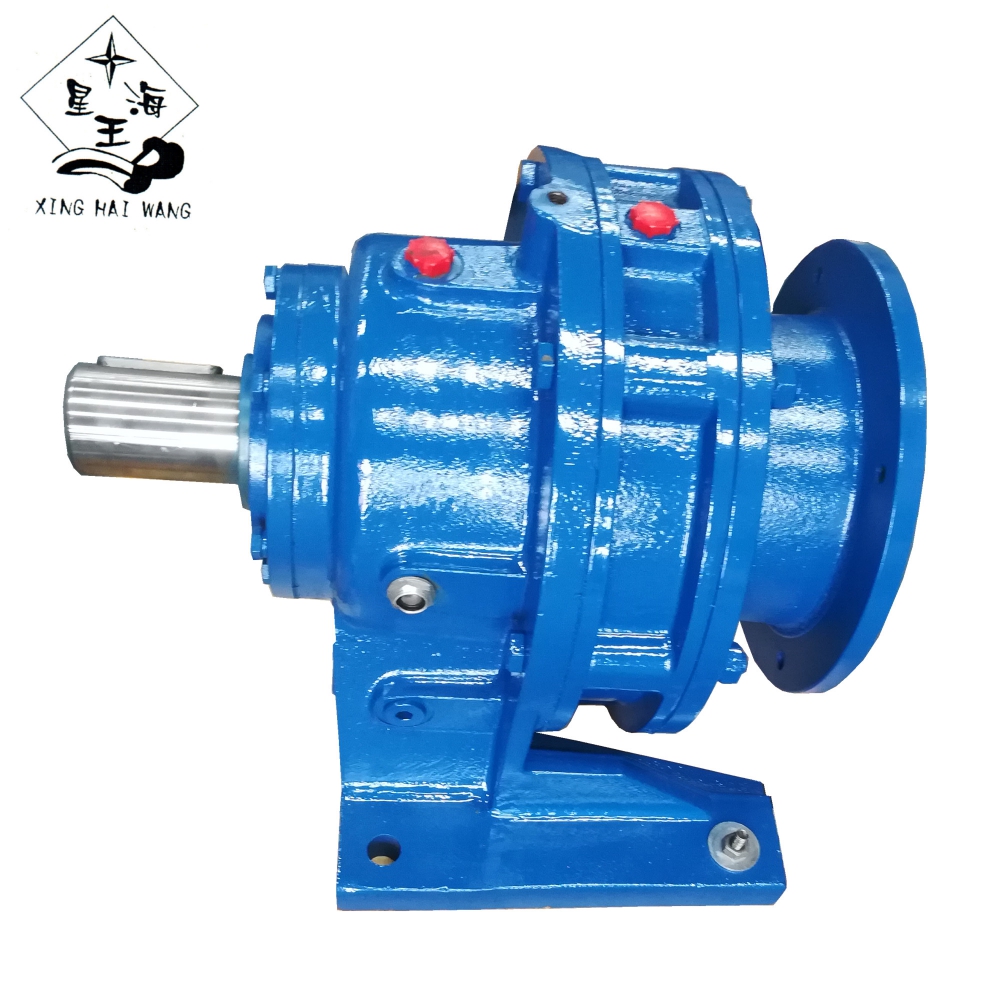

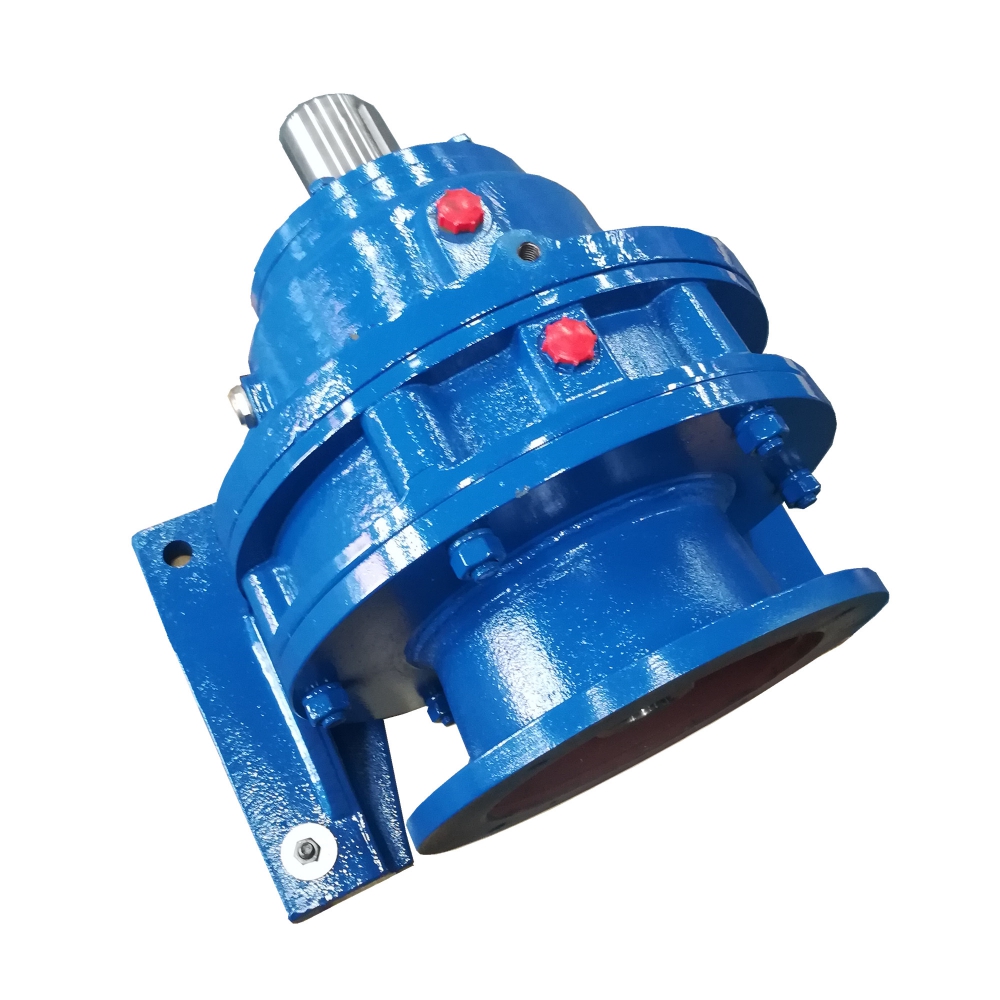

B series cycloidal pin wheel reducer is small size;compact;high efficiency..


Technical data
1,output torque:90-4000(N.m)
2,rated power:0.18-22(kw)
3,input speed:≤1500 (rpm)
4,output speed:≤1500(rpm)
5,transmission:≥9-7569
6,series:1-2
7,install form:W/Y/C/P/L/D/S/X
8,Model no. :BL/BW/BLE/BLY/BWE/BWY(09-7)

Structure
The speed reducer all transmission device is divided into: input, deceleration, output three parts. The speed reducer with Y series special motors and Y series special motors derived come together, form straight league type reducer.

Features
1, slow, slow speed than the big: level than is l / 9-1/87, two level per hour for 1 / deceleration than 121 - l / 7569, can be used according to need more multistage combination.
2, high transmission efficiency: because of meshing parts adopt the scroll meshing, efficiency can reach 90%.
3, compact structure: because of planeary, input shaft and the output shaft, and in the same axis with motor straight league, so it has small volume, light weight features.
4, stable operation: the course of transmission gear meshing for many, so smooth running, low noise.
5 and disassembling convenient, easy maintenance: due to structural design is reasonable, so disassembling simple facilitate maintenance.
6, low malfunction, long life: the machine is transmission mesh piece using bearing steel quenching process, but also adopted the rolling friction, thus the machine high reliability, long life.
7 and the overload ability strong, impact resistance, inertia is small, be applicable to the frequent starting and positive &negative.

If you need any other style needs, please don't feel trouble direct contact with me.
