T -level helical bevel gear reducer, many varieties. All for actual transmission. Average efficiencies 98%
Certification: ISO9001:2008

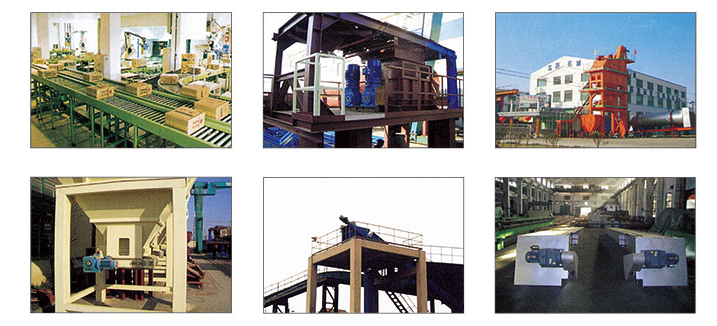

By Industry
Packaging & Delivery
Packaging Details: standard export packing ,inner packing is opp bag, outside packing is wooden case, or According to the customer's requirements packaging.
Delivery Detail: 20 days after confirmation
Specifications
1,little vibration, low noise, energy-saving high;
2,short delivery term
3,flange and foot mounting
4,with all kinds of motor
Specifications
1,T -level helical bevel gear reducer, many varieties. All for actual transmission. Average efficiencies 98%
2,min:1set
Technical data
1.output torque:11.6-5713(N.m)
2.rated power:0.014-5713(kw)
3.input speed:≤10-1450 (rpm)
4.output speed:≤10-1450(rpm)
5.transmission:≥1-5
6.series:1
7.install form:see attchment

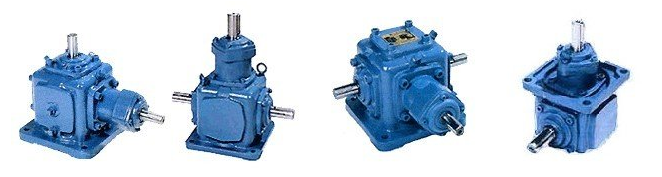

8.Model no. :T2/T4/T6/T7/T8/T10/T12/T16/T20/T25

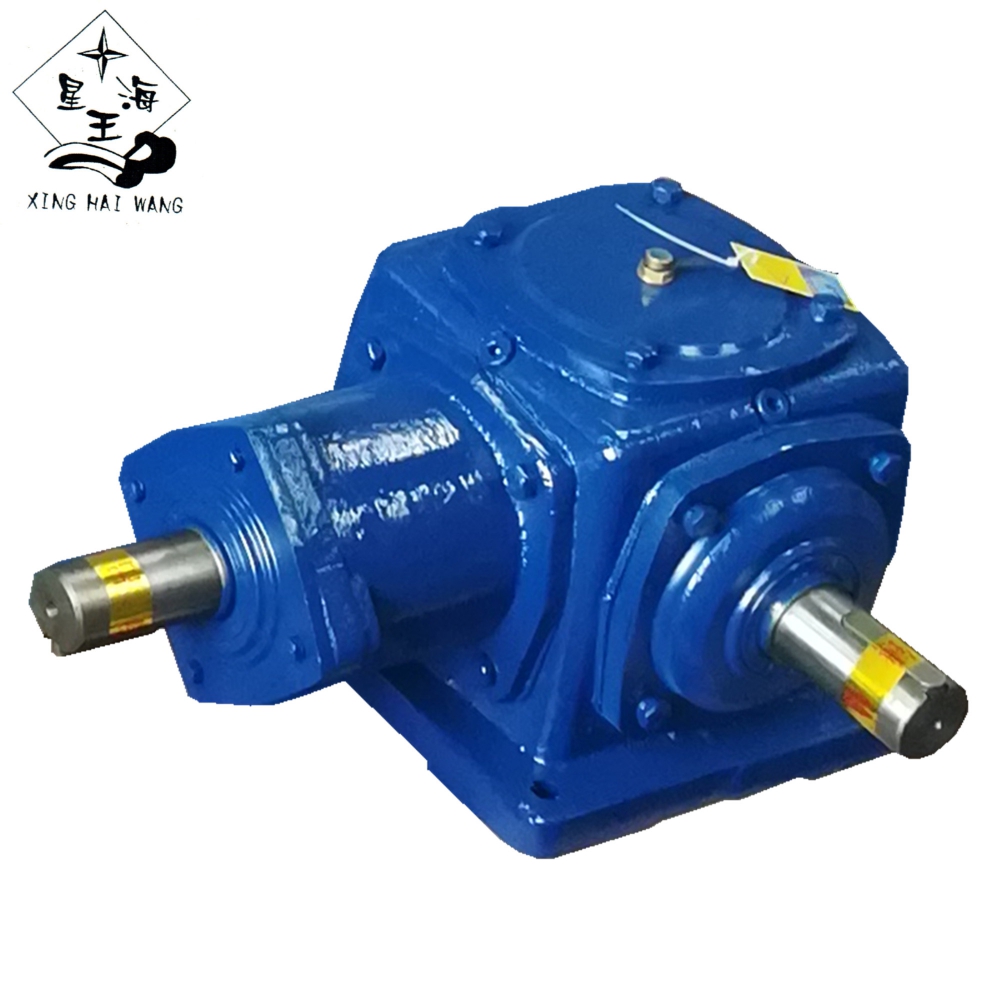

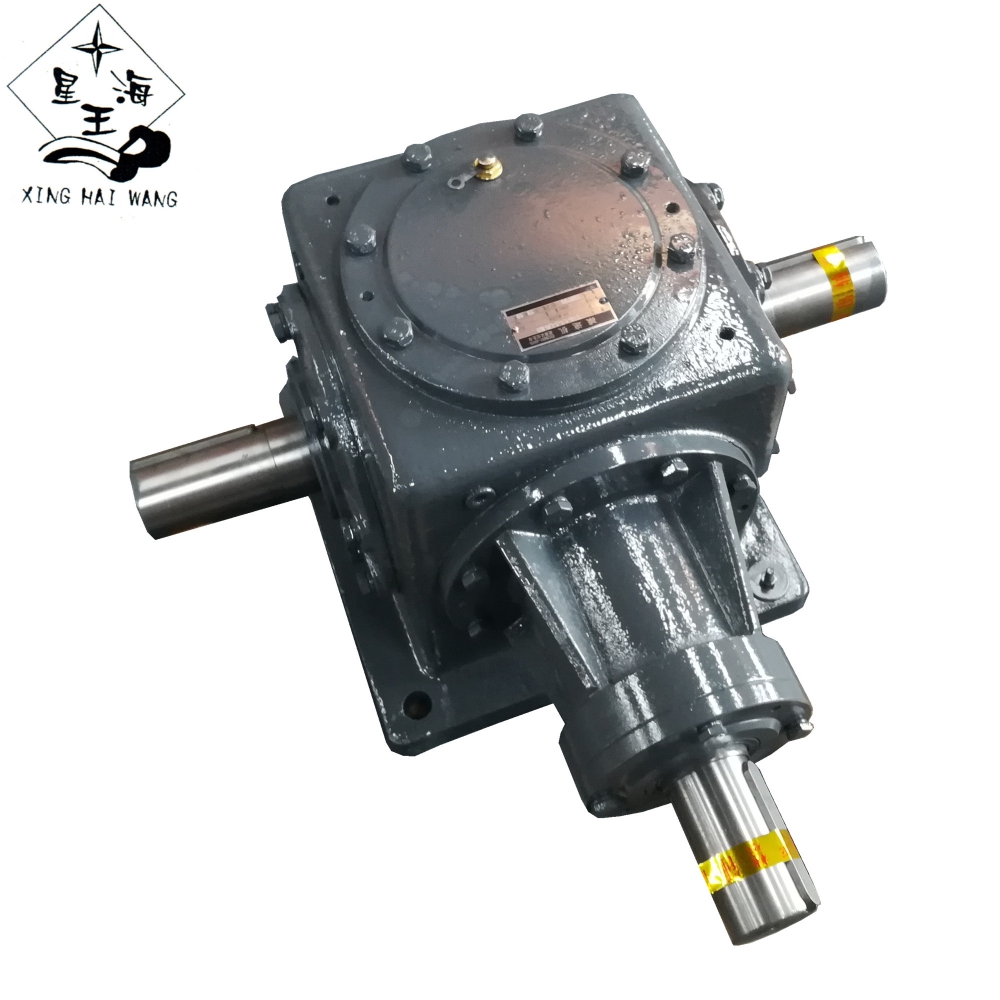

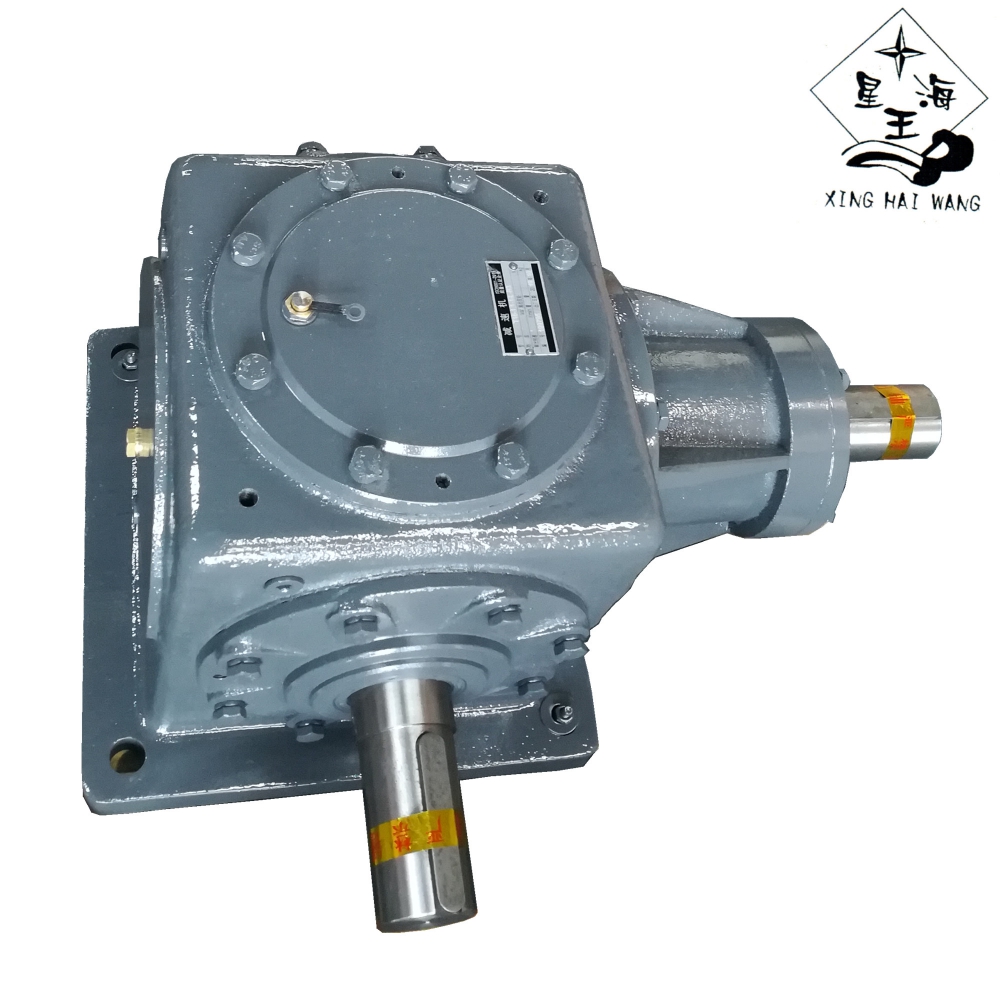

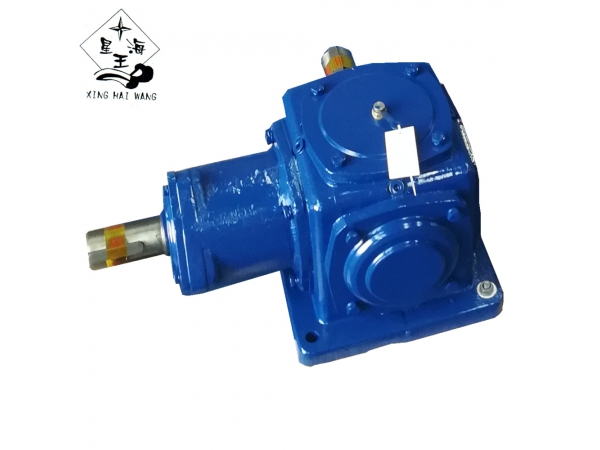

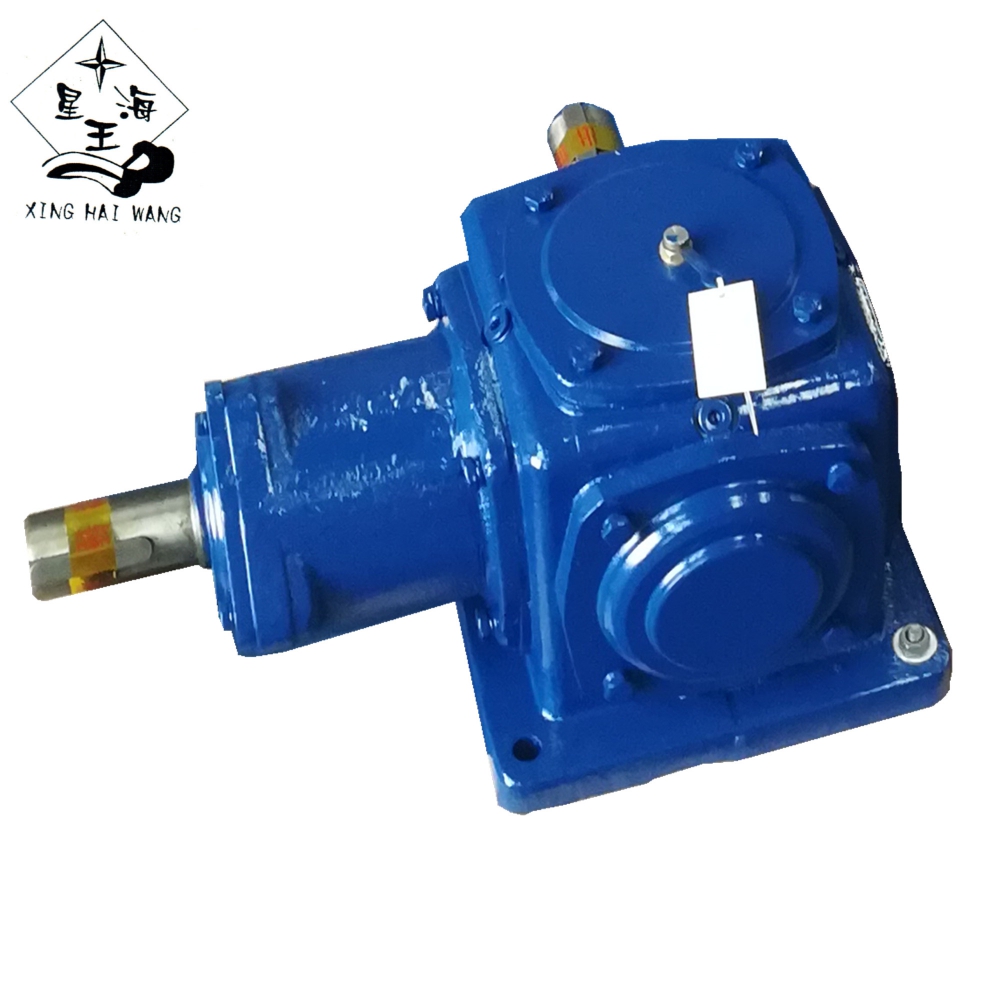

T series spiral bevel gear commutator product features:
1, chassis: using high rigidity FC - 25 iron casting;
2, gear: adopt high quality high grade synthetic diamond 50CrMnT piece.modified processing, steel by carburizing quench treatment and grinding and become;
3, spindle: adopt high quality high purity steel alloy 45Cr piece.modified processing, have high heavy load capacity.
4, bearing a heavy load capacity, equipped with the roll cone bearing;
5, oil seal: imported double lip seal with high dustproof prevent leakage ability.
Product lubrication
T series spiral bevel gear commutator proper lubrication, can play the steering and improve the operation efficiency, the life.
1, initial use two weeks or 100 or 200 hours, for early period, the attrition between abrasion might be a little metal powder, be sure to clean internal, and change new lubricating oil;
2, use for a long time, every half year - a year or 1000-2000 hours replacing a lubricating oil.
