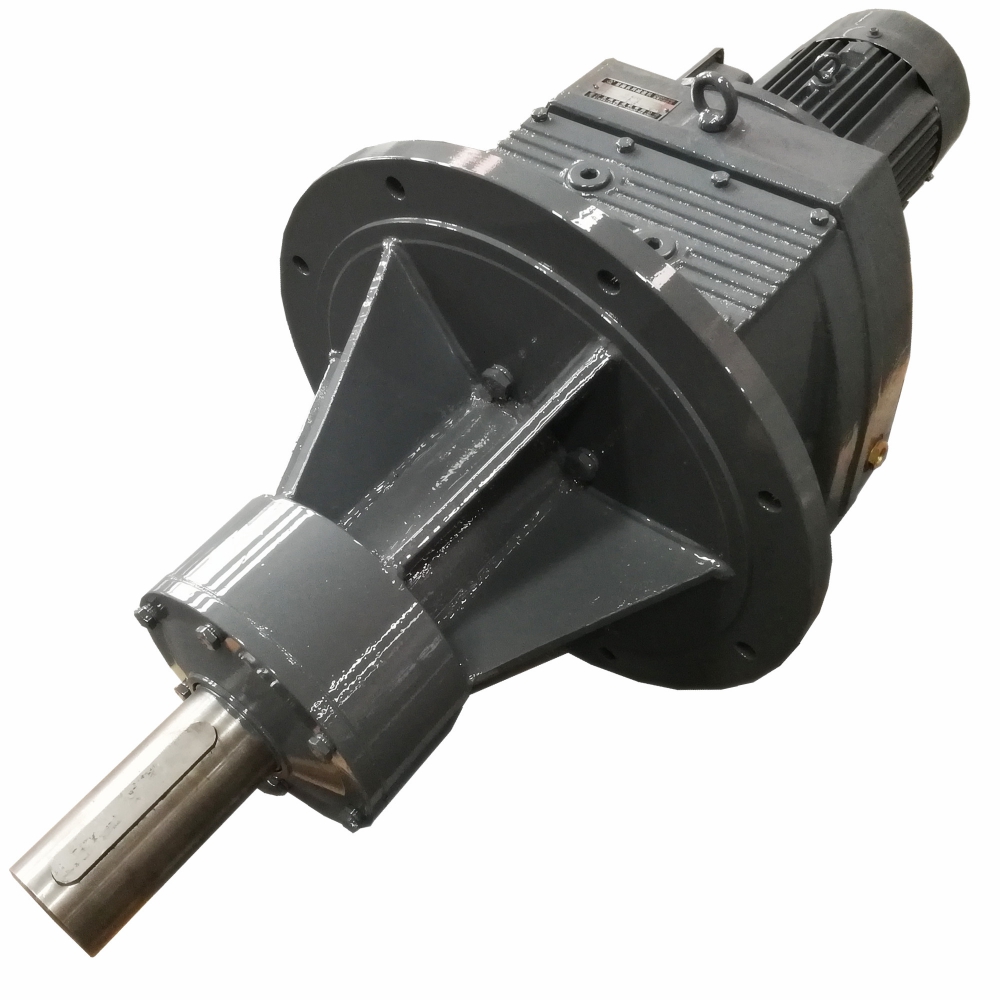

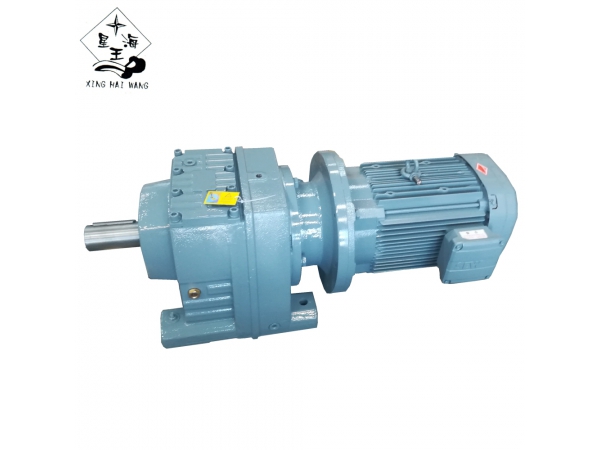

1.Install form :MI-M6(see below photo) 2.Input speed :≤1500(RPM) 3.output speed :≤392(RPM) 4.rated power :0.18-160 (kw) 5.output torque :85-18000(N.m) 6.series :2-3 7.transmission ratio:≥3.83
PRODUCTS DETAIL
Gearing Arrangement: Helical | Output Torque: 85-18000(N.m) |
Input Speed: 1500 (RPM) | Output Speed: 392 (RPM) |
Model Number: R series | Brand Name: XINGHAIWANG |
Material: cast iron housing | Certification: ISO9001:2008 |
Rated Power: 0.18-160 (kw) | Place of Origin: Zhejiang, China (Mainland) |

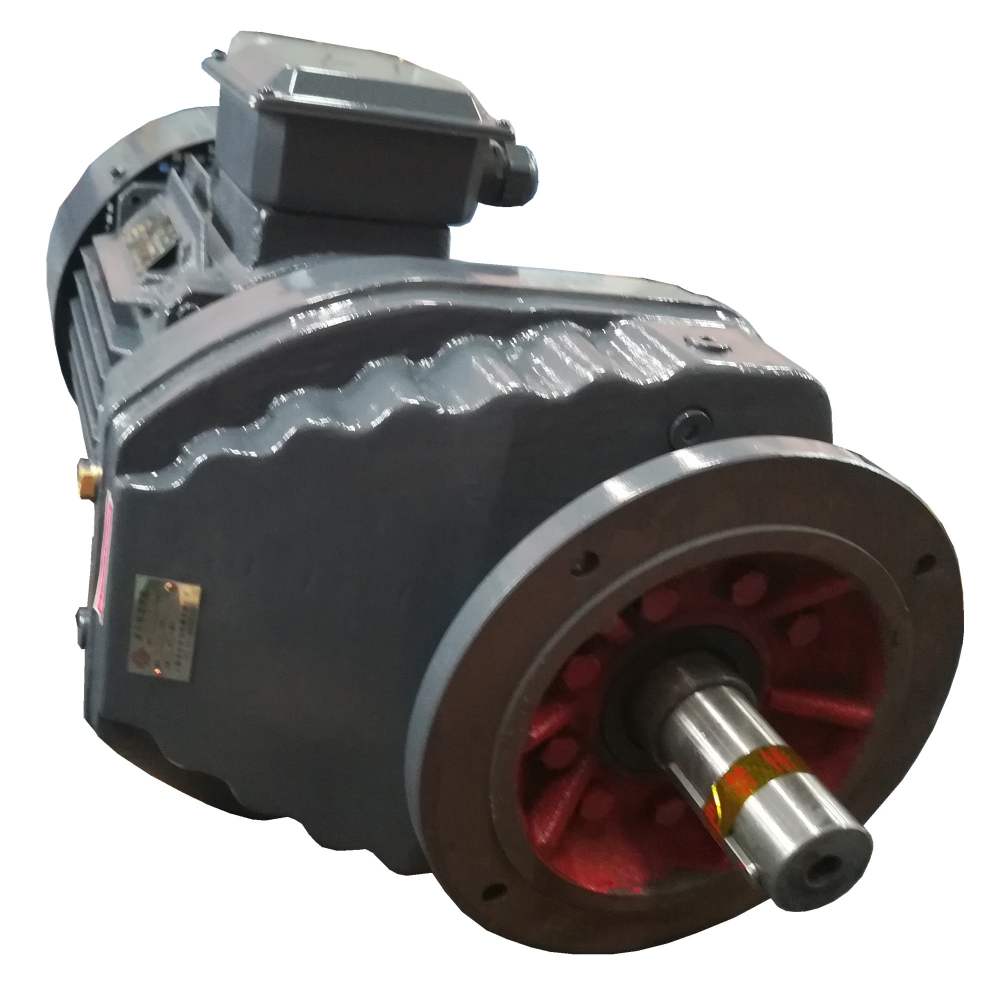

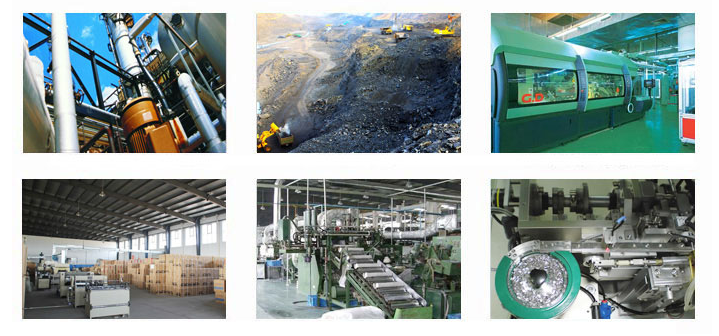

By Industry
Packaging & Delivery
Packaging Details: standard export packing ,inner packing is opp bag, outside packing is wooden case, or According to the
Delivery Detail: 20 days after confirmation
Specifications
1.little vibration, low noise, energy-saving high;
2.short delivery term
3.flange and foot mounting
4.with all kinds of motor
Technical parameters

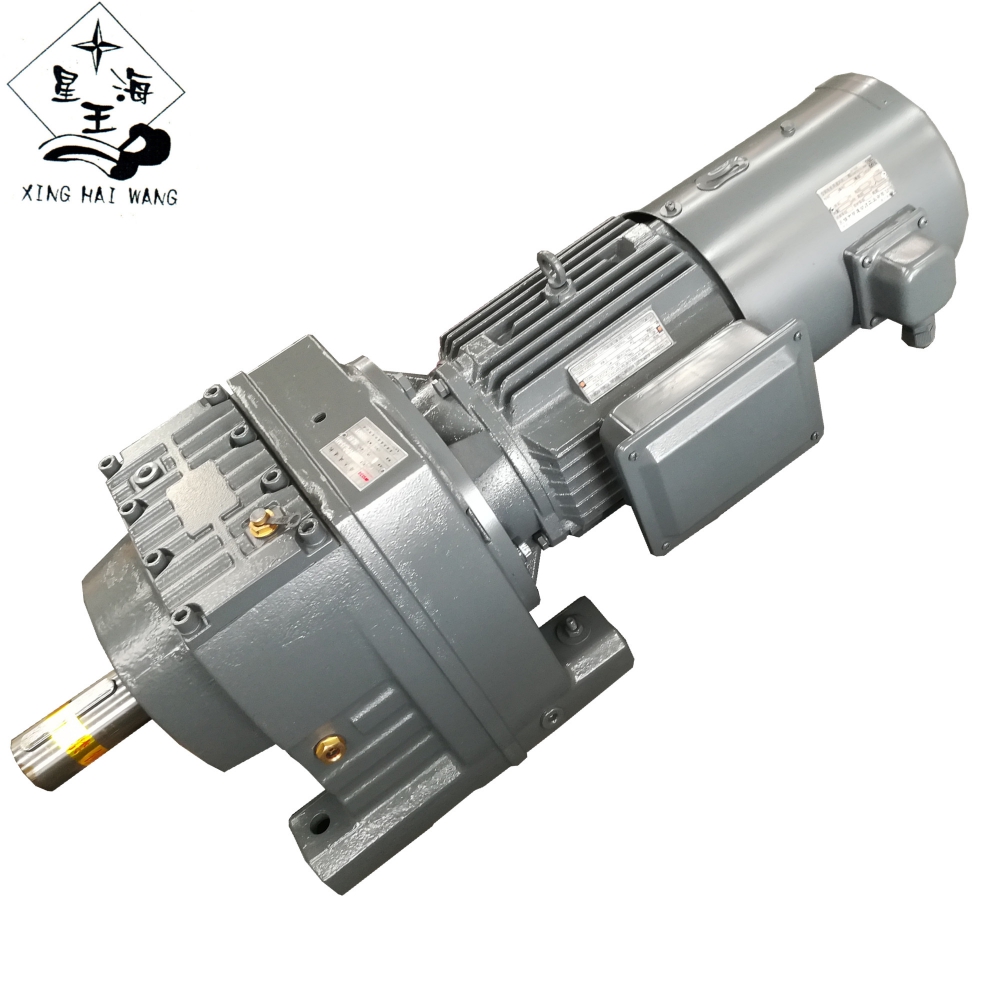

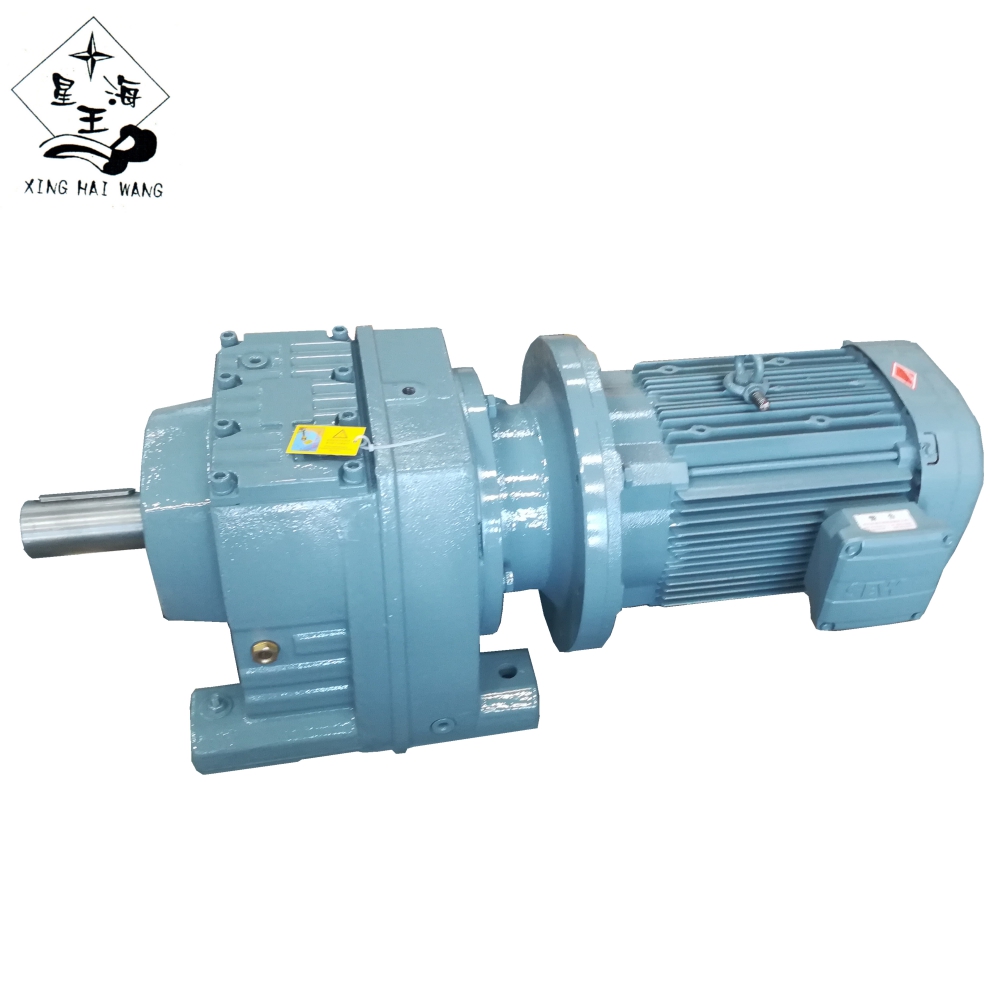

1.Install form :MI-M6(see below photo)
2.Input speed :≤1500(RPM)
3.output speed :≤392(RPM)
4.rated power :0.18-160 (kw)
5.output torque :85-18000(N.m)
6.series :2-3
7.transmission ratio:≥3.83
8.model no.:R/RF/RM(17/27/37/47/57/67/77/87/97/107/137/147/167)
Products overview
1. R series coaxial type inclined gear with international technical requirements manufacturing, has the very high technology content
2. save a space, reliable and durable, bear overload ability, power can reach high 132KW;
3. low energy consumption, superior performance and reducer efficiency of over 95%;
4. little vibration, low noise, energy-saving high;
5. select high-quality forging steel materials, cast iron box, gear surface rigidity by high-frequency heat treatment;
6. precision machined, ensure shaft parallelism and positioning bearing requirements, form helical gear transmission assembly equipped with various reducer class motor, combination becomes electromechanical integration, fully guarantee the product quality characteristics.
Parameter List
Type | 17 | 27 | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 137 | 147 | 167 |
Structure form | R RF | ||||||||||||
Input power(KW) | 0.18-0.75 | 0.18-3 | 0.18-3 | 0.18-5.5 | 0.37-7.5 | 0.75-7.5 | 0.18-11 | 0.55-18.5 | 0.55-30 | 2.2-45 | 5.5-55 | 11-90 | 11-160 |
Transmission ratio | 3.83-74.84 | 3.37-135.09 | 3.33-134.82 | 3.83-176.88 | 4.39-186.89 | 4.29-199.81 | 5.21-195.24 | 5.36-246.54 | 4.49-289.74 | 5.06-249.16 | 5.15-222.60 | 5.0-163.31 | 10.24-229.71 |
Allowable torque(N.m) | 85 | 130 | 200 | 300 | 450 | 600 | 820 | 1550 | 3000 | 4300 | 8000 | 13000 | 18000 |
gearbox Weight(kg) | 4 | 5.5 | 8.5 | 10 | 18 | 25 | 36 | 63 | 101 | 153 | 220 | 4000 | 700 |
