Quick Details
Gearing Arrangement: Helical
Input Speed: ≤1500 (RPM)
Output Torque: 90-4000 (N.m)
Output Speed: ≤146(RPM)
Rated Power: 0.18-22 (kw)
Place of Origin: Zhejiang, China (Mainland)
Model Number: S series
color: other
Shaft material: 45Cr
Brand Name: XINGHAIWANG
Housing material: cast iron housing
Input form: IEC flange, inline with motor, solid shaft
certification: ISO9001:2008
Gear material: 2CnSn10Pbl
Output form: solid shaft , hollow shaft

Mounting: Foot , Flange


By Industry

Packaging & Delivery
Packaging Details: standard export packing ,inner packing is opp bag, outside packing is wooden case, or According to the
Delivery Detail: 20 days after confirmation

Specifications
1.little vibration, low noise, energy-saving high;
2.short delivery term
3.flange and foot mounting
4.with all kinds of motor


Specifications
1.with one shaft output or two shaft output ;
2.flange and foot mounting;
3.with some kinds of motor;
4.min qty: 1set;


Technical data
1.output torque:90-4000(N.m)
2.rated power:0.18-22(kw)
3.input speed:≤1500 (rpm)
4.output speed:≤146(rpm)
5.transmission ratio:≥10.27
6.series:2
7.install form:M1-M6
8.Model no. :S/SA/SF/SAF/SH/SHF(37/47/57/67/77/87/97)

Summary
A small volume, light weight, compact structure, bearing capacity is strong
B smooth operation, little vibration, low noise, low temperature rise
C block structure, combination convenient, strong commonality


If you need any other style needs, please don't feel trouble direct contact with me.

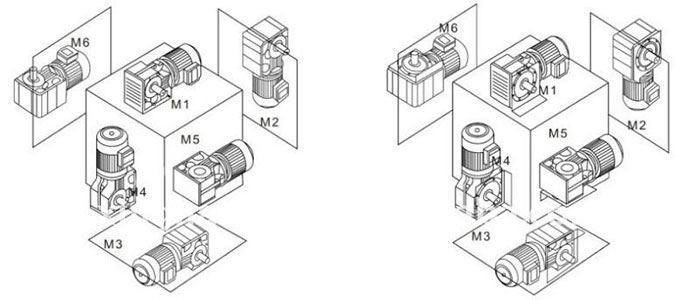

Install form



Parameters List

TYPE

37

47

57

67

77

87

97

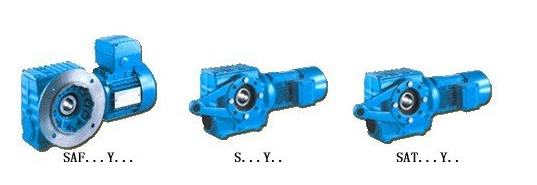

Structure form

S SA SF SAF SAT SAZ

Input power(kw)

0.18-0.75

0.18-1.5

0.18-3

0.25-5.5

0.55-7.5

7.5-15

1.5-22

Transmission ratio

10.27-165.71

11.46- 244.74

10.78- 196.21

11.55- 227.20

9.96- 241.09

11.83- 223.26

12.75- 230.48

Torque(N.m)

90

170

300

520

1270

2280

4000

Weight(kg)

7

10

14

26

50

100

170
