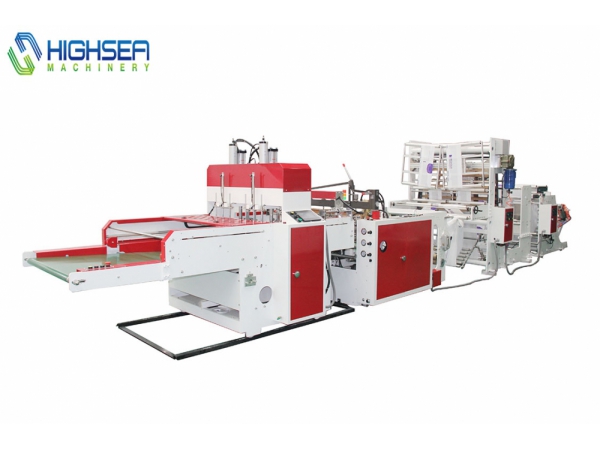

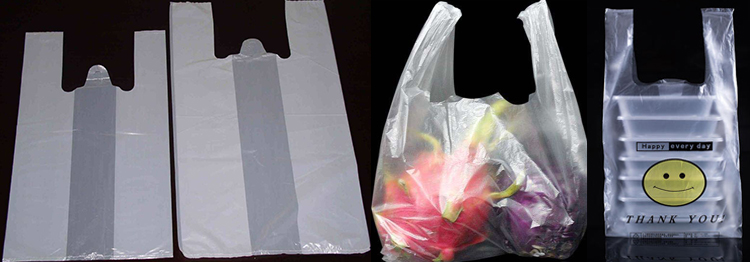

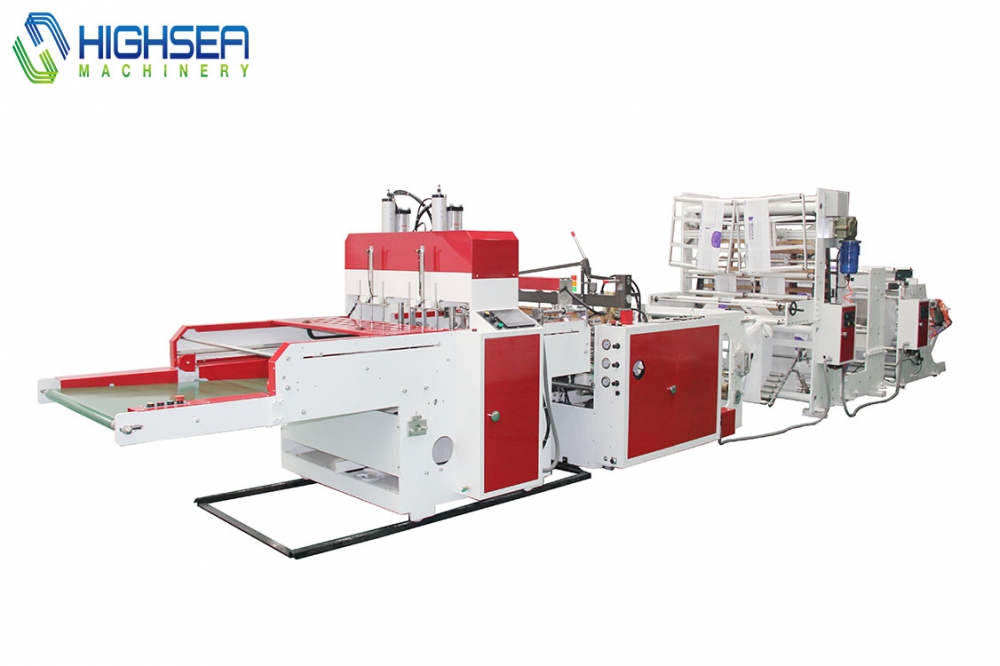

HSCB-900 is special design for silting and sealing, 1 pcs big jambo roll slit and cut into 2 small rolls in high speed production. 2 independent computers control design and driven by 5.5KW servo motor. This machine is also Suitable for producing disposable plastic T-shirt bags.
Unwinder first, then slit and seal, heat sealing and heat cutting, punching at last. HIGH SEA factory can make two lines and four lines of this side gusset T-shirt carry bag maker. Machine can run for more than 200pcs per minute, which is fit for the most market order requirements.
HIGH SEA, MAKE BAG FORMING MORE EASY.
Model | HSCB-1100 |
Bag Width | 200mm - 380 mm |
Bag Length | 330mm - 650 mm |
Mother Roll Width | 1000mm (Max) |
Film thickness | 10-35µm per layer |
Production Speed | 100-230pcs/min X2 Lines |
Set Line Speed | 80-120m/min |
Film Unwind Diameter | Φ800mm |
Total Power | 16KW |
Air consumption | 5HP |
Machine Weight | 3800KG |
Machine Dimension | L11500*W1700*H2100mm |
