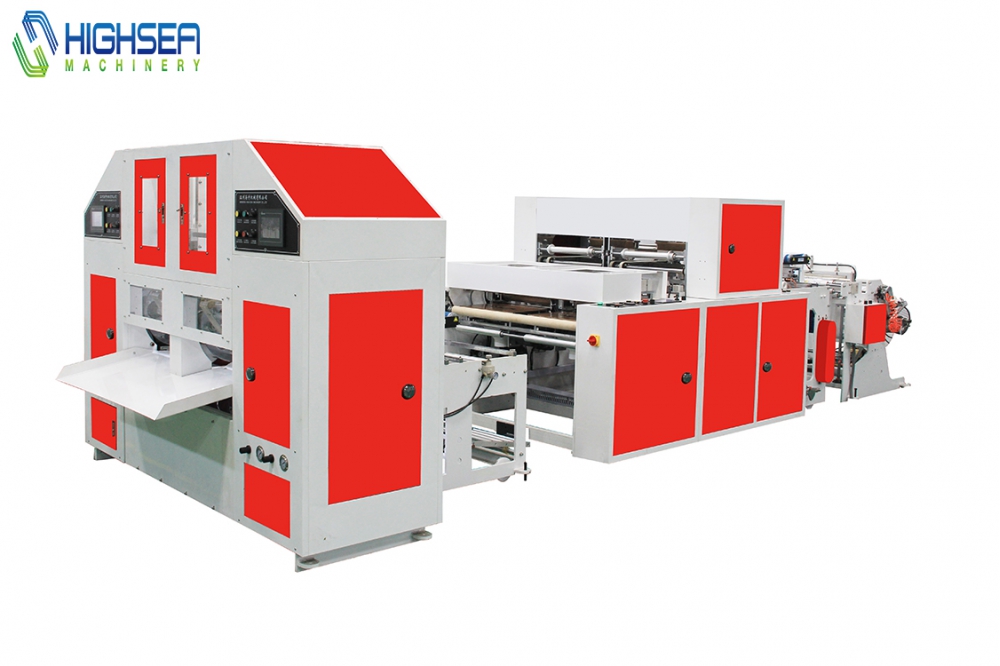

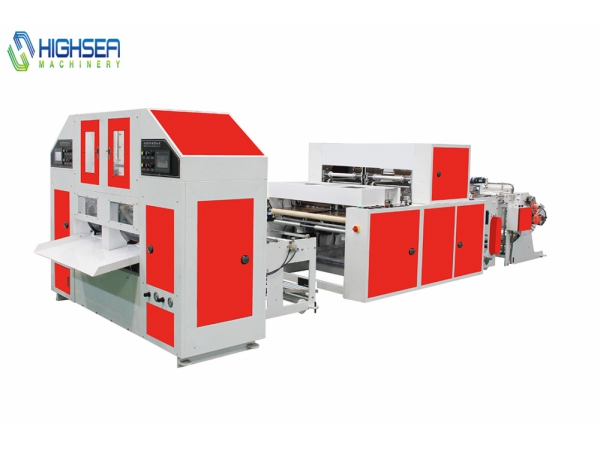

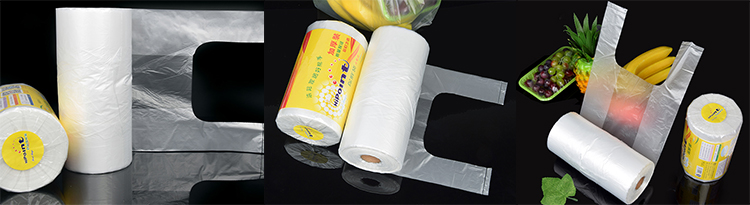

HSLB-450X2 is deigned for T-shirt bag-on-roll bags with core. The core can be paper material or PVC. Machine adopts rotary hob plate to cut film. The D-punch plate can be removed to make bottom sealing bag-on-roll bags. One machine two options. 8 servo motors control makes film feeding more stable and high speed.

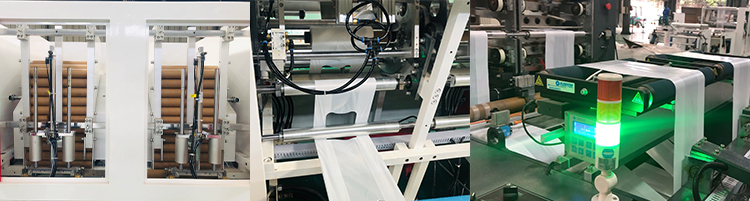

It’s automatic film-break and core-change functions help bag suppliers to improve bag making capacity at the most extent. Two photocells make printed bags tracking more precise. Film unwinder, sealing and rotary cutting, rewinding with core at last.
T-shirt bag rolls are most favored by the EURO and USA market, HIGH SEA designed machine are most welcomed by customers also.HIGH SEA, MAKE BAG FORMING MORE EASY.
Model | HSLB-450X2 |
Production Line | 2 Lines |
Bag Width | 200mm - 330 mm |
Bag Length | 330 mm (min) |
Film thickness | 10-35 micron per layer |
Production Speed | 100-150 pcs/min/line |
Roll Size | 160mm*330mm (Max.) |
Film Unwinder Diameter | Φ900*300mm |
Core Size | 25-65mm |
Total Power | 25KW |
Air consumption | 6HP |
Machine Weight | 4600KG |
Machine Dimension | L6500*W2400*H1900mm |
