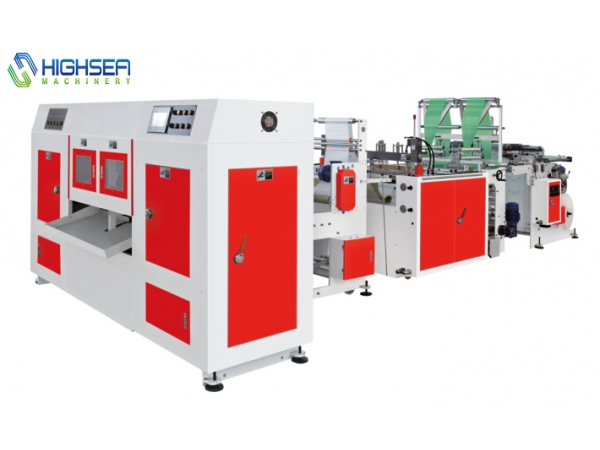

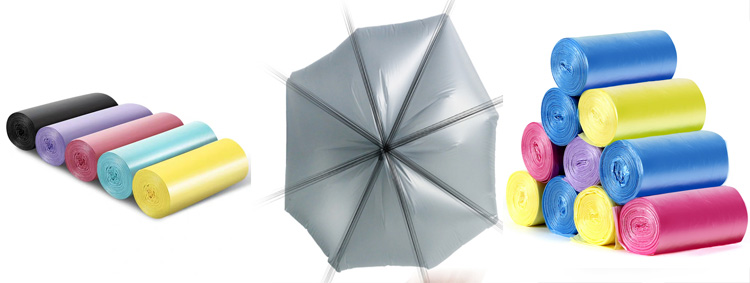

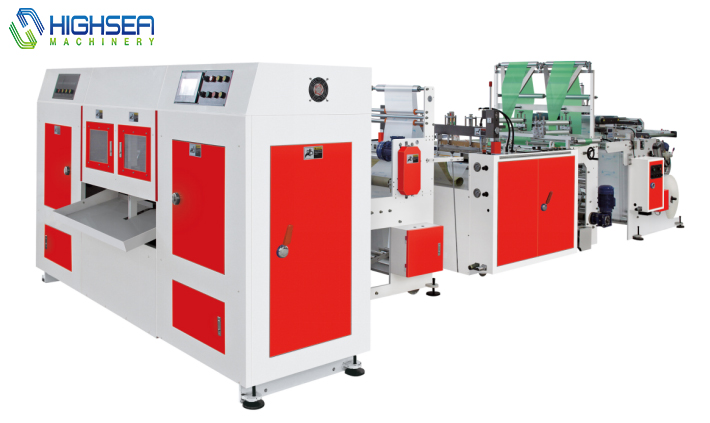

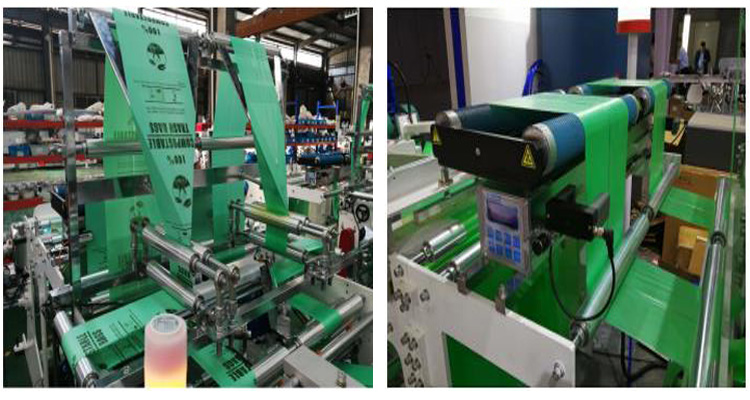

HSVZ-450X2 is a bag machine with triangle V-fold units in each line. After film is extruded with side gusset, the feeding film will be folded one time before it seal and perforate, so after the sealing, the bottom of bag will be star shape as photo shows.
HSVZ-450X2 can make garbage bags in efficient production by automatically changing plastic rolls. Machine equip V-fold units on each line. EPC devices will make bag rewinding more tight and in order. Process of bag making: Film unwinding first, then V-fold, seal and perforate, rewind in the last.
The Max. Bag roll width can reach to 300mm, it fits for the market garbage bags requirements.
HIGH SEA has good sale for this model bag machine, it also provide efficent production for customers.
HIGH SEA, MAKE BAG FORMING MORE EASY.
Model | HSVZ-450X2 |
Procedure | Film unwind and V-fold, seal and perforate, rewind in the last time (star sealing) |
Production Line | 2 Lines |
Number of layers | 8 |
Max. film width | 400 mm |
Max. Rewinder bag Width | 300 mm |
Bag Length | 200-1500 mm |
Film Thickness | 7-35µm per layer |
Production Speed | 80-100m/min |
Max.Rewinder Diameter | 120mm |
Total Power | 15KW |
Air consumption | 6HP |
Machine Weight | 3500KG |
Machine Dimension | L6000*W2400*H1900mm |
