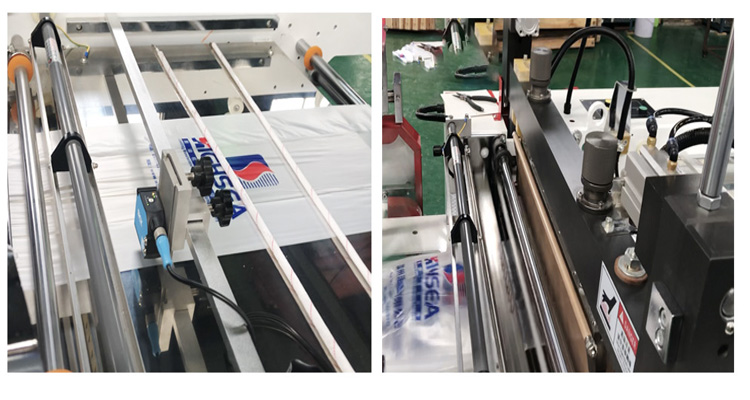

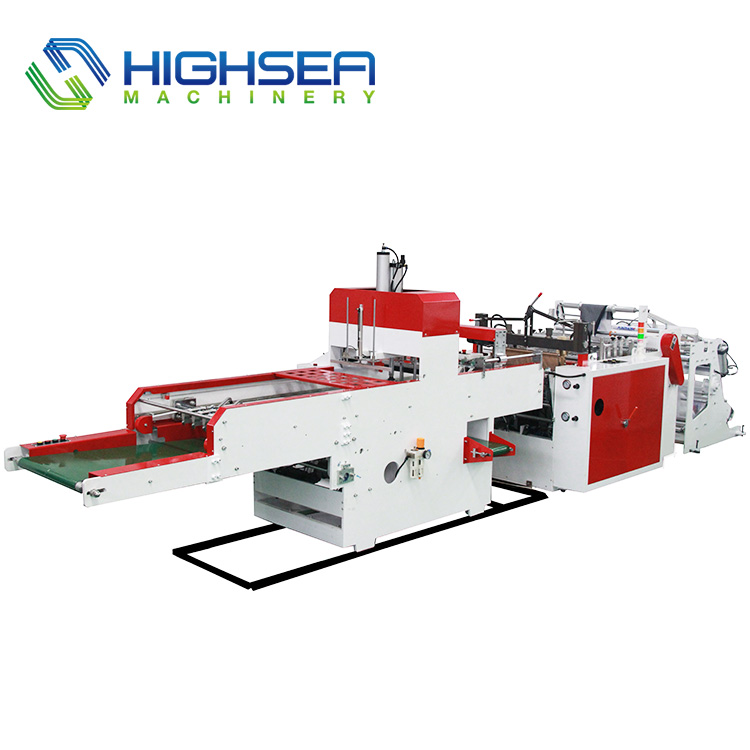

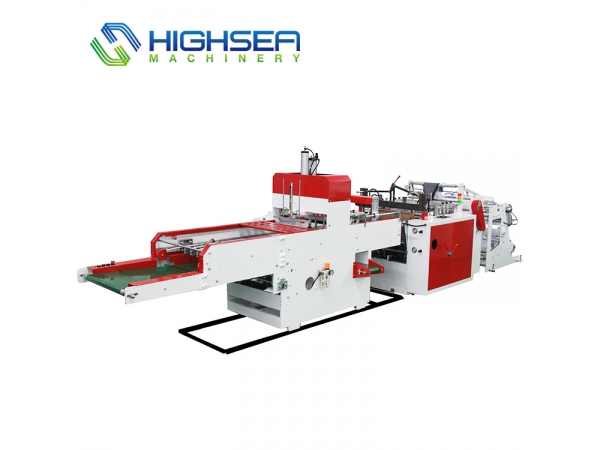

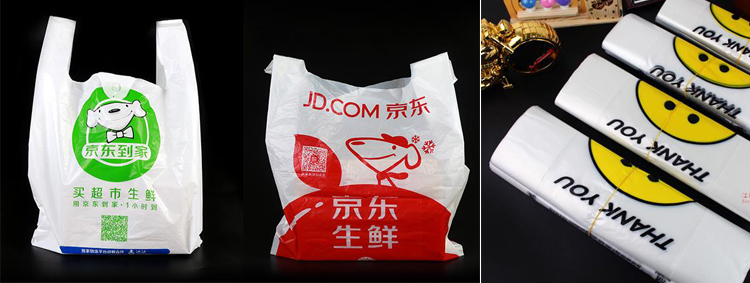

HSCG-600 is one line T-shirt plastic bag manufacturing machine which is good for produce big vest bag. Machine adopts sealing and cutting knives into one design to increase the sealing line very tight and strong.
The long punch unit allows machine to form 900mm length long T-shirt bags. It quit fit for bag production requirement.

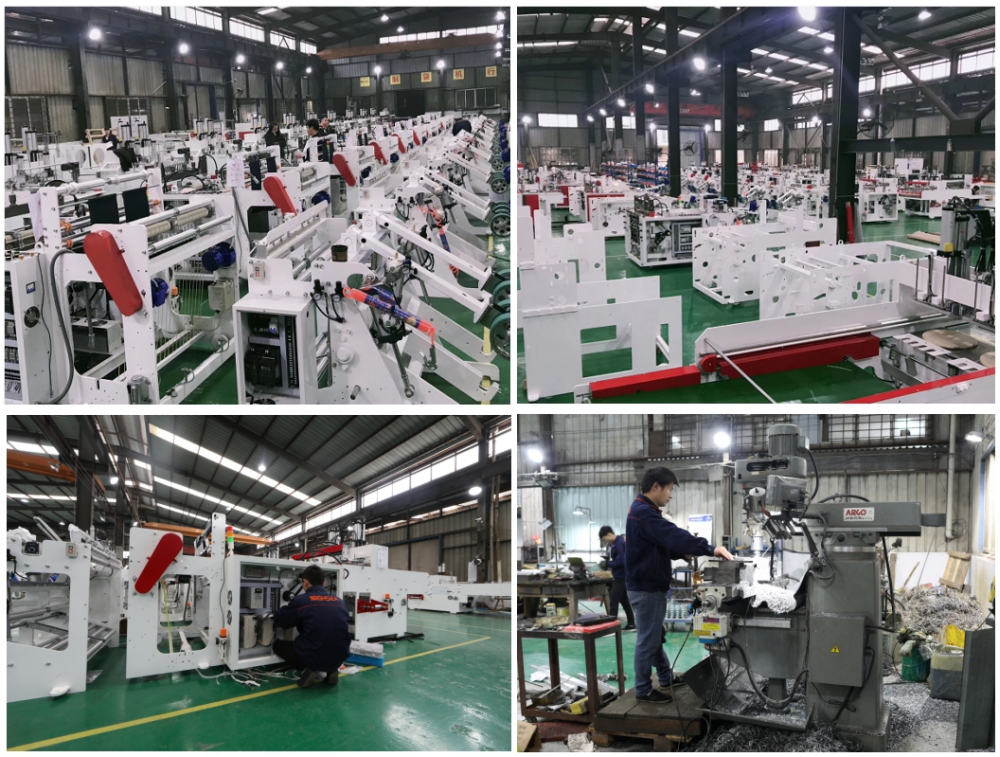

HIGH SEA MACHINERY is a factory specializing in plastic bag machine manufacturing for more than 20 years. This kind of T-shirt bags are our hot sale machines.HIGH SEA, MAKE BAG FORMING MORE EASY.
Model | HSCG-600 |
Bag Width | 300mm - 550 mm |
Bag Length | 350mm - 900 mm |
Film thickness | 10-55 micron per layer |
Production Speed | 100-300pcs/min X 1 Line |
Set Line Speed | 80-110m/min |
Film Unwind Diameter | Φ900mm |
Total Power | 11KW |
Air consumption | 2HP |
Machine Weight | 2500KG |
Machine Dimension | L7500*W1300*H1900mm |
