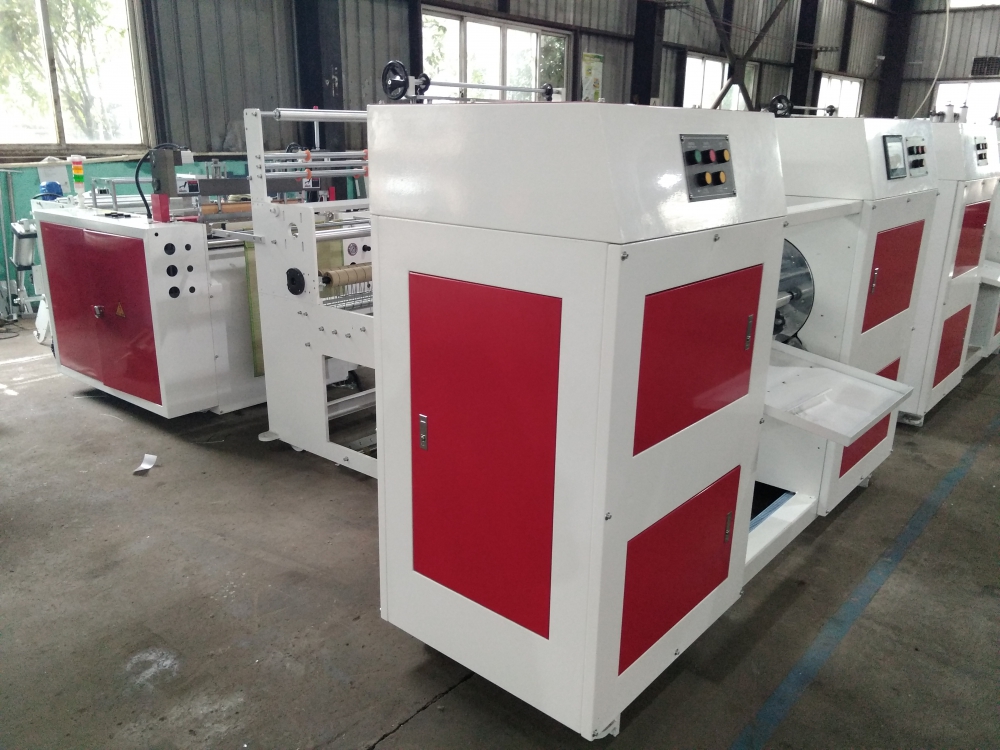

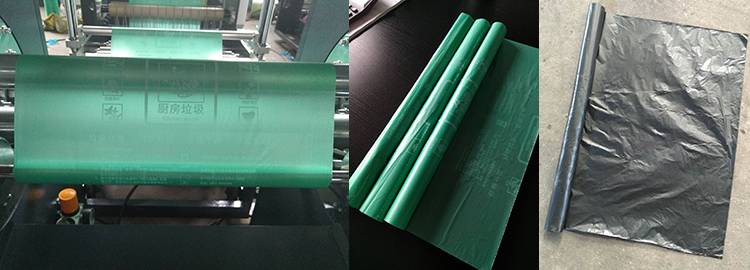

HSWX-700 is a machine with two options. When the temprature controller is turned on, machine will make bottom sealing bag rolls coreless, if temprature is turned off, machine will make table cover with perforation. Table cover is mostly using for middle east market. Table cover forming procedures: film unwind first, then seal and perforate and rewind in the last.
Machine can seal film with 2 layers or 4 layers or 8 layers, the max. Bag width is 600mm. Less than 600mm, bag roll all can be produced. It can make most products as market require.
HIGH SEA, MAKE BAG FORMING MORE EASY.
Model | HSWX-700 |

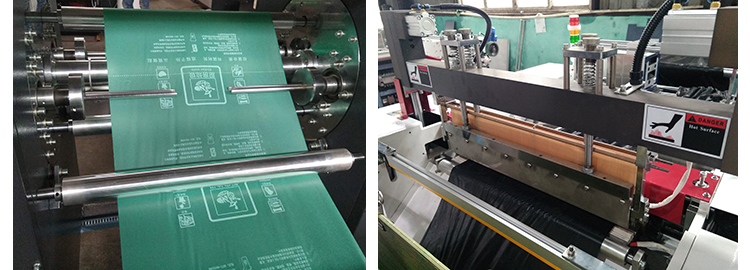

Procedure | Film unwinding first, then sealing and perforating,rewinding in the last |
Production Line | 1 Line |
Unwinder film width (MAX.) | 600 mm |
Rewinder bag Width (MAX.) | 400 mm |
Bag Width (MAX.) | 600 mm |
Bag Length | 300-1500 mm |
Film thickness | 7-35 micron per layer |
Production Speed | 80-100m/min |
Rewinder Diameter | 120mm (Max.) |
Total Power | 10KW |
Air consumption | 5HP |
Machine Weight | 2200KG |
Machine Dimension | L6500*W1800*H1700mm |
