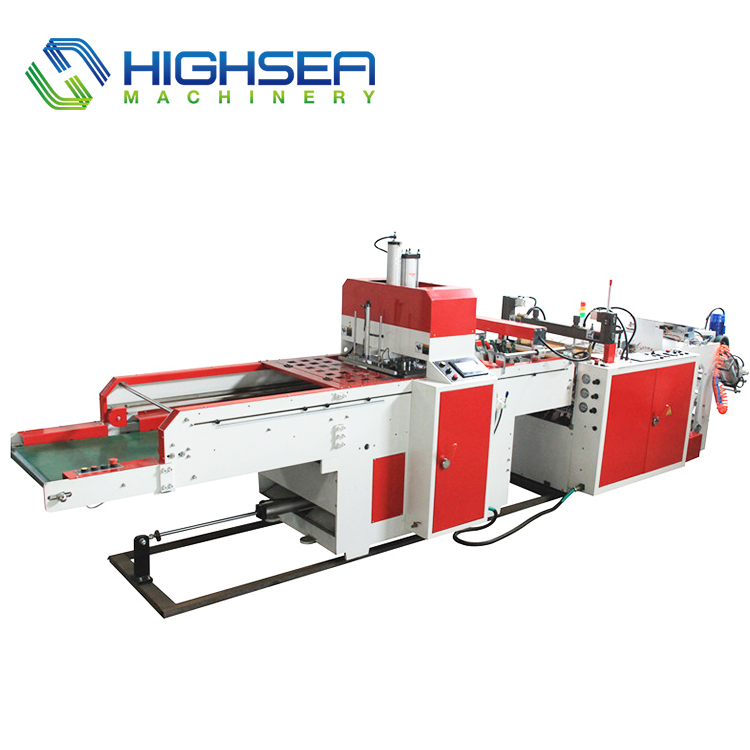

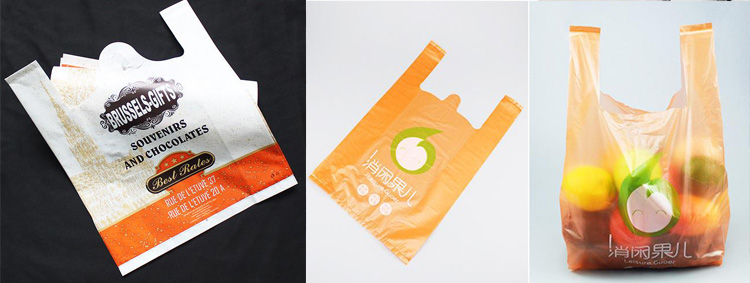

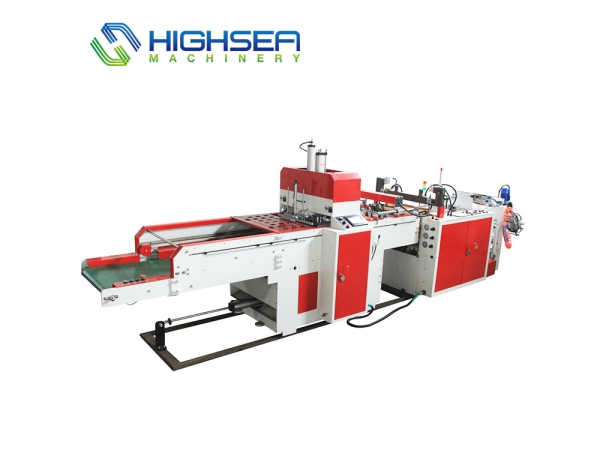

HSG-900 is specially design for 1 line high speed T-shirt big bag production . Machine is suitable for producing big plastic T-shirt bags in resonable speed and stable operation for 24 hours.

This is specially design by HIGH SEA MACHINERY factory, we have skillful technics to make this kind of automatic big bag making machine.

Model

HSG-900

Bag Width

400mm - 850 mm

Bag Length

400mm - 1200 mm

Film thickness

10-55 micron per layer

Production Speed

100-200pcs/min X 1 Line

Set Line Speed

60-80m/min

Film Unwind Diameter

Φ900mm

Total Power

12KW

Air consumption

2HP

Machine Weight

2700KG

Machine Dimension

L8000*W1500*H1900mm
