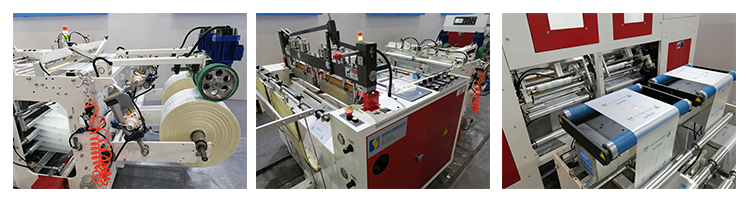

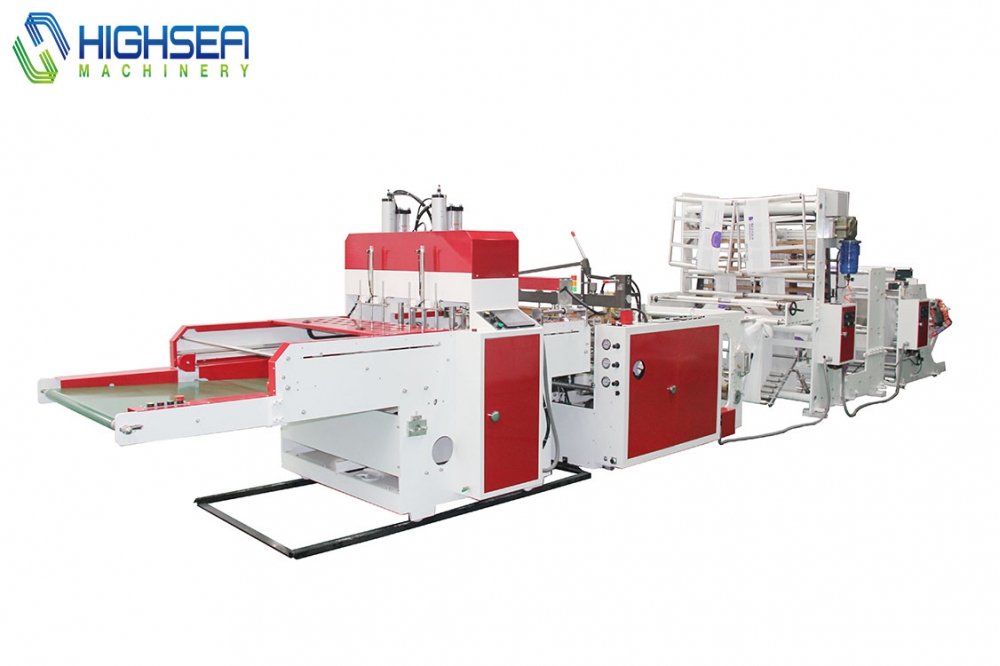

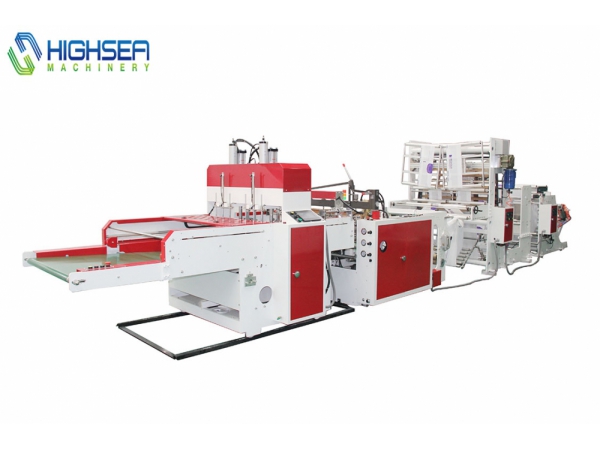

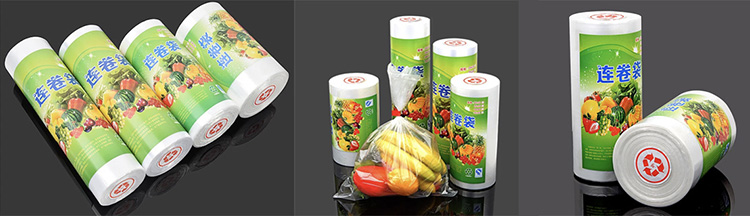

HSYX-450X2 is deigned for bag-on-roll bags with paper or PVC core production. It’s automatic film-break and core-change functions help bag suppliers to improve bag making capacity and to reduce energy and man power at the most extent. Its double servo motors control system makes producing more stable. It is the best choice for making bottom sealing printed bags and blank bags.
HIGH SEA designed this model of bag on roll making machine is mostly welcomed by customers and produce the bag on roll bags which is fit for market requirements. Fully automatic bag rolls production increase the efficient capacity. It helps to get more orders for its sealing and rewinding outcome, tight and in order.
HIGH SEA, MAKE BAG FORMING MORE EASY.
Model HSYX-450X2 HSYX-700 Production Line 2 Lines 1 Line Bag Width 200 mm - 400 mm 300 mm - 600 mm Bag Length 300-1000 mm 150-1000 mm Film thickness 7-35 micron per layer 7-35 micron per layer Production Speed 180-300pcs/min X 2lines 100-250pcs/min x 1line Set Line Speed 80-100m/min 80-100m/min Rewinder Diameter 180mm (Max.) 160mm (Max.) Film Unwind Diameter Φ900mm Φ900mm Total Power 15KW 12KW Air consumption 3HP 3HP Machine Weight 3500KG 3000KG Machine Dimension L6500*W1800*H1900mm L6500*W1500*H1900mm
